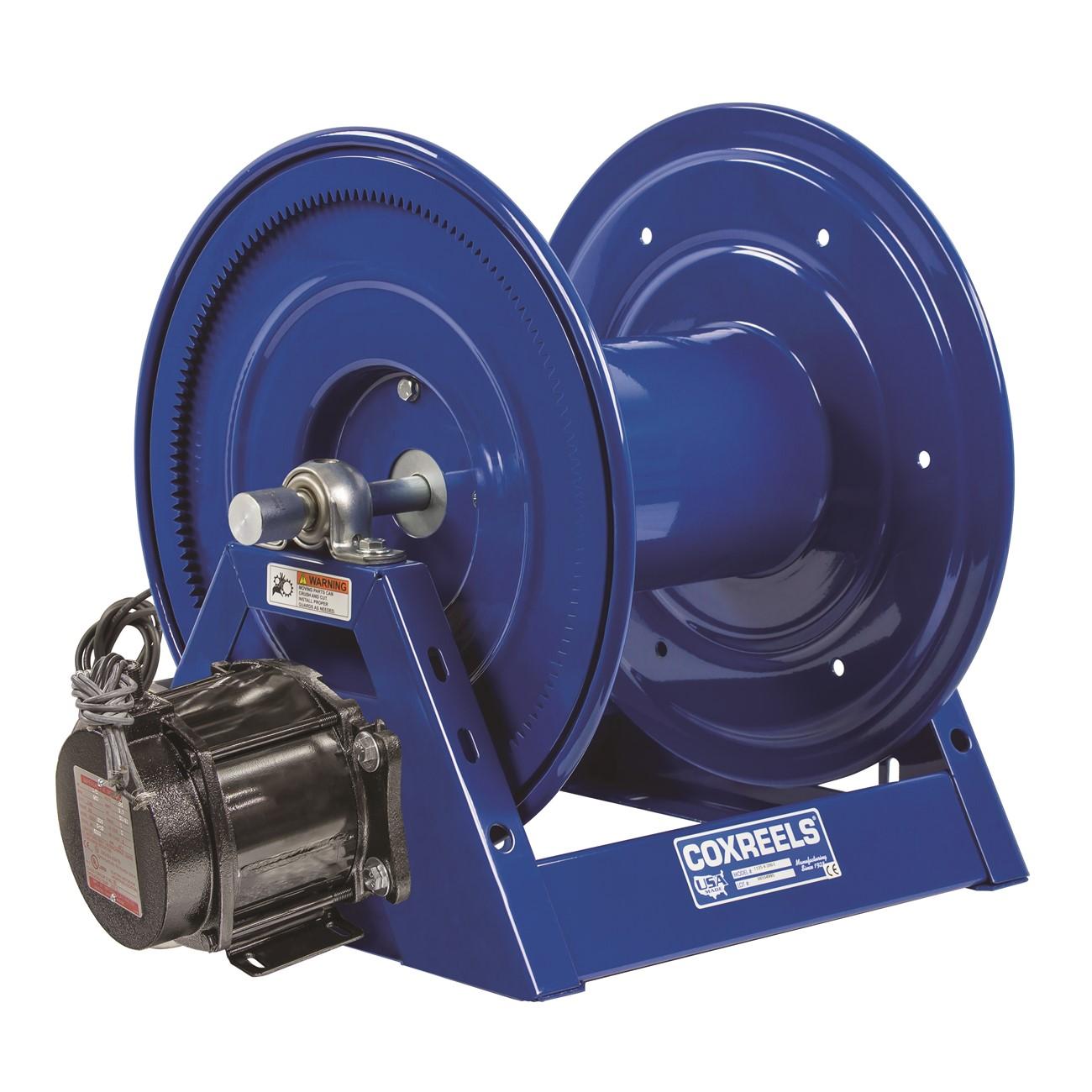

Coxreels 1125-4-200-EA-BYXX Storage Hose Reel Motor

Product Description

The COXREELS 1125-4-200-EA-BYXX is a motorized storage hose reel built for trade professionals who need to manage long lengths of hose, cord, cable, wire, rope, tape, or chain on stationary or mobile applications. The reel is powered by a 115-volt AC, 1/2 HP reversible AC rectified motor, giving operators controlled take-up and payout without manual cranking. The frame is constructed from 1/4-inch steel using a one-piece all-welded A-frame base design, and the discs are CNC robotically spun and ribbed with rolled edges for strength and operator safety. At 65 pounds, this is a heavy-duty unit intended for demanding storage and retrieval tasks in industrial, fleet, or field service environments.

This reel is suited for use in industrial facilities, fleet maintenance shops, construction sites, and service vehicles where reliable long-length material storage is required. It handles a wide variety of materials including hose, collapsible hose, power cord, cable, rope, barbed wire, tape, and chain. The motorized drive makes it practical for high-cycle or high-volume operations where manual retrieval would slow down workflow. The unit ships as a single reel assembly and is designed for either permanent mounting or mobile use.

Key Features

• 115-volt AC, 1/2 HP reversible AC rectified motor for powered take-up and payout
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 1/4-inch steel A-frame base with integrated mounting pattern for secure installation or detachment
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• CPC powder coat finish for chip resistance and rust inhibition in demanding environments

Compatibility

Designed as an OEM-style storage reel for stationary or mobile applications requiring motorized retrieval of hose, cord, cable, wire, rope, tape, chain, or similar long-length materials.

Installation Notes

Installation should be performed by a qualified electrician or mechanical technician familiar with 115-volt AC motor wiring and applicable NEC requirements. Disconnect and lock out all power before servicing the motor or drive components. Secure the A-frame base to a flat, load-rated mounting surface using the integrated mounting pattern prior to operation. Verify brake tension adjustment before placing the reel into service.

Technical Specifications

• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP
• Motor Type: Reversible AC rectified
• Frame Material: 1/4-inch steel, all-welded A-frame
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 65 pounds
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UOM: Each
• UPC: 674255840171

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-200-EA-BYXX
