Coxreels 1125-4-200-E-SP Stainless Steel Hose Reel 200 Ft

Product Description

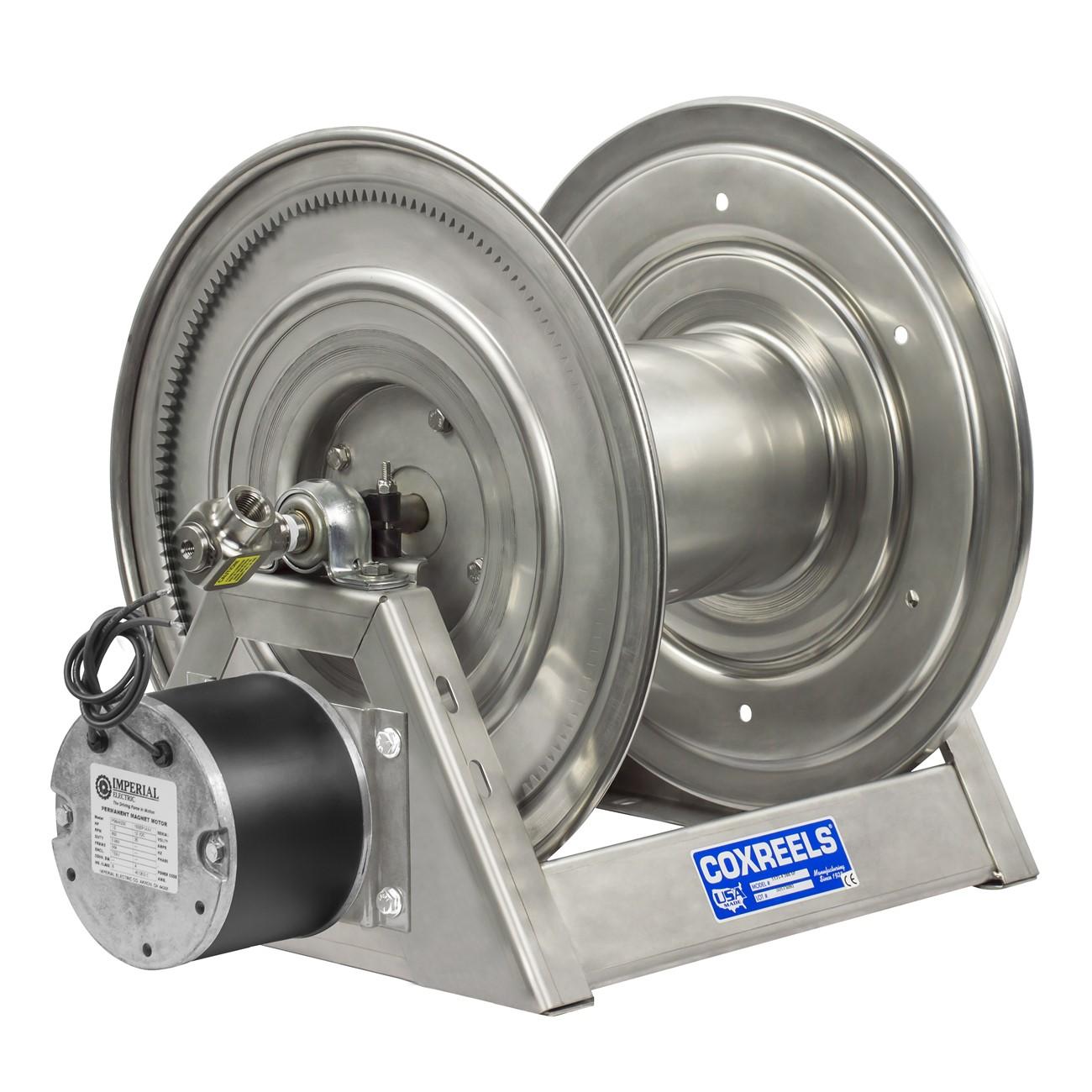

The COXREELS 1125-4-200-E-SP is a motorized stainless steel hose reel from the SS Series, designed for demanding industrial and commercial fluid-handling applications. It accommodates 1/2 inch ID hose up to 200 feet in length with a 7/8 inch OD. The reel is driven by a 12V DC, 1/3 HP reversible electric motor and constructed entirely of electro-polished stainless steel, including the fluid path. Licensed contractors and industrial maintenance technicians install this unit where corrosion resistance is a non-negotiable requirement. At 52 pounds, it is a heavy-duty unit built for permanent installation.

This hose reel is suited for food and chemical processing facilities, marinas, washdown stations, and any environment where rust, corrosion, or contamination are ongoing concerns. The all-stainless construction and electro-polished finish make it appropriate for both indoor and outdoor service in harsh or wet conditions. The motorized retraction eliminates manual cranking in high-cycle or physically demanding environments, reducing operator fatigue on long hose runs.

Key Features

• 12V DC, 1/3 HP reversible electric motor for powered hose retrieval
• Electro-polished stainless steel construction with stainless steel fluid path for non-corrosive, contamination-free service
• Machined stainless steel 90-degree full-flow NPT swivel inlet for leak-free rotation
• CNC robotically spun and ribbed stainless steel discs with rolled edges for hose protection and structural strength
• Exclusive low-profile stainless steel outlet riser with open drum slot for flat, non-crimping hose wrap
• One-piece CNC robotically welded 1/4 inch stainless steel A-frame base with integrated mounting pattern for rigid, bolt-free reel structure
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Adjustable tension brake prevents free-wheeling during hose deployment

Compatibility

Designed for use with 1/2 inch ID hose up to 200 feet in length in industrial fluid-handling systems requiring stainless steel construction, such as food processing, chemical handling, and marine environments.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed plumbing contractors. Mount to a structural surface capable of supporting the reel weight plus the weight of a fully loaded 200-foot hose. Disconnect and lock out all electrical power before wiring the 12V DC motor circuit, and follow applicable NEC guidelines for low-voltage motor connections. Ensure the inlet fitting is properly torqued to the supply line using appropriate thread sealant rated for the fluid being conveyed.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 200 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric
• Frame Construction: 1/4 inch stainless steel, CNC robotically welded one-piece A-frame
• Finish: Electro-polished stainless steel
• Weight: 52 pounds
• UPC: 674255852105

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-200-E-SP
