Coxreels 1125-4-200-E-BYXX Storage Hose Reel 12V Dc

Product Description

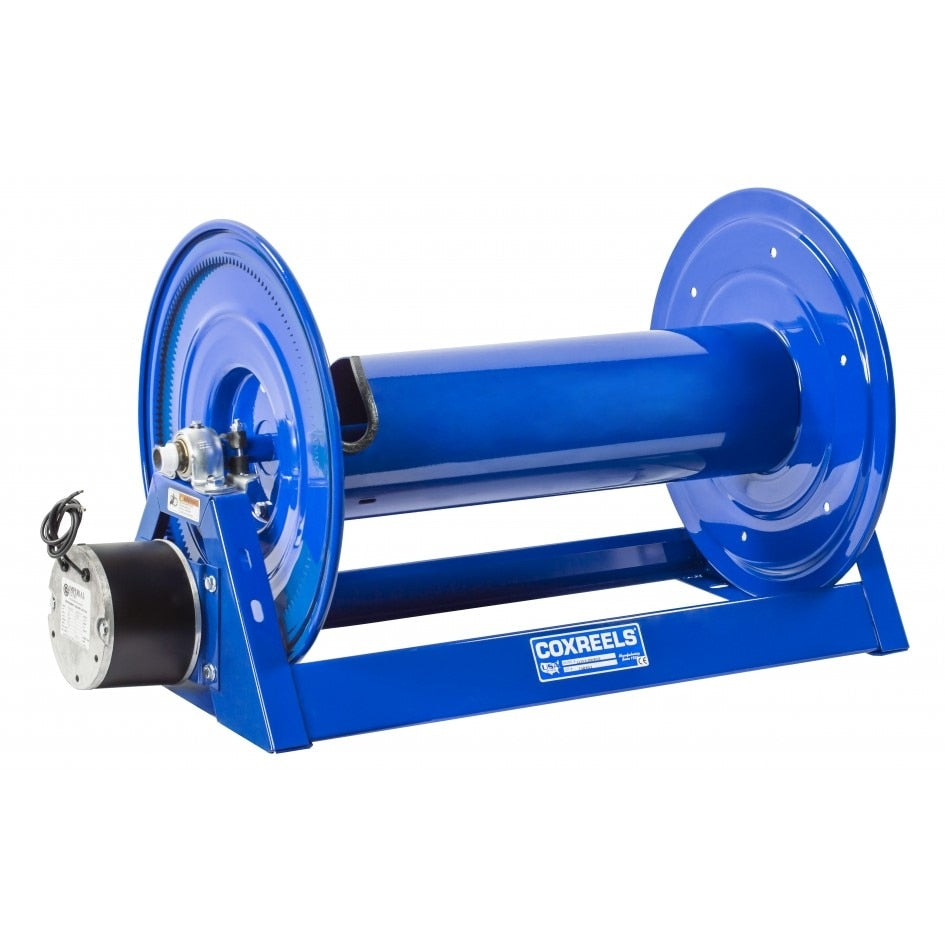

The COXREELS 1125-4-200-E-BYXX is a motorized storage hose reel built for trade professionals who need to store and manage long lengths of hose, cord, cable, rope, wire, tape, or chain. Unlike plumbed reels, this unit has no swivel and no riser, making it a dedicated storage solution. It is powered by a 12-volt DC, 1/3 HP reversible motor for powered pay-out and retrieval. The frame is constructed from 1/4-inch steel and robotically welded into a one-piece A-frame base. The discs are CNC-spun with ribbed surfaces and rolled edges for strength and operator safety. At 52 pounds, this is a heavy-duty unit suited for stationary or mobile installations in demanding work environments.

This storage reel is designed for industrial and commercial applications where large quantities of flexible material must be stored, transported, and deployed efficiently. Typical installations include service vehicles, shop floors, construction sites, and utility work areas. It handles hose, collapsible hose, power cord, cable, rope, barbed wire, tape, chain, and similar materials. The motorized drive reduces operator fatigue during repeated retrieval cycles. The A-frame base includes a mounting pattern for secure attachment to flat surfaces on stationary stands or mobile carts.

Key Features

• 12V DC, 1/3 HP reversible electric motor for powered spool-in and spool-out
• No swivel and no riser — dedicated storage reel configuration for long-length materials
• One-piece all-welded 1/4-inch steel A-frame base with integrated mounting pattern
• CNC robotically spun and ribbed discs with rolled edges for strength and operator safety
• Adjustable tension brake prevents free-wheeling during operation, transport, and storage
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation
• CPC powder coat finish for chip resistance and rust inhibition

Compatibility

Designed as an OEM-style storage reel for use with hose, cord, cable, rope, wire, tape, chain, and similar flexible materials on stationary or mobile platforms. No specific OEM replacement compatibility was stated in the product data.

Installation Notes

Installation should be performed by a qualified technician familiar with mechanical reel mounting and low-voltage DC wiring. Disconnect and lock out all power sources before mounting or servicing the unit. The A-frame base mounting pattern should be matched to a flat, structurally sound surface rated to support the reel weight plus the weight of the stored material. Low-voltage DC wiring to the motor should comply with applicable NEC requirements for the installation environment.

Technical Specifications

• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric
• Frame Material: 1/4-inch steel, all-welded A-frame
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 52 pounds
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Bearings: Permanently lubricated self-aligning pillow block
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-200-E-BYXX
