Coxreels 1125-4-200-C Hose Reel 1/2 Inch 200 Ft

Product Description

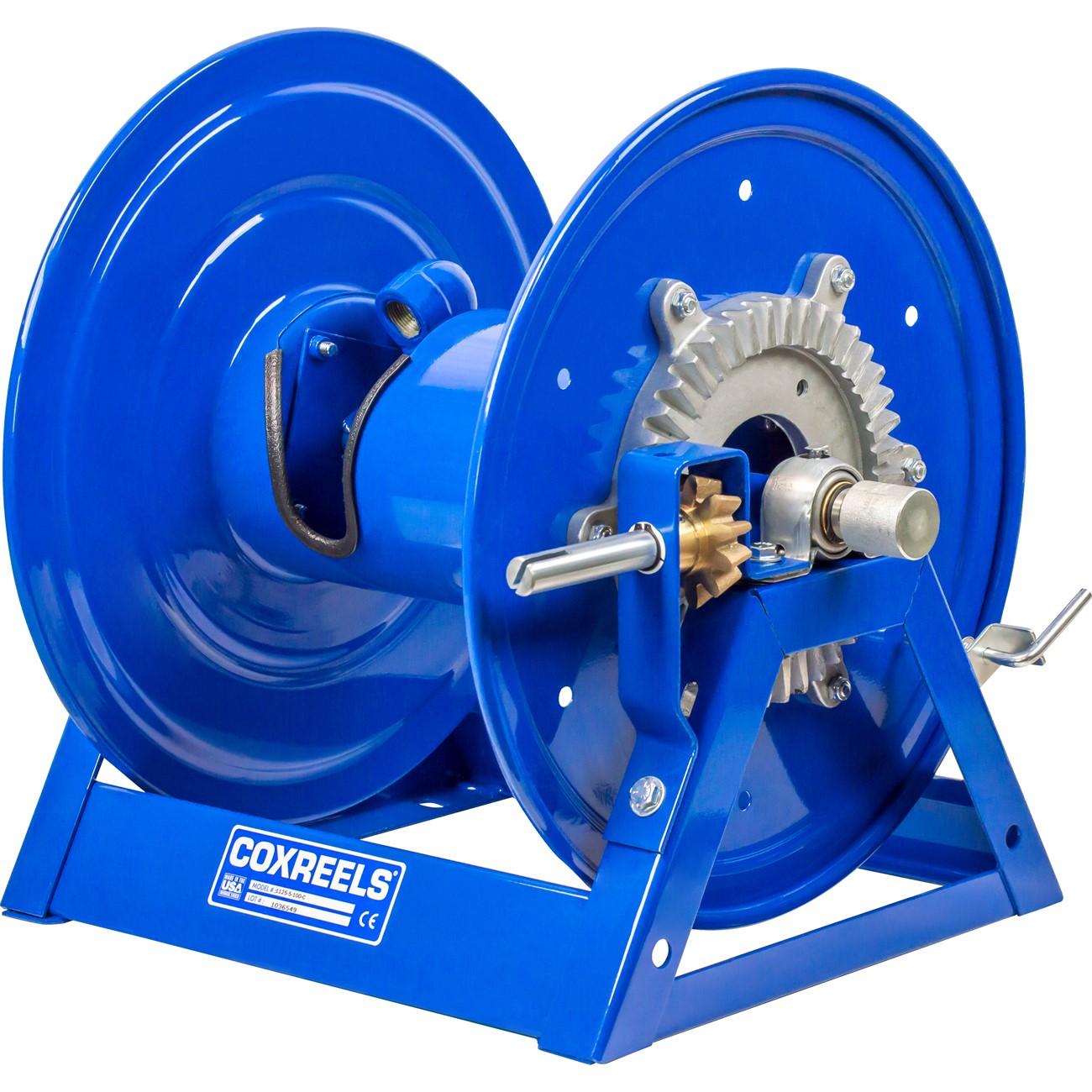

The COXREELS 1125-4-200-C is a heavy-duty hand crank hose reel from the 1125 Series, built for demanding industrial and trade applications. It accommodates hose with a 1/2 inch ID and 7/8 inch OD up to 200 feet in length. The reel is constructed on a one-piece all-welded 12-gauge steel A-frame base for rigid, stable mounting. A low-profile outlet riser and open drum slot design keep hose lying flat during wrap, preventing crimping and uneven coiling. Permanently lubricated, self-aligning pillow block bearings ensure smooth rotation across extended service cycles. The unit weighs 39 pounds and measures 25.5 inches long by 18 inches wide by 20 inches tall.

The 1125-4-200-C is suited for industrial maintenance, fluid transfer, and service bay applications where long hose runs and reliable retraction are required. The front bevel-geared hand crank provides controlled mechanical retraction without motorized components, making it a straightforward choice for fixed-station setups in shops, plants, and fleet service facilities. The CPC powder coat finish resists chipping and rust for extended service life in harsh environments.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity
• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth wrap
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth, trouble-free rotation
• Adjustable tension brake prevents free-wheeling; chip-resistant and rust-inhibiting CPC powder coat finish

Compatibility

Designed as an OEM-style replacement or direct installation unit for industrial and commercial hose reel applications accepting 1/2 inch ID hose up to 200 feet in length.

Installation Notes

Installation is typically performed by a licensed mechanic or qualified maintenance technician. Shut off all fluid supply and relieve line pressure completely before mounting or connecting the reel. The mounting pattern is located in the steel base for straightforward installation and detachment. Follow all applicable facility safety codes and manufacturer torque guidance for inlet and outlet fittings when making fluid connections.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 200 ft
• Frame Material: 12-gauge steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 39 pounds
• UPC: 674255853461

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-200-C
