Coxreels 1125-4-200-BYXX Storage Hose Reel Hand Crank

Product Description

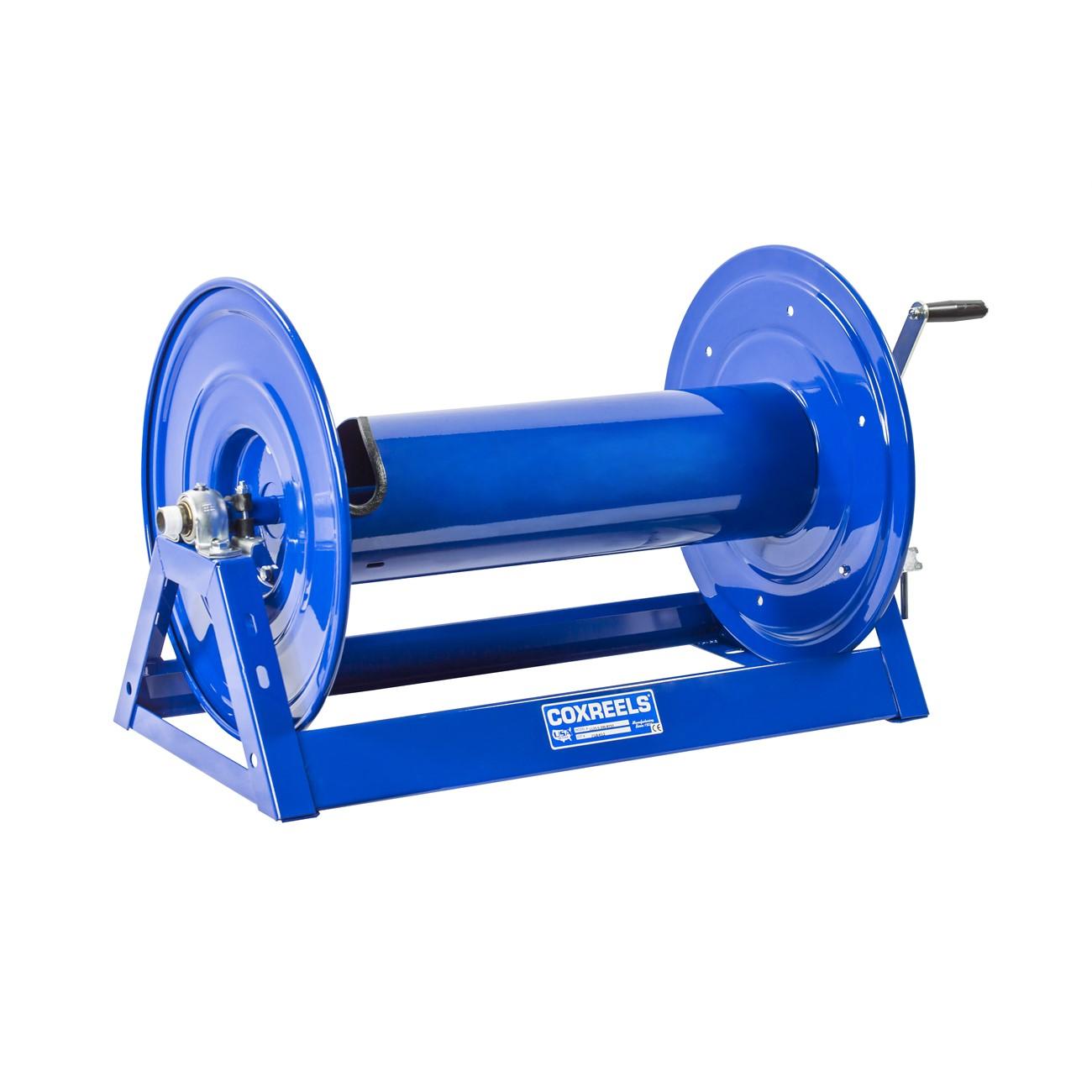

The COXREELS 1125-4-200-BYXX is a heavy-duty steel storage hose reel with a direct hand crank for mechanical retraction. Built on a one-piece all-welded A-frame base constructed from 1/4-inch steel, this reel is designed for stationary or mobile use in demanding industrial and trade environments. It features CNC robotically spun and ribbed discs with rolled edges for added structural strength and operator safety. The adjustable tension brake prevents free-wheeling during operation, transport, and storage. Licensed contractors, maintenance technicians, and field service crews rely on this reel for organized, efficient storage of long-run materials.

The 1125-4-200-BYXX is suited for storing and managing extended lengths of hose, collapsible hose, power cord, cable, rope, wire, barbed wire, tape, and chain. It is appropriate for both stationary installations and mobile units, making it a practical choice for job sites, service vehicles, facilities maintenance, and industrial settings where reliable long-length material management is required.

Key Features

• No swivel and no riser design dedicated to storage and maintenance of long-length materials
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• One-piece all-CNC-welded 1/4-inch steel A-frame base with integrated mounting pattern for easy installation and removal
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• Permanently lubricated, self-aligning pillow block bearings for smooth and trouble-free rotation
• CPC powder coat finish resists chipping, rust, and corrosion for long service life

Compatibility

Designed as a storage reel for use with hose, cord, cable, rope, wire, barbed wire, tape, chain, and similar long-length flexible materials on stationary or mobile platforms.

Installation Notes

Installation is typically performed by maintenance technicians or equipment handlers. Mount the reel using the integrated mounting pattern in the steel base, ensuring the mounting surface can support the loaded weight of the reel and stored material. Power down or de-energize any associated equipment before connecting or disconnecting power cords or cables. Follow all applicable facility and OSHA guidelines for equipment mounting and safe load limits.

Technical Specifications

• Material: Steel
• Retraction Type: Hand Crank
• Frame Type: One-Piece All-Welded A-Frame, 1/4-inch Steel
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 39 pounds
• Finish: CPC Powder Coat
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-200-BYXX
