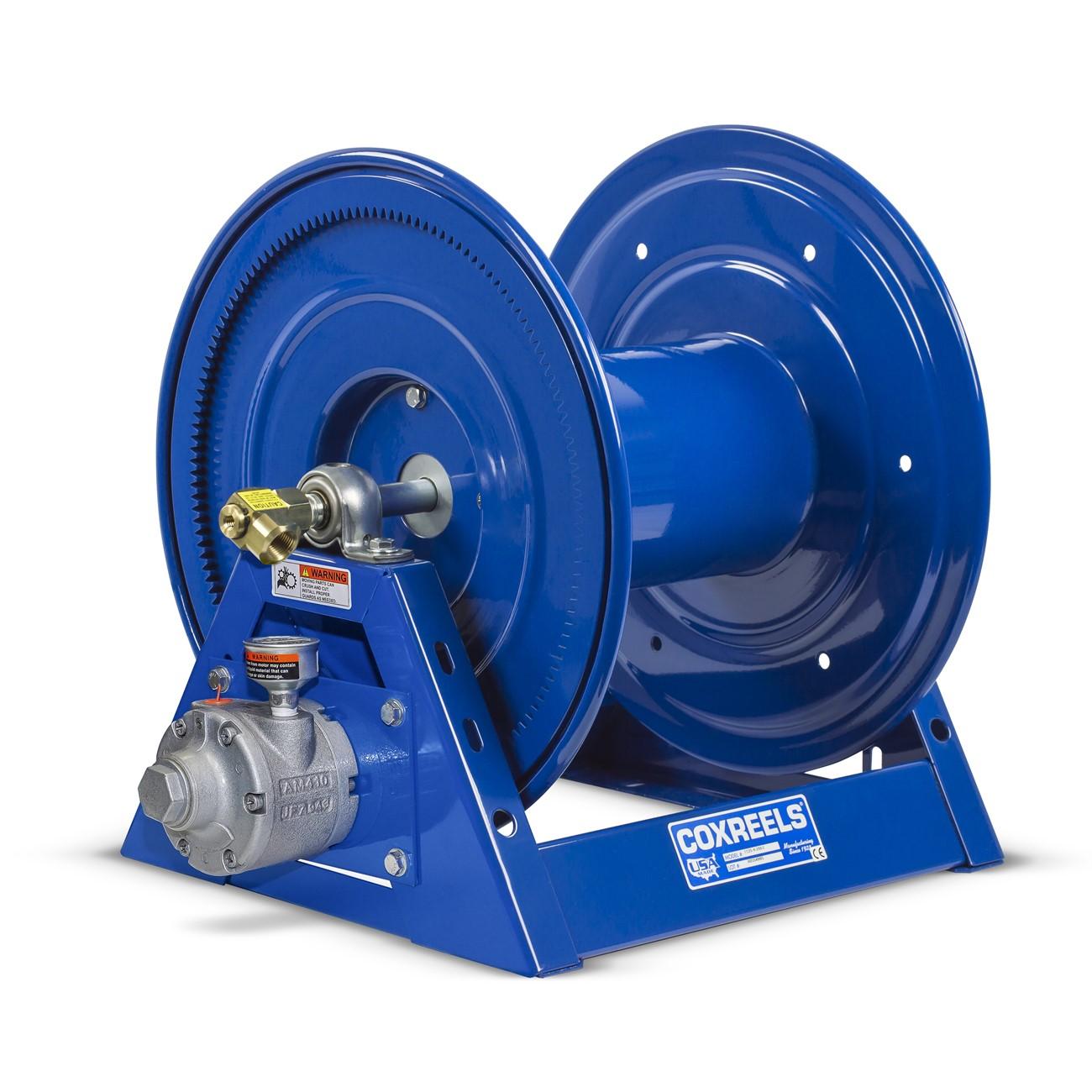

Coxreels 1125-4-200-AB Hose Reel 1/2 Inch 200 Ft

Product Description

The COXREELS 1125-4-200-AB is a heavy-duty hose reel from the 1125 Series, designed for industrial and commercial hose management applications. It accommodates hose with a 1/2 inch ID and 7/8 inch OD at a 200 ft capacity, making it suited for demanding fluid or air distribution tasks. The reel features a one-piece all-welded steel A-frame base, a low-profile outlet riser, and an open drum slot design that promotes flat, smooth hose wrap without crimping. A machined solid brass 90-degree full-flow NPT swivel enables simple seal maintenance without removing the reel from its mount. Licensed trades and industrial maintenance professionals are the primary installers.

The 1125-4-200-AB is built for professional use in industrial plants, service garages, construction sites, and other environments requiring reliable hose deployment and retraction over extended service cycles. The motorized option paired with hand-crank capability gives installers flexibility in high-use settings. The open drum slot and low-profile riser design reduce hose wear during repeated wrap and unwrap cycles, extending hose service life in continuous-use applications. No specific compatible model list is provided in the product data.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base provides superior structural rigidity without bolted joints
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose replacement without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for enhanced strength, durability, and operator safety
• Low-profile outlet riser and open drum slot design delivers non-crimping, flat smooth hose wrap
• Permanently lubricated, self-aligning pillow block bearings support smooth rotation and long service life
• CPC powder coat finish resists chips and rust for extended service in harsh environments

Compatibility

Designed as an OEM-style replacement or direct installation hose reel for industrial and commercial fluid or compressed-air distribution systems requiring 1/2 inch ID hose with up to 200 ft capacity.

Installation Notes

Installation should be performed by a qualified maintenance technician or plumbing professional familiar with hose reel mounting requirements. Shut off fluid or air supply and relieve line pressure completely before connecting or disconnecting hose fittings. Secure the reel to a structurally sound mounting surface using the base mounting pattern as a template, following applicable facility and OSHA guidelines. Do not exceed the hose or reel rated working pressure for the selected hose assembly.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 200 ft
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed with rolled edges
• Bearing Type: Permanently lubricated self-aligning pillow block
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 47 pounds
• UPC: 674255858299

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-200-AB
