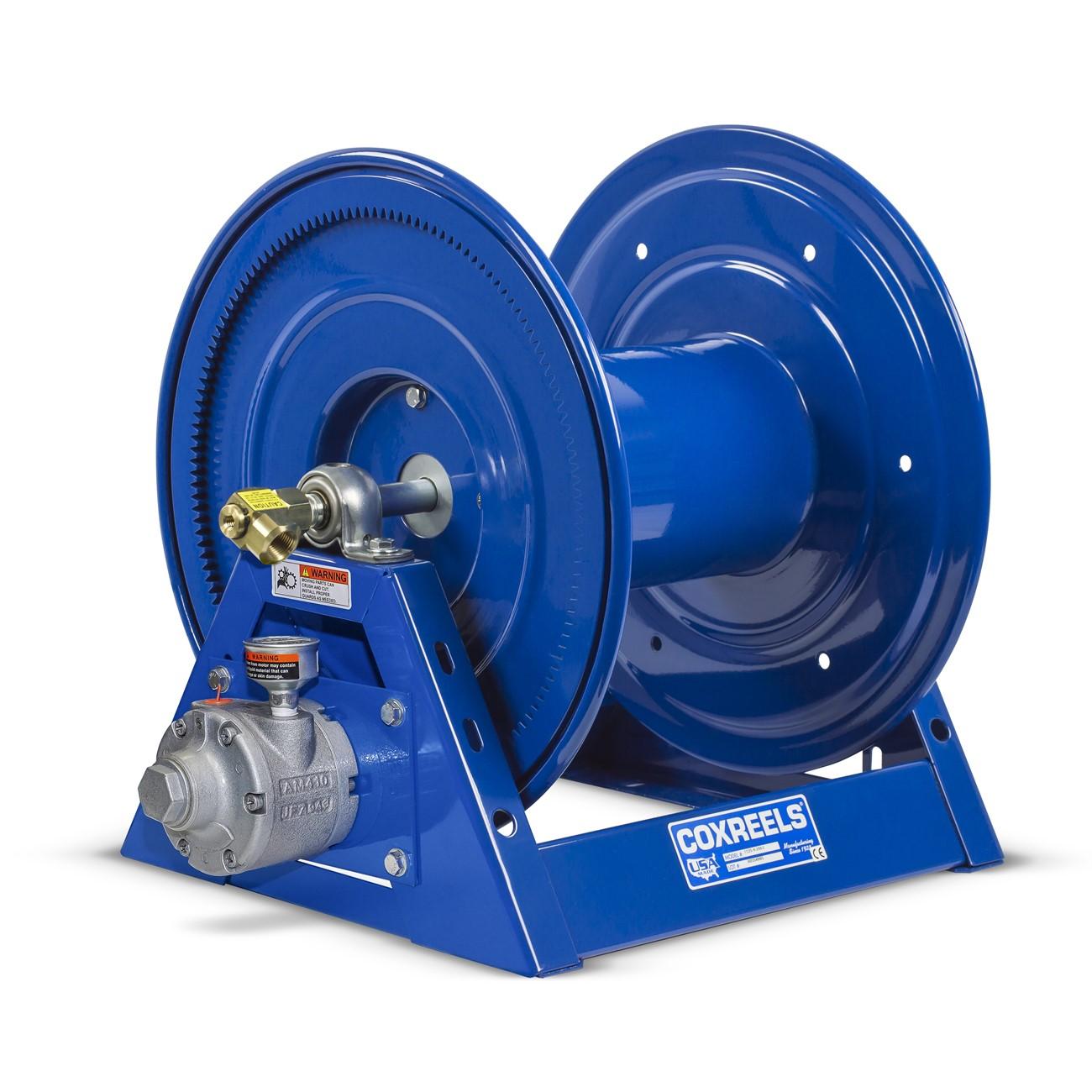

Coxreels 1125-4-200-A Hose Reel 1/2 Inch Id 200 Ft

Product Description

The COXREELS 1125-4-200-A is a heavy-duty hose reel from the 1125 Series, designed for demanding industrial and trade applications. It accommodates 1/2 inch ID hose with a 7/8 inch OD up to 200 feet in length. The unit features a one-piece, all-welded A-frame base constructed from 12-gauge steel, a low-profile outlet riser, and an open drum slot design that promotes a flat, non-crimping hose wrap. Available in hand crank and motorized configurations, this reel is built for stationary or vehicle-mounted service use by maintenance technicians, contractors, and industrial service professionals.

The 1125-4-200-A suits a wide range of industrial and commercial service environments where reliable hose management is required. Typical applications include fluid transfer, air supply lines, and wash-down stations in shop, fleet, or field service settings. The reel is sold as a single unit and is appropriate for both permanent installation and semi-permanent mounting scenarios where frequent hose deployment and retrieval occur throughout a work shift.

Key Features

• One-piece all-welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Low-profile outlet riser and open drum slot design for flat, non-crimping hose wrap
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed as an OEM-style replacement or direct-fit reel for industrial hose management systems accepting 1/2 inch ID hose up to 200 feet in length with standard NPT swivel connections.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid or compressed air system requirements. Depressurize and drain the connected hose line before mounting or servicing the reel. Mounting hardware should be fastened securely to a flat, load-bearing surface using the integrated steel base mounting pattern. Consult applicable OSHA and local mechanical codes for hose reel mounting and pressure-line safety requirements.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 200 feet
• Frame Material: 12-gauge steel, all-welded construction
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 47 pounds
• UPC: 674255822481

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-200-A
