Coxreels 1125-4-100 Hose Reel 1/2 Inch Id 100 Ft

Product Description

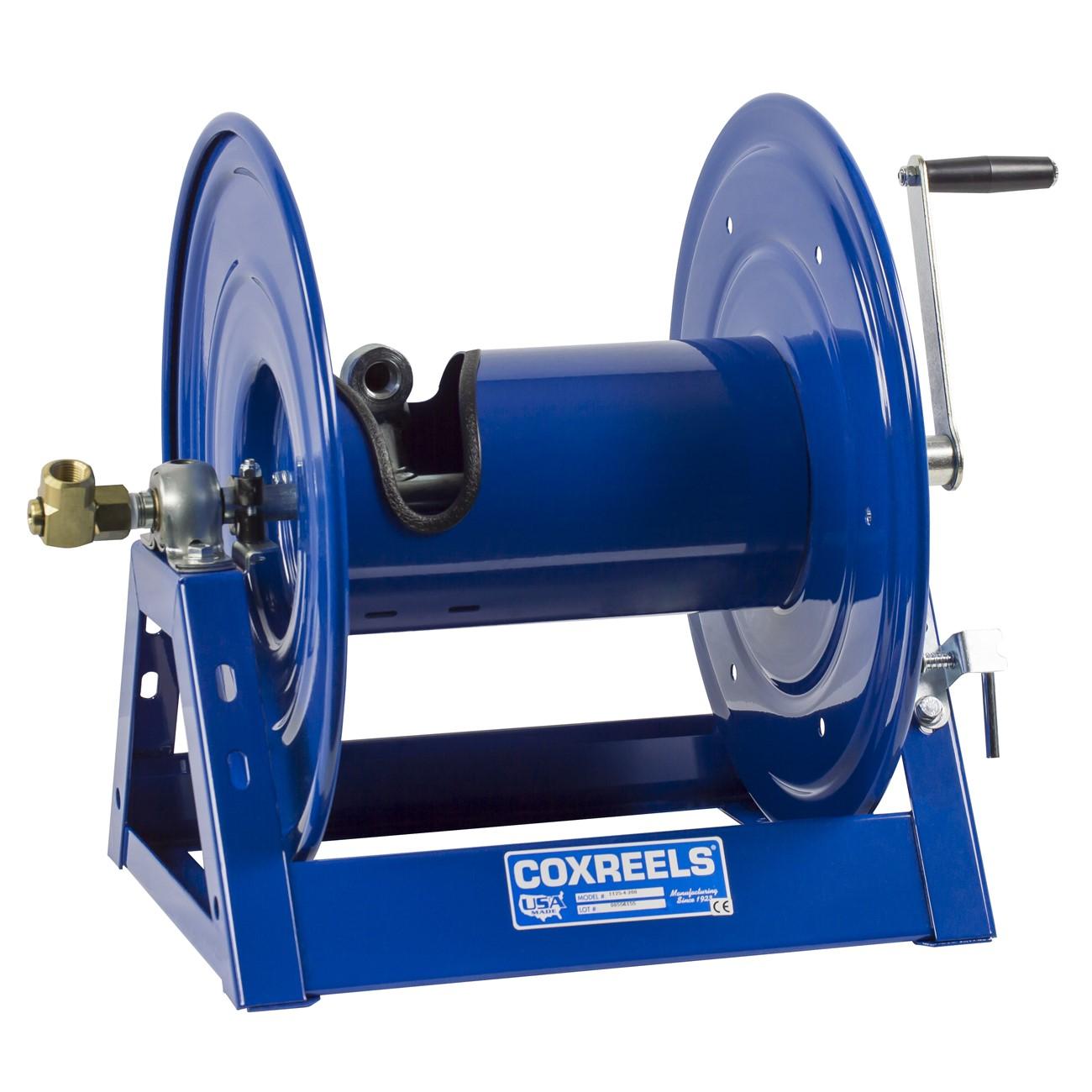

The COXREELS 1125-4-100 is a hand crank hose reel from the 1125 Series, designed for demanding industrial and trade applications. It features a one-piece all-welded 12-gauge steel A-frame base for rigid, bolt-free construction, a machined solid brass 90-degree full-flow NPT swivel, and an exclusive low-profile outlet riser with an open drum slot design that delivers a flat, non-crimping hose wrap. Permanently lubricated, self-aligning pillow block bearings ensure smooth rotation over repeated use. The reel accepts 1/2 inch ID hose up to 100 feet in length and ships at 36 pounds.

The 1125-4-100 is suited for commercial and industrial environments where consistent hose management and reliable mechanical retraction are required. Typical applications include shop air lines, fluid transfer, and general-purpose hose deployment in automotive, manufacturing, and maintenance settings. The direct hand crank allows controlled, manual retrieval without power. An adjustable tension brake prevents free-wheeling during payout.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base — no bolted joints, superior structural rigidity
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth wrap
• Heavy-duty CNC spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth, trouble-free rotation
• CPC powder coat finish — chip resistant and rust inhibiting for long service life
• Adjustable tension brake prevents free-wheeling; direct hand crank for easy mechanical retraction

Compatibility

Designed for use with 1/2 inch ID hose up to 100 feet in length. Compatible with standard NPT hose and fitting connections typical of industrial air and fluid service applications.

Installation Notes

Installation is typically performed by maintenance technicians or qualified trade professionals. Shut off and depressurize the supply line before connecting or disconnecting the swivel inlet. Secure the reel to a rigid mounting surface using the integrated base mounting pattern. Follow applicable facility safety and pressure-system codes when placing the reel into service.

Technical Specifications

• Hose Inside Diameter: 1/2 inch
• Hose Outside Diameter: 7/8 inch
• Hose Capacity: 100 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 36 pounds
• Sold As: Each
• UPC: 674255822191

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-100
