Coxreels 1125-4-100-E-SP Stainless Steel Hose Reel 100 Ft

Product Description

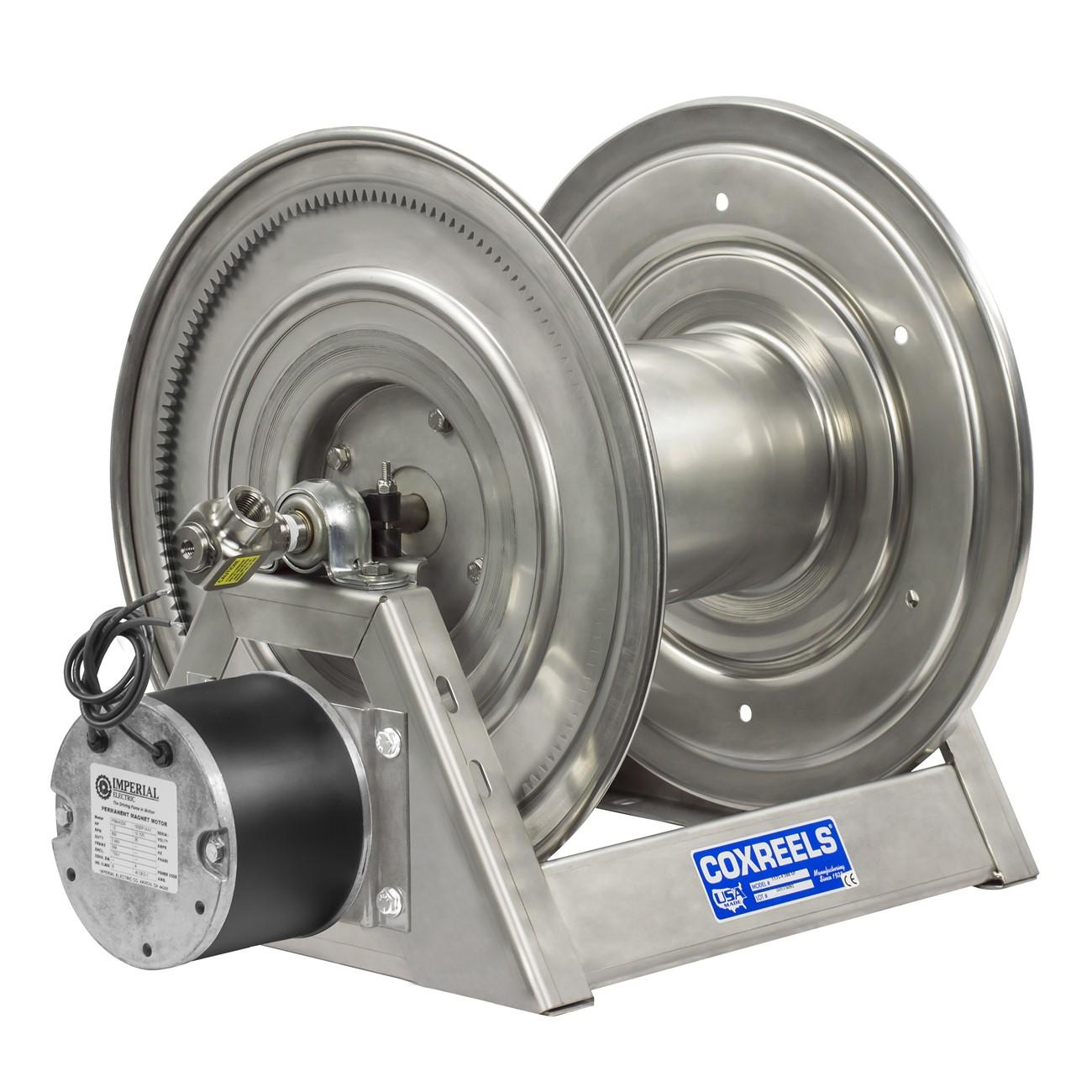

The COXREELS 1125-4-100-E-SP is a motorized stainless steel hose reel built for demanding industrial and commercial fluid-handling applications. It features a 12-volt DC, 1/3 HP reversible motor for powered retrieval and a 1/2-inch ID hose capacity rated for 100 feet of hose. The entire fluid path and structural frame are constructed from high-quality electro-polished stainless steel, providing corrosion-resistant performance where standard carbon steel reels would fail. A 90-degree full-flow NPT swivel inlet and pillow block bearing system keep operation smooth and leak-resistant during continuous use. This reel weighs 49 pounds and is sold individually.

The 1125-4-100-E-SP is designed for environments where corrosion, contamination, or washdown conditions are constant concerns. Typical applications include food and beverage processing facilities, chemical handling operations, marinas, and marine dock environments. The stainless steel construction satisfies hygiene and non-contamination requirements common in food service and chemical processing installs. Licensed plumbers, industrial maintenance technicians, and facilities professionals are the primary installers of this class of reel.

Key Features

• 12V DC, 1/3 HP reversible motor for powered hose retrieval
• Full electro-polished stainless steel construction with stainless steel fluid path
• Machined stainless steel 90-degree full-flow NPT swivel inlet for non-corrosive external fluid path
• Heavy-duty CNC robotically spun and ribbed stainless steel discs with rolled edges for hose protection and operator safety
• One-piece CNC robotically welded 1/4-inch stainless steel A-frame base with integrated mounting pattern for easy installation
• Permanently lubricated, self-aligning pillow block bearings and adjustable tension brake to prevent freewheeling

Compatibility

Designed for use with 1/2-inch ID hose up to 100 feet in length across food processing, chemical handling, marina, and industrial fluid-transfer installations requiring corrosion-resistant stainless steel construction.

Installation Notes

Installation should be performed by a qualified plumber or industrial maintenance technician familiar with fluid-handling equipment. Shut off the fluid supply and disconnect the 12V DC power source before mounting or servicing the reel. The base mounting pattern is integrated into the A-frame for direct fastening to a fixed surface. Verify hose end fittings and inlet connections are compatible with the fluid type and pressure rating of the system before commissioning.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 100 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric
• Frame Material: 1/4-inch stainless steel, CNC robotically welded
• Disc Material: Stainless steel, CNC spun and ribbed
• Swivel Inlet: 90-degree full-flow NPT stainless steel
• Finish: Electro-polished stainless steel
• Weight: 49 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-100-E-SP
