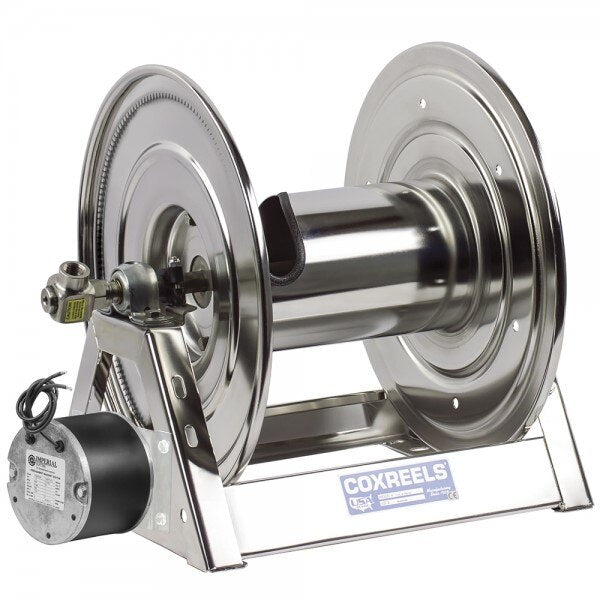

Coxreels 1125-4-100-A-SP Stainless Steel Hose Reel 100 Ft

Product Description

The COXREELS 1125-4-100-A-SP is a heavy-duty stainless steel hand crank hose reel designed for demanding fluid-handling applications where corrosion resistance and hygiene are critical. Built around an electro-polished stainless steel construction with a fully stainless fluid path, this reel handles 1/2 inch ID hose up to 100 feet in length. A machined 90-degree full-flow NPT stainless swivel inlet maintains a clean, non-corrosive external fluid path. Permanently lubricated, self-aligning pillow block bearings provide smooth rotation under repeated daily use. This unit is suited for licensed trades and facilities technicians working in environments where standard steel or aluminum components would corrode or contaminate the media being conveyed.

The 1125-4-100-A-SP is used across food and chemical processing facilities, marinas, agricultural operations, and any wash-down or fluid-transfer environment where rust, corrosion, and contamination are ongoing concerns. The reel accommodates 1/2 inch ID hose with a 7/8 inch OD over a 100-foot length, making it a practical fit for mid-range fluid delivery runs in both indoor and outdoor installations. An adjustable tension brake prevents free-wheeling during hose payout. The exclusive low-profile stainless outlet riser and open drum slot design promotes a flat, non-crimping hose wrap, extending hose service life in high-cycle applications.

Key Features

• Electro-polished stainless steel construction with stainless steel fluid path for non-corrosive, contamination-free performance
• Machined stainless steel 90-degree full-flow NPT swivel inlet for leak-resistant, high-flow connection
• CNC robotically spun and ribbed stainless steel discs with rolled edges for structural strength and hose protection
• One-piece CNC robotically welded 1/4 inch stainless steel A-frame base with integrated mounting pattern for rigid, bolt-free structure
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Adjustable tension brake prevents free-wheeling during hose deployment

Compatibility

Designed for use with 1/2 inch ID, 7/8 inch OD hose up to 100 feet in length. Part of the COXREELS 1125-SS Series of stainless steel hand crank hose reels for corrosive and sanitary fluid-handling environments.

Installation Notes

Installation is typically performed by a licensed plumber, industrial maintenance technician, or facilities professional. Shut off all upstream fluid supply and depressurize the hose and line before mounting or connecting the reel. The integrated A-frame base mounting pattern allows direct surface mounting; ensure fasteners are rated for the installation environment and substrate. Follow applicable plumbing codes and the facility's lockout/tagout procedures before beginning any service work on the reel or connected piping.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Length: 100 feet
• Frame Material: Stainless steel, 1/4 inch wall, CNC robotically welded one-piece A-frame
• Disc Construction: CNC robotically spun and ribbed stainless steel with rolled edges
• Finish: Electro-polished stainless steel (standard unpolished as-manufactured finish also noted)
• Bearings: Permanently lubricated, self-aligning pillow block bearings
• Weight: 44 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-100-A-SP
