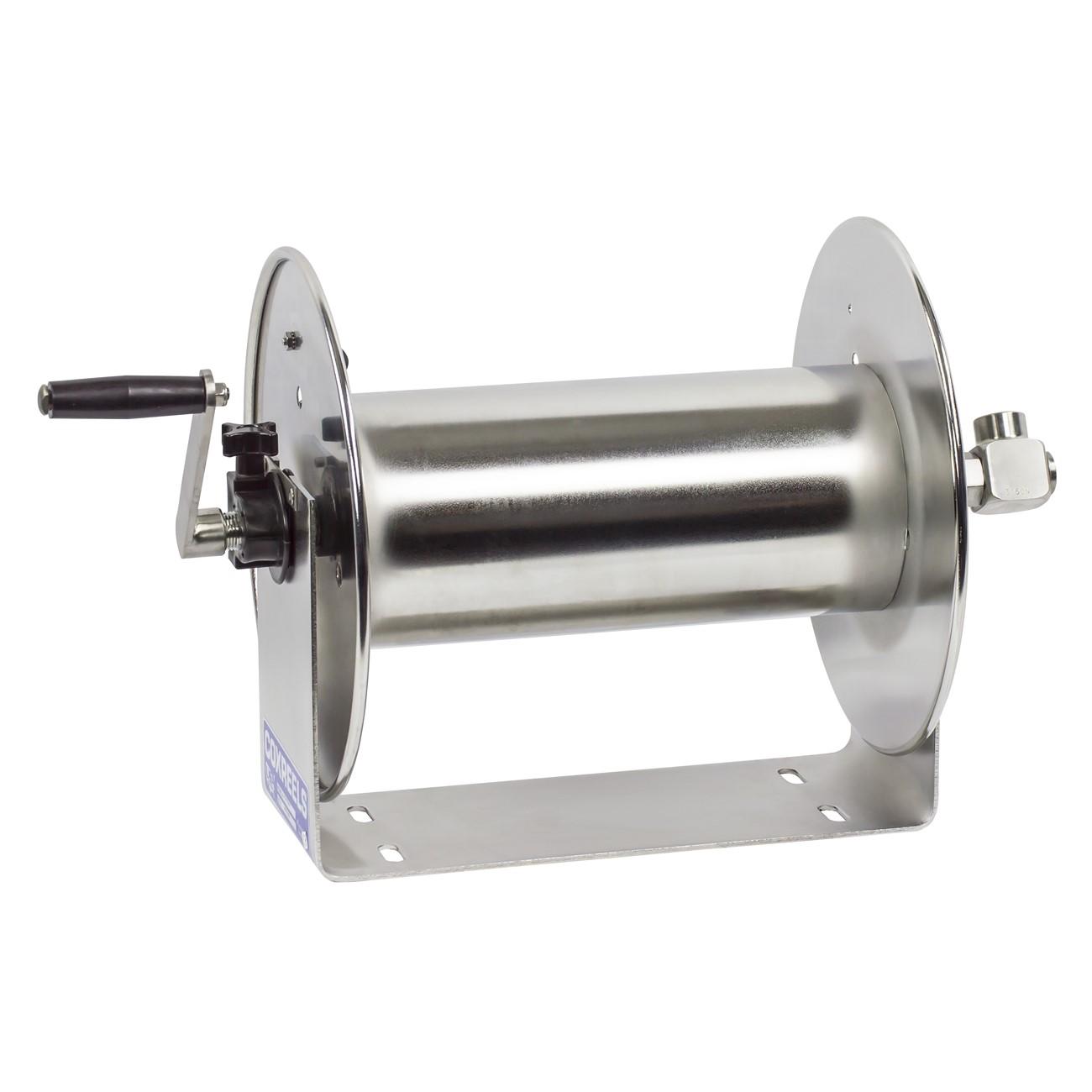

Coxreels 112-4-75-SS Stainless Steel Hose Reel 1/2 in 75 Ft

Product Description

The COXREELS 112-4-75-SS is a stainless steel hand crank hose reel built for demanding environments where corrosion, rust, and contamination are ongoing concerns. Part of the COXREELS 100-SS Series, this reel features an electro-polished stainless steel frame and a stainless steel fluid path, keeping media isolated from corrosive or reactive materials. It accommodates hose with a 1/2 inch inner diameter and 7/8 inch outer diameter up to 75 feet in length. The unit weighs 21 pounds and measures 20.75 inches long, 12.5 inches wide, and 13.5 inches tall. Licensed HVAC, plumbing, and industrial service technicians install this reel in commercial and industrial fluid-handling systems.

The 112-4-75-SS is suited for applications where sanitary or chemical-resistant construction is required. Typical environments include food and chemical processing facilities, marinas, and any setting where water, chemicals, or high humidity create rust and contamination risks. The fully stainless steel construction — frame, discs, and fluid path — makes this reel an appropriate choice wherever a standard carbon steel or powder-coated reel would corrode or contaminate the conveyed media. The hand crank drive provides direct mechanical retraction without powered components.

Key Features

• Electro-polished stainless steel U-shaped one-piece frame for corrosion resistance and structural rigidity
• Stainless steel fluid path with machined 90-degree full-flow NPT swivel inlet for non-corrosive external connection
• Heavy-duty stainless steel CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls retraction speed and prevents free-wheeling during operation, transport, and storage
• Direct hand crank mechanism provides simple, reliable mechanical hose retraction with no power source required
• Accepts 1/2 inch ID hose up to 75 feet in length

Compatibility

Designed as an OEM-style replacement or direct-install hose reel for commercial and industrial fluid-handling systems requiring 1/2 inch ID hose connections in corrosion-prone environments.

Installation Notes

Installation is typically performed by licensed plumbing or industrial maintenance professionals. Shut off all fluid supply and relieve line pressure completely before mounting or connecting the reel. Secure the reel to a structurally adequate surface using appropriate hardware rated for the reel weight and anticipated hose load. Verify all NPT fittings are properly sealed and that the swivel inlet connection meets local plumbing or facility codes before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 75 feet
• Length: 20.75 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 21 pounds
• Material: Electro-polished stainless steel
• Drive Type: Hand crank
• Inlet Type: 90-degree full-flow NPT swivel
• UPC: 674255800243

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112-4-75-SS
