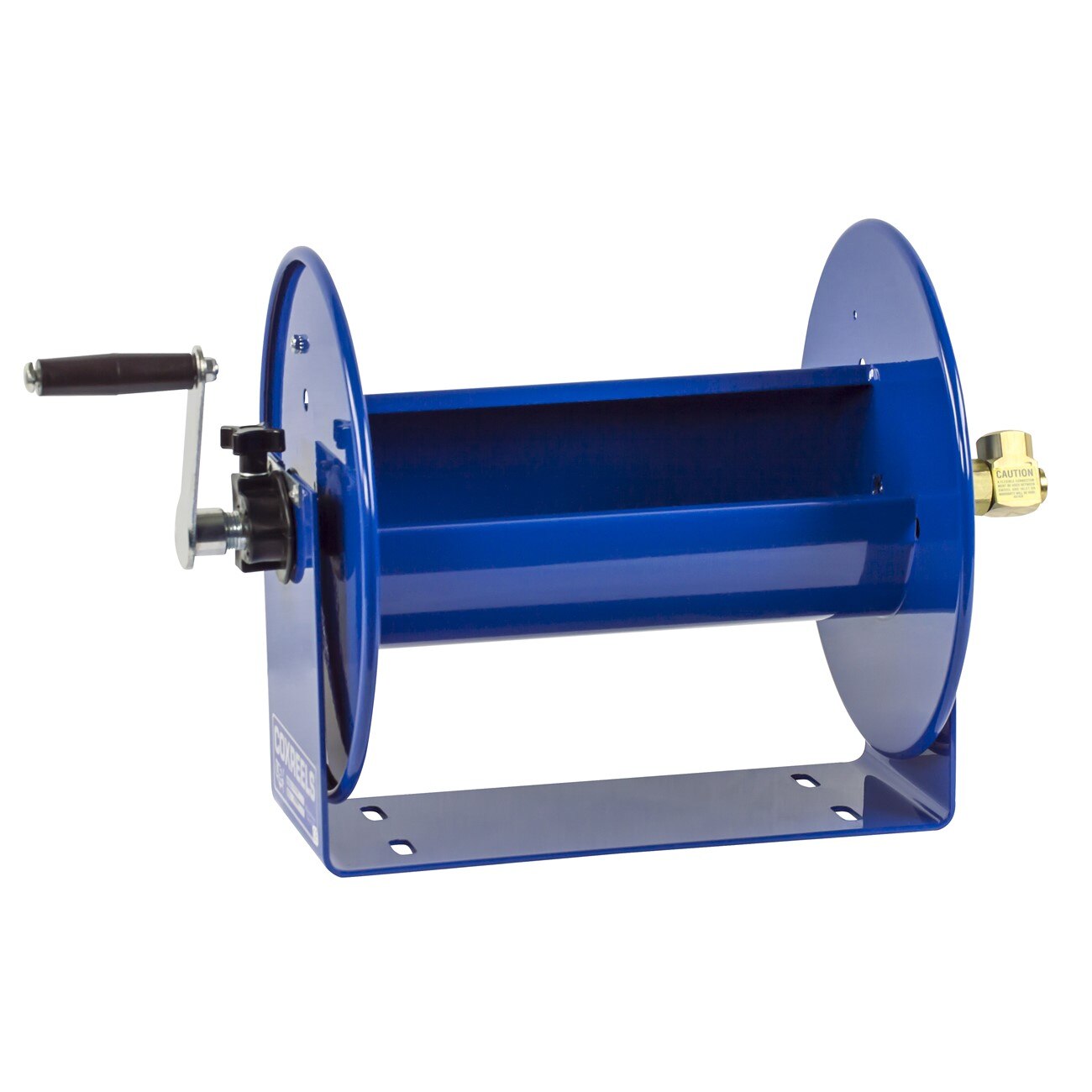

Coxreels 112-4-75 Hand Crank Hose Reel 1/2 in 75 Ft

Product Description

The COXREELS 112-4-75 is a 100 Series hand crank hose reel built from all-steel construction for use in commercial and industrial applications. Rated to a working pressure of 4,000 psi, it accepts 1/2 inch ID hose up to 75 feet in length. The one-piece U-shaped steel frame keeps the unit compact and lightweight without sacrificing durability. A machined solid brass 90-degree full-flow NPT swivel simplifies seal maintenance and allows hose installation without removing the reel from its mount. Licensed HVAC technicians, plumbers, and industrial service professionals install this reel where reliable high-pressure hose management is required. Supplied less hose.

The 112-4-75 is suited for stationary or portable service setups in commercial and industrial environments. Its compact footprint, measuring 20.75 inches in length, 12.5 inches in width, and 13.5 inches in height, makes it practical for service vans, shop walls, and job-site installations. The reel handles demanding duty cycles where repeated hose extension and retraction under pressure is routine. The direct hand crank provides mechanical retraction without dependence on powered return systems, making it reliable in field conditions with no power source available.

Key Features

• Rated to 4,000 psi working pressure for heavy-duty commercial and industrial service
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without dismounting the reel
• One-piece heavy-gauge all-steel U-shaped frame for strength and compact form factor
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• CPC powder coat finish provides chip resistance and rust inhibition for extended service life

Compatibility

Designed as an OEM-style replacement or direct-install hand crank hose reel for 1/2 inch ID hose applications in commercial and industrial service systems rated to 4,000 psi. Supplied less hose; compatible hose is selected and installed separately by the technician.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified industrial service professional. Depressurize and drain the supply line completely before connecting or disconnecting the swivel fitting. Mount the reel to a structurally sound surface capable of supporting the reel weight plus the loaded hose assembly. Follow applicable ASME and local mechanical codes when installing high-pressure hose reel assemblies.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 75 feet
• Working Pressure: 4,000 psi
• Length: 20.75 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 21 pounds
• Material: Steel
• Swivel Material: Solid Brass
• Finish: CPC Powder Coat
• UPC: 674255800229

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112-4-75
