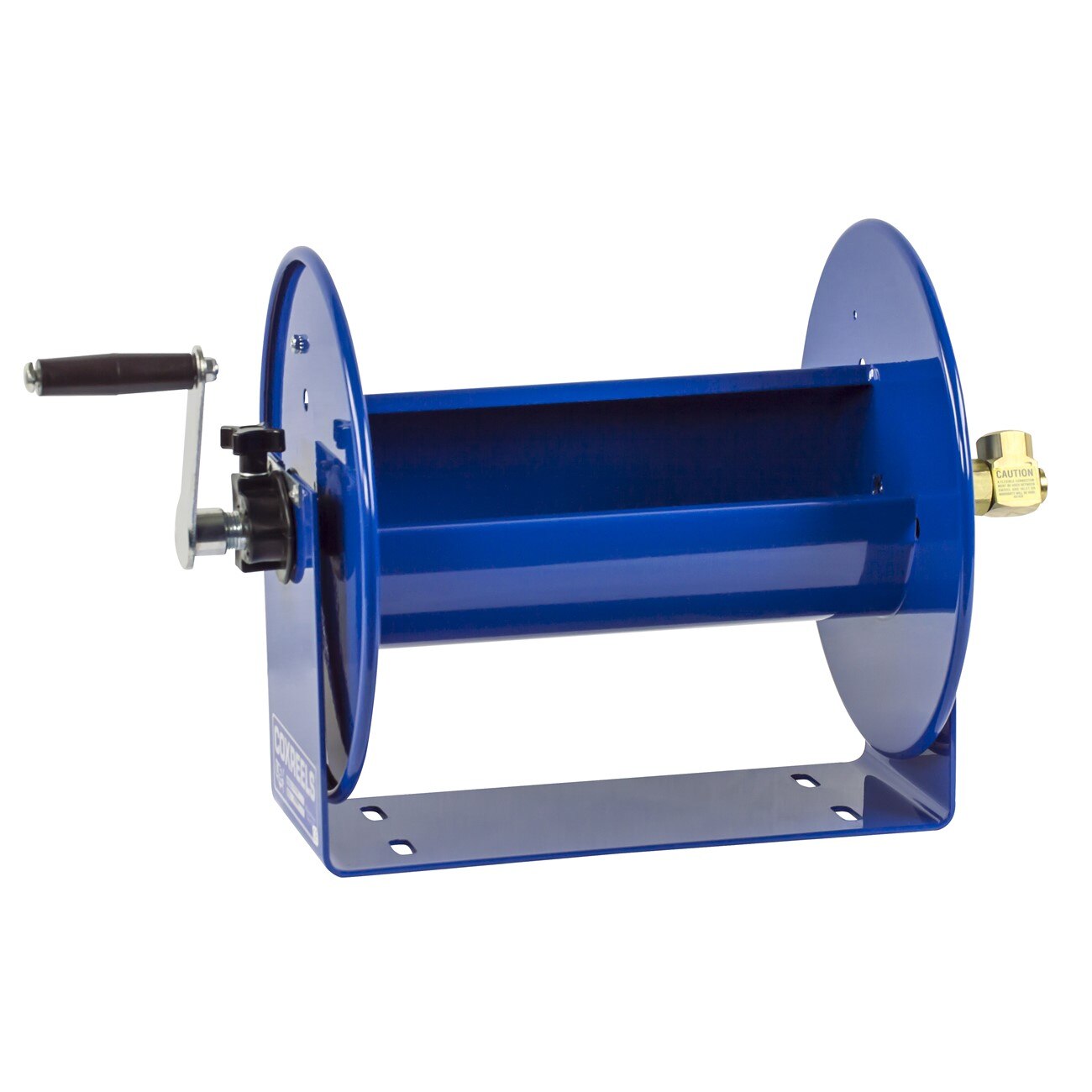

Coxreels 112-3-150 Hand Crank Hose Reel 150 Ft Steel

Product Description

The COXREELS 112-3-150 is a hand crank hose reel from the 100 Series, built for demanding commercial and industrial applications where working pressure up to 4,000 psi is required. Constructed entirely from heavy-gauge steel with a CPC powder coat finish, this reel accepts 3/8 inch ID hose up to 150 feet in length. A machined solid brass 90-degree full-flow NPT swivel allows hose connection and seal maintenance without removing the reel from its mount. The one-piece U-shaped frame keeps the design compact and lightweight at 21 pounds, making it practical for mobile service setups and fixed installations alike. All models are supplied without hose.

This reel is suited for residential and commercial service environments where a technician needs reliable, manual hose retraction at elevated pressures. Typical applications include pressure washing, fluid transfer, and general industrial hose management. The adjustable tension brake controls draw speed and prevents free-wheeling during operation, storage, or transport. Its compact footprint — 20.75 inches long, 12.5 inches wide, and 13.5 inches tall — fits in service vehicles, shops, and equipment bays without consuming excessive space.

Key Features

• Handles working pressures up to 4,000 psi for demanding fluid and pressure applications
• Machined solid brass 90-degree full-flow NPT swivel supports in-place seal maintenance and fast hose installation
• Heavy-gauge one-piece U-shaped steel frame provides a compact, durable mounting structure
• CNC robotically spun and ribbed steel discs with rolled edges protect hose and improve operator safety
• Adjustable tension brake controls reel speed and prevents free-wheeling during use, transit, or storage
• Chip-resistant, rust-inhibiting CPC powder coat finish extends service life in harsh environments

Compatibility

Designed for use with 3/8 inch ID hose up to 150 feet in length. This reel is supplied without hose; hose must be sourced and installed separately. Stainless steel variants of the 100 Series are available for corrosive-environment applications.

Installation Notes

Installation is typically performed by a maintenance technician or service professional familiar with hose reel mounting and fluid system connections. Shut off and depressurize any connected fluid supply line before mounting or connecting hose. Secure the reel to a structurally adequate surface using appropriate fasteners for the mount material. Follow applicable OSHA and facility safety guidelines when working with high-pressure fluid systems.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Length Capacity: 150 ft
• Maximum Working Pressure: 4,000 psi
• Frame Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Length: 20.75 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 21 pounds
• UPC: 674255800113

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112-3-150
