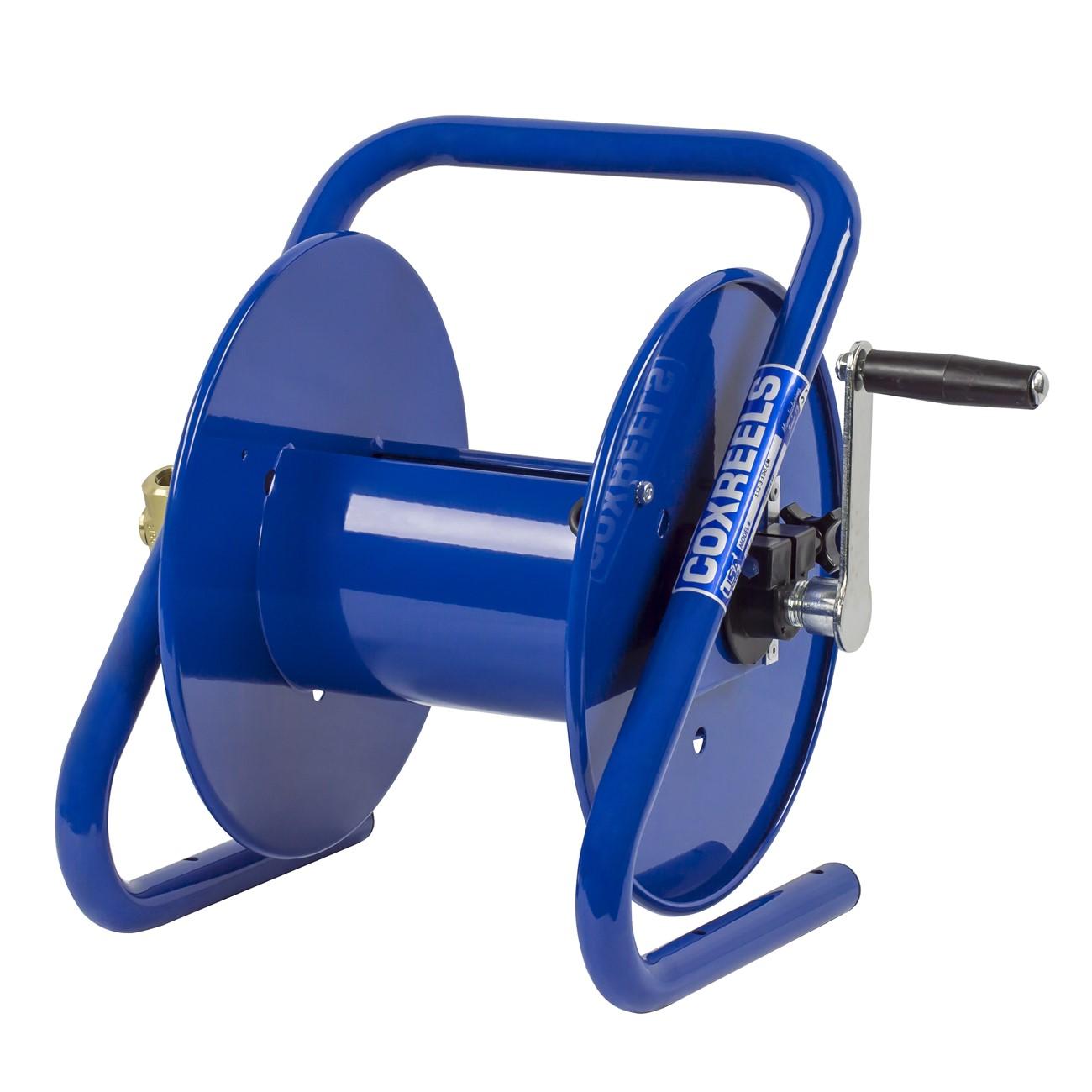

Coxreels 112-3-150-CM Hand Crank Hose Reel 3/8 in 150 Ft

Product Description

The COXREELS 112-3-150-CM is a hand crank hose reel from the CM Series Caddy Mount line, designed for portable, high-pressure hose management in commercial and industrial environments. It accepts hose with a 3/8 inch inner diameter and holds up to 150 feet of hose. The reel is rated to 4,000 psi, making it suitable for demanding fluid transfer and compressed air applications. Mounted on a wheeled caddy frame, it allows a single technician to transport a full hose load to the job site without manually coiling or uncoiling hose. A direct hand crank provides controlled mechanical retraction. Licensed plumbers, HVAC technicians, and industrial service contractors are the primary installers and users of this equipment.

The 112-3-150-CM is suited for commercial and industrial service applications where portability and high-pressure capability are both required. The wheeled caddy mount allows the reel to be rolled between work areas, making it practical for contractors working across large facilities, job sites, or service bays. The 4,000 psi pressure rating supports use with compressed air lines, water service hose, and similar fluid delivery applications. The 3/8 inch ID hose capacity fits standard trade hose sizes used in these settings.

Key Features

• 4,000 psi working pressure rating for high-pressure service applications
• Accepts 3/8 inch ID hose up to 150 feet in length
• Machined solid brass 90-degree full-flow NPT swivel for simple seal maintenance without removing the reel from its mount
• Heavy duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• One-piece 1 inch steel tube frame with base holes for temporary or permanent installation
• CPC powder coat finish is chip resistant and rust inhibiting for long service life

Compatibility

Designed as a portable caddy-mount hose reel for commercial and industrial hose management applications. A 4 inch inlet hose with 3/4 inch female fitting and male garden adapter is available as an optional accessory for use with garden hose.

Installation Notes

Installation and setup should be performed by a qualified technician familiar with hose reel equipment and the applicable fluid or compressed air system. Depressurize and shut off the supply line completely before connecting or disconnecting any hose or fittings. Verify that all NPT swivel fittings are properly sealed before returning the system to pressure. For permanent base mounting, use the pre-drilled base holes and fasten to a stable surface appropriate for the working load.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Hose Capacity: 150 feet
• Maximum Working Pressure: 4,000 psi
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Frame Material: Steel
• Frame Construction: One-piece 1 inch steel tube
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 22 pounds
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112-3-150-CM
