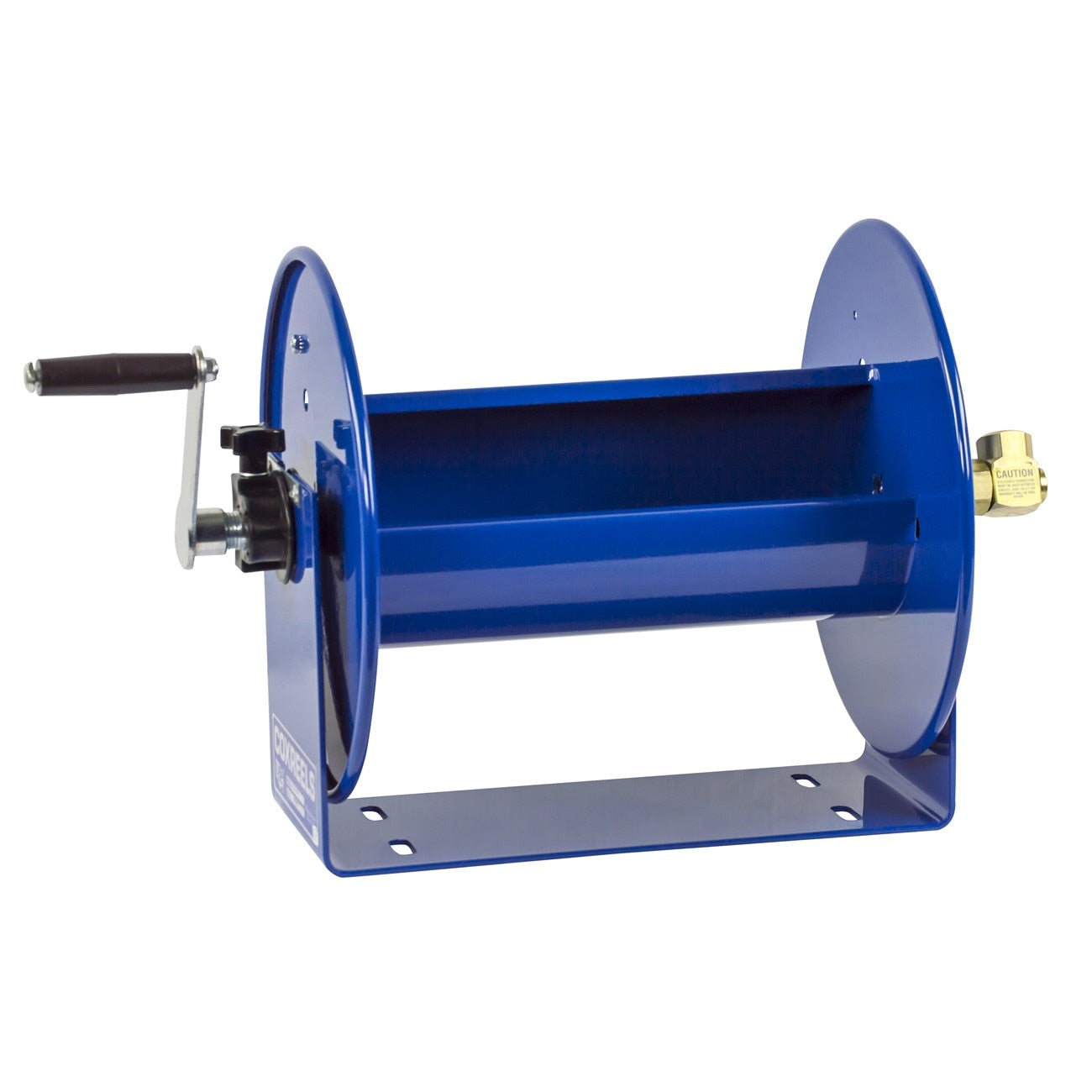

Coxreels 112-3-100 Hand Crank Hose Reel 3/8 in 100 Ft Steel

Product Description

The COXREELS 112-3-100 is a hand crank hose reel from the 100 Series, built for demanding commercial and industrial applications. The reel features an all-steel, one-piece U-shaped frame construction and is rated for working pressures up to 4,000 psi. It accepts hose with a 3/8-inch inner diameter and accommodates up to 100 feet of hose length. A machined solid-brass 90-degree full-flow NPT swivel is standard, allowing simple seal maintenance and hose installation without removing the reel from its mount. This unit is supplied without hose. Licensed HVAC, plumbing, and mechanical contractors are the typical installers in professional service environments.

The 112-3-100 is suited for both commercial and industrial settings where a compact, portable hose reel is needed. Its lightweight design makes it practical for service vehicles, shop walls, or fixed mounting stations. The adjustable tension brake gives the operator control over hose draw speed and prevents free-wheeling during operation, transport, or storage. The CPC powder coat finish resists chipping and rust, making it appropriate for environments with exposure to moisture, debris, and daily heavy use.

Key Features

• Rated for working pressures up to 4,000 psi
• Accepts 3/8-inch ID hose up to 100 feet in length
• Machined solid-brass 90-degree full-flow NPT swivel for tool-free hose installation and seal maintenance
• Heavy-gauge all-steel one-piece U-shaped frame for structural rigidity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling
• Chip-resistant, rust-inhibiting CPC powder coat finish

Compatibility

Designed as an OEM-style hand crank hose reel compatible with standard 3/8-inch ID hose assemblies in commercial and industrial service applications. Supplied less hose; stainless steel models are available separately.

Installation Notes

Installation is typically performed by licensed mechanical or plumbing contractors. Depressurize and drain any connected hose or fluid supply line fully before mounting or servicing the reel. Secure the reel to a structurally sound surface using hardware appropriate for the mounting substrate. Verify that inlet and outlet connections are rated for the operating pressure of the system before returning to service.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Maximum Hose Length: 100 feet
• Maximum Working Pressure: 4,000 psi
• Frame Material: Steel
• Swivel Material: Solid Brass
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC Powder Coat
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 19 pounds
• Sold As: Each, less hose

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112-3-100
