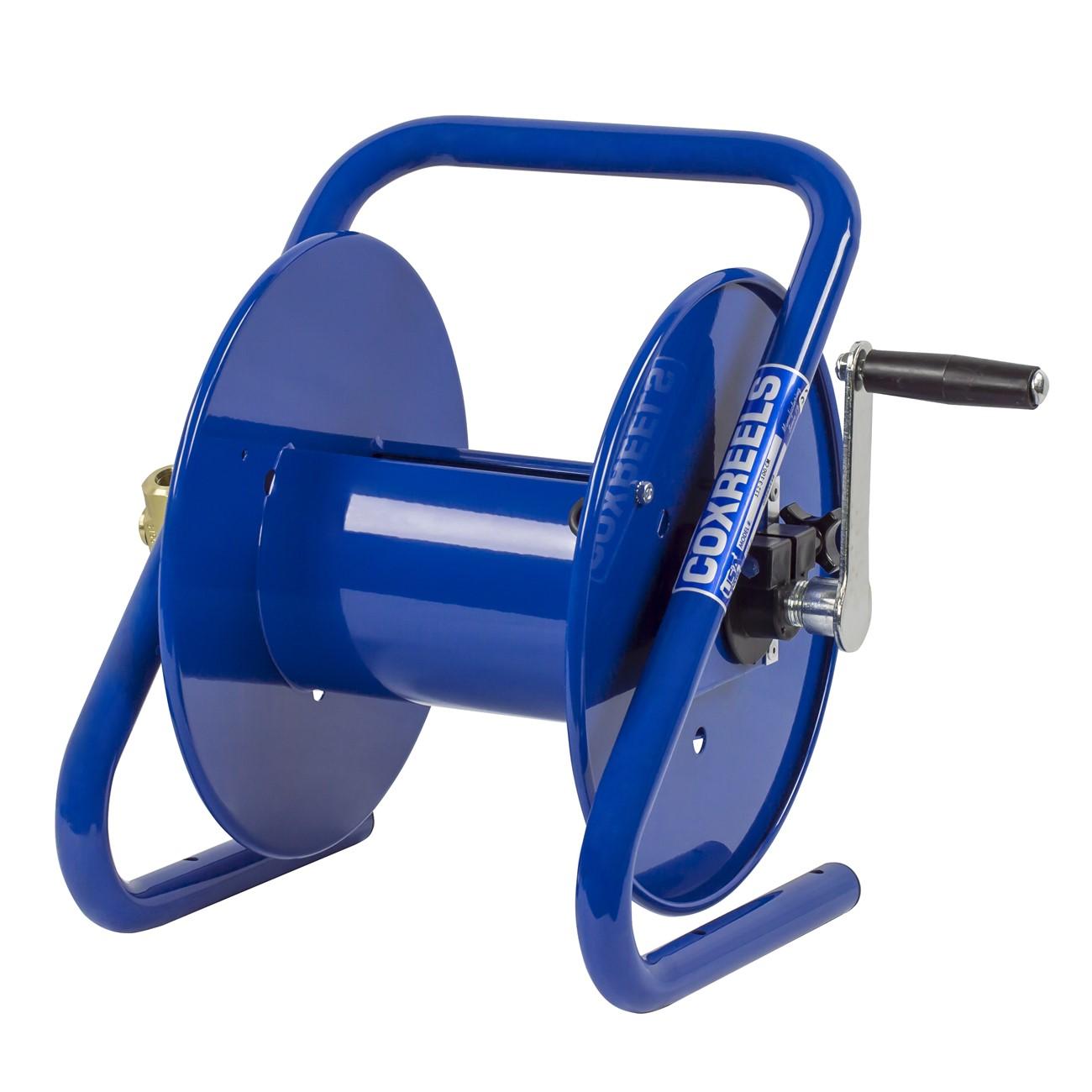

Coxreels 112-3-100-CM Hand Crank Hose Reel 3/8 in 100 Ft

Product Description

The COXREELS 112-3-100-CM is a CM Series Caddy Mount hand crank hose reel built for trade professionals who need portable, high-pressure hose management in the field. It accepts hose with a 3/8 inch ID and 5/8 inch OD, with a maximum hose length of 100 feet. Rated at 4,000 psi, this reel handles demanding commercial and industrial fluid transfer applications. The one-piece steel tube frame and CNC robotically spun ribbed discs with rolled edges provide structural rigidity under load. A direct hand crank drives mechanical retraction, eliminating manual coiling on the job site.

The 112-3-100-CM is suited for commercial and industrial service environments where portability and hose length management are essential. The caddy mount design places the reel on wheels for easy transport across job sites, making it practical for mobile service rigs, shop floors, and field maintenance operations. An optional 4-inch inlet hose with 3/4 inch female fitting and male garden adapter is available for use with garden hose applications. Installers in HVAC, plumbing, and general mechanical trades will find this reel well matched to high-pressure fluid and air hose service needs.

Key Features

• 4,000 psi pressure rating handles high-pressure fluid and air applications
• Machined solid brass 90-degree full-flow NPT swivel for simple seal maintenance without removing the reel from its mount
• One-piece 1-inch steel tube frame with base mounting holes for temporary or permanent installation
• CNC robotically spun and ribbed discs with rolled edges for added strength, durability, and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• CPC powder coat finish resists chips and rust for long service life in demanding environments

Compatibility

Designed to accept 3/8 inch ID hose up to 100 feet in length. An optional 4-inch inlet hose with 3/4 inch female fitting and male garden adapter is available for garden hose use with this series.

Installation Notes

Installation and service should be performed by a qualified mechanical or fluid systems technician. Depressurize and disconnect the hose assembly from its fluid or air source before mounting or servicing the reel. Secure the frame base using the provided mounting holes when a permanent or semi-permanent installation is required. Verify all NPT swivel fittings are properly sealed and pressure-tested before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Max Hose Length: 100 feet
• Pressure Rating: 4,000 psi
• Frame Material: Steel
• Swivel Material: Solid Brass
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC Powder Coat
• Length: 18 inches
• Width: 13 inches
• Height: 19.5 inches
• Weight: 18 pounds
• UPC: 674255800069

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112-3-100-CM
