Covalence Adhesives NAS-557-3 Grommet

Product Description

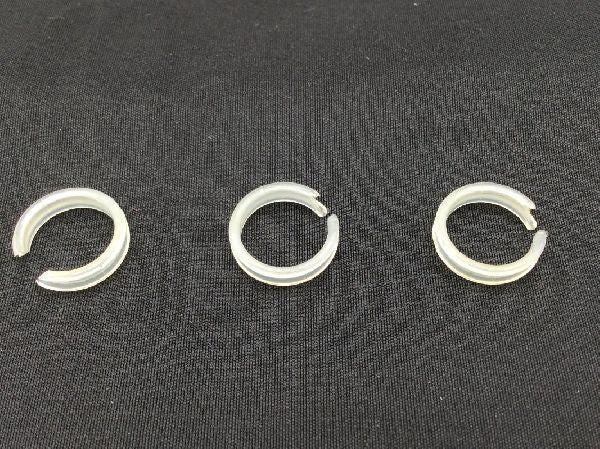

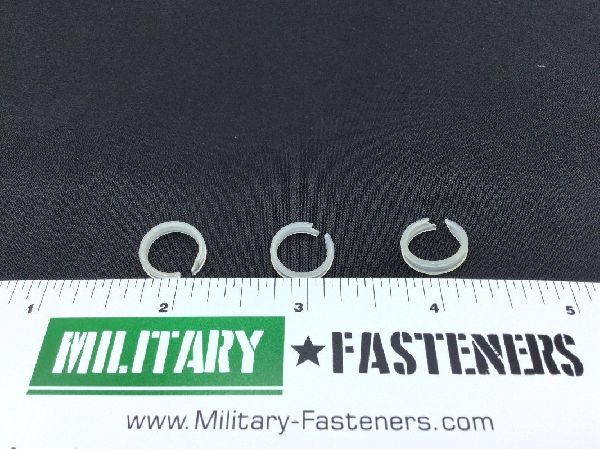

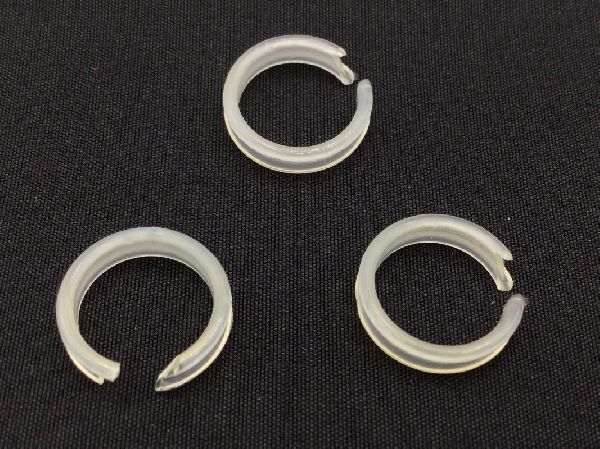

The Covalence Adhesives NAS-557-3A grommet is made for diverse applications. This nonmetallic grommet is crafted using durable plastic polyamide material with a split design. It features a hole diameter of three-sixteenths of an inch, suitable for military fasteners and other industrial uses.

• Hole Diameter: 0.188 inches nominal
• Material: Plastic polyamide
• Construction: Split design

Product Highlights

This grommet meets military specifications and industrial standards, providing secure fastening and protection for wires or cables.

Product Information

Standard Information

• Country of Origin: N/A
• Weight: 0.035 lbs

Technical Specifications

• Hole Diameter: 0.188 inches nominal
• Groove Width: 0.060 inches minimum and 0.070 inches maximum
• Flange Thickness: 0.074 inches minimum and 0.079 inches maximum
• Overall Height: 0.219 inches nominal
• Large Flange Outside Diameter: 0.315 inches nominal
• Groove Outside Diameter: 0.241 inches nominal
• Grommet Construction Type: Split
• Material: Plastic polyamide
