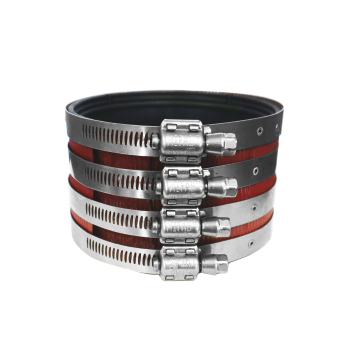

COUPLINGS MI-QXHUB-3 Quick Hub Shield Coupling

Product Description

The COUPLINGS MI-QXHUB-3 is a no-hub coupling designed for heavy-duty applications. This product features a neoprene gasket that meets ASTM C-564 standards, designed for optimal sealing. It is enclosed in a Type 304 stainless steel corrugated shield to provide durability.

• Includes four Type 304 stainless steel clamps.
• Secured with 3/8 Type 305 stainless steel hex head screws.
• Complies with ASTM-C1540-2018 and CSA B602 standards.

Product Highlights

The COUPLINGS MI-QXHUB-3 is suitable for various plumbing applications, ensuring reliable connections with its robust design.

Product Information

Standard Information

• Product Type: Coupling, Straight
• Material: Neoprene, Stainless Steel

Technical Specifications

• Fitting Size 1: 3 inches
• Fitting Size 2: 3 inches
• End Connection 1: No Hub
• End Connection 2: No Hub
• Maximum Pressure: 30 psi
• Pressure Class: 30#
• Length: 3 inches
• ASTM Certifications: ASTM C-1460, ASTM C-1540-2018, ASTM C-564
