Couplers & Bearing RCSM-16 Bearing 1 in. Replacement CSA205-16

Product Description

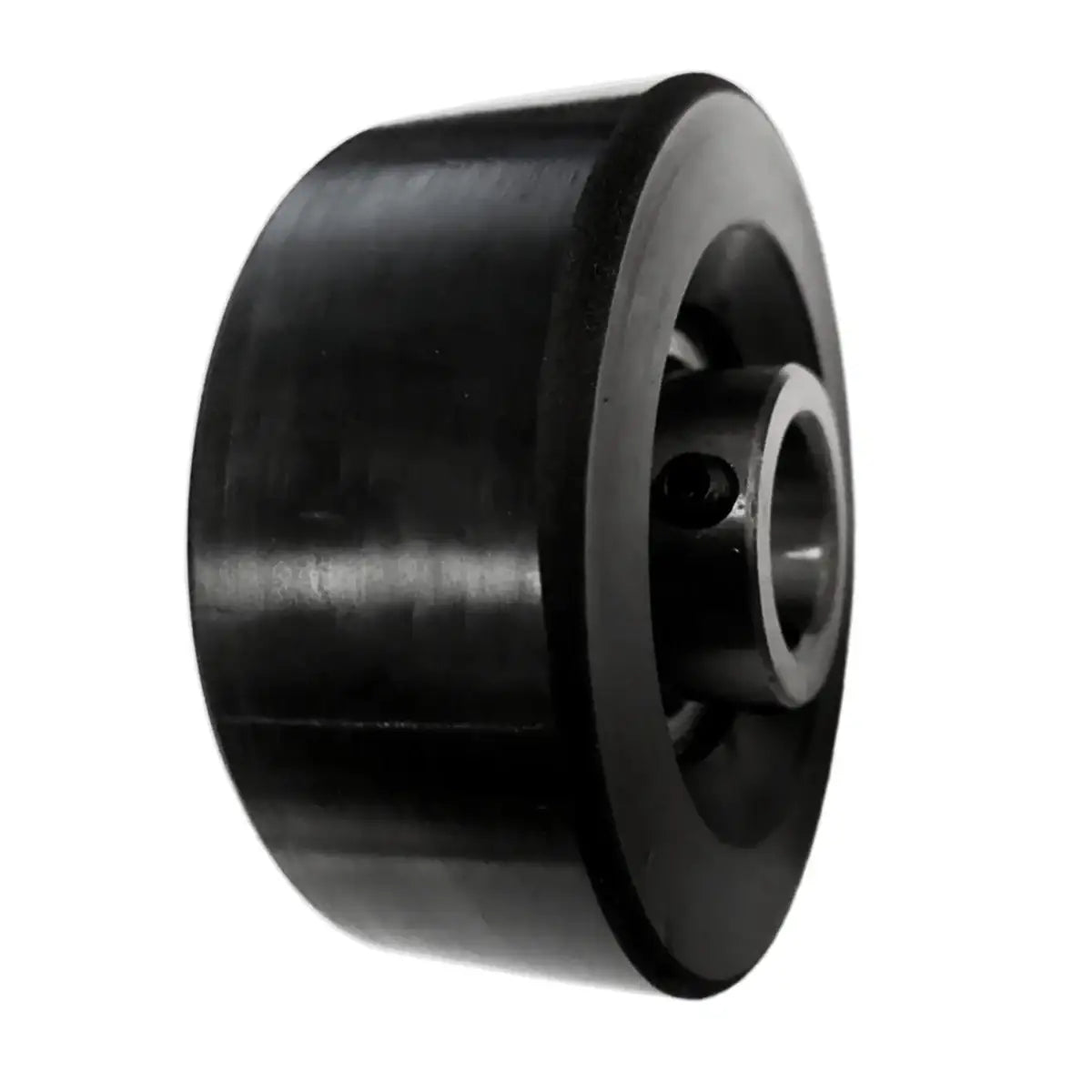

The COUPLERS & BEARING RCSM-16 vibration-damping bearing is made to C3 precision standards and utilizes high-grade materials for durability. It has a 1" bearing inside diameter and uses an eccentric locking collar for securing onto a 1" shaft. The static conductive rubber cushion dampens vibrations in industrial applications.

• Made according to C3 precision standards
• Utilizes high-grade materials for superior performance and durability
• 1" bearing inside diameter

Product Highlights

Vibration damping bearing with 1" bearing I.D., eccentric locking collar, and static conductive rubber cushion for vibration dampening.

Product Information

Standard Information

• Brand: COUPLERS & BEARING
• Manufacturer Part Number: RCSM-16

Technical Specifications

• Unit Part #: RCSM-16
• Bearing I.D: 1"
• Dimension (D): 2-17/32"
• Dimension (A): 1"
• Dimension (M): 1-25/32"
• Dimension (d1): 1-1/2"
• Dimension (S1): 59/64"
• Dimension (T): 1/2"
• Bearing Part #: CSA205-16
• Rubber Part #: RCSM 52/65
• Housing Radial Load Rating: 300 LBF
• Weight: 1.13 LBS
