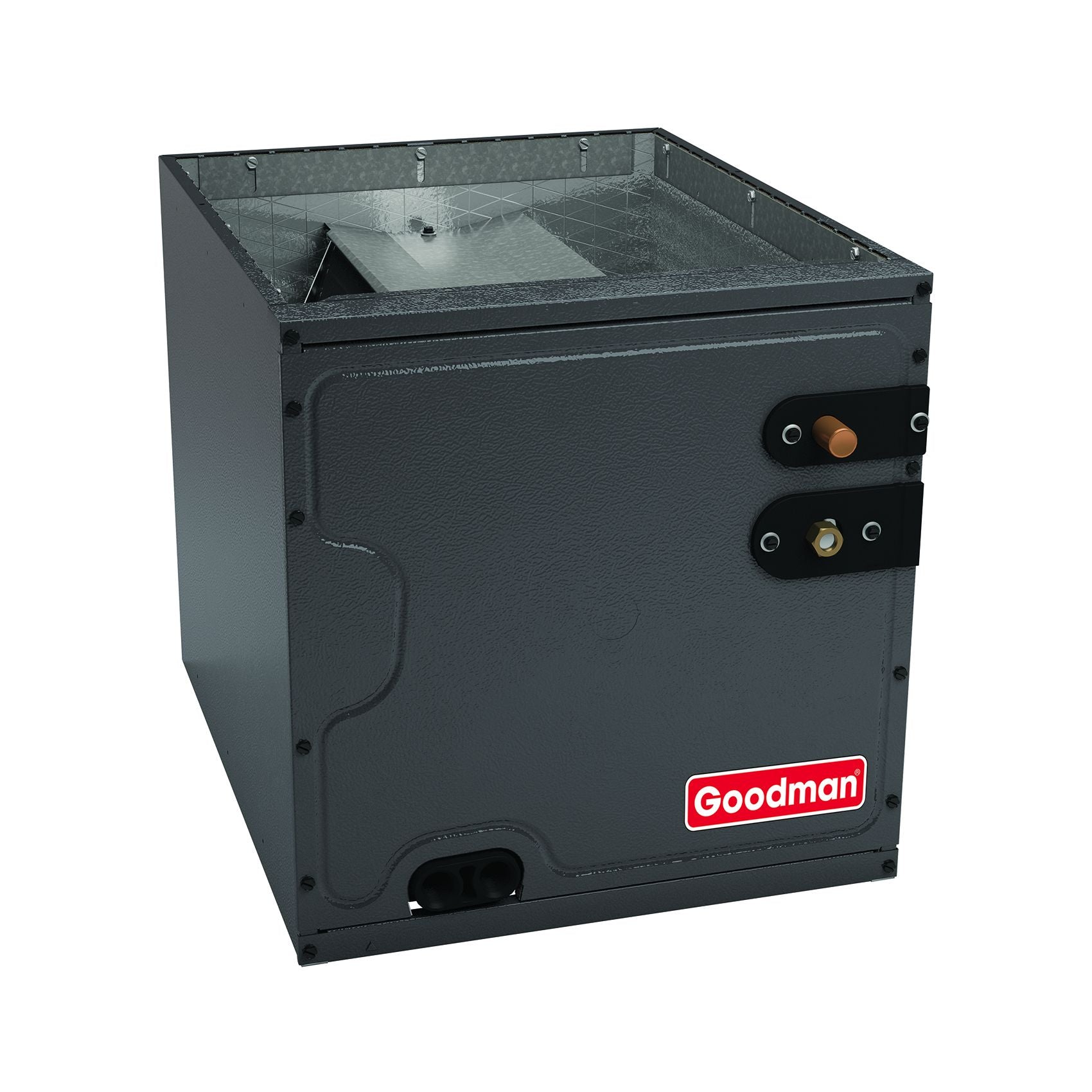

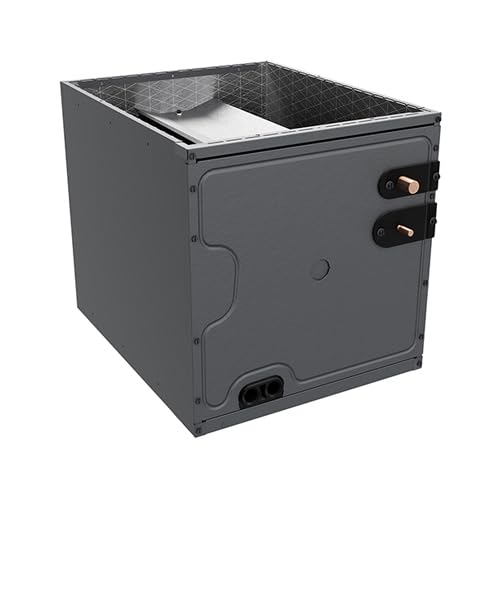

Goodman CAPTA3626B3 Evaporator Coil, Upflow/Downflow, (3.0 Tons)

Product Description

The Goodman CAPTA3626B3 is a 3.0 Ton A coil designed for upflow or downflow applications. Suitable for use with R-32 refrigerants, it features a rust-proof, thermoplastic drain pan with a low water-retention design. The coil includes foil-face insulation and a galvanized leather-grain finish.

• All-aluminum evaporator coil enhances heat transfer efficiency.
• Includes an internal thermostatic expansion valve (TXV).
• Designed for upflow or downflow installations.

Product Highlights

This Goodman A coil features all-aluminum construction, an internal TXV, and is designed for use with R-32 refrigerant.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: CAPTA3626B3

Technical Specifications

• Model Number(s): CAPTA3626B3
• Brand: Goodman
• Category: Evaporator Coils
• Ton: 3.0 Ton
• Refrigerant Type: R-32
• Suction Valve Size (Inches): 7/8
• Liquid Valve Size (Inches): 3/8
• Height (Inches): 26
• Width (Inches): 17 1/2
• Depth (Inches): 21
• Type: Evaporator Coil
• Product Line: CAPTA
• Product Category: Evaporator Coil
• Casing: Cased
• Style: A Coil
• Configuration: Upflow/Downflow
• TXV Installed: Yes
• Capacity: 3.0 Tons
• Cooling BTU: 36000
• Nominal Minimum Cooling Capacity: 36000 BTU
• Cabinet Width: 17 1/2 Inches
• Product Height: 26 Inches
• Product Width: 17 1/2 Inches
• Product Depth: 21 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
