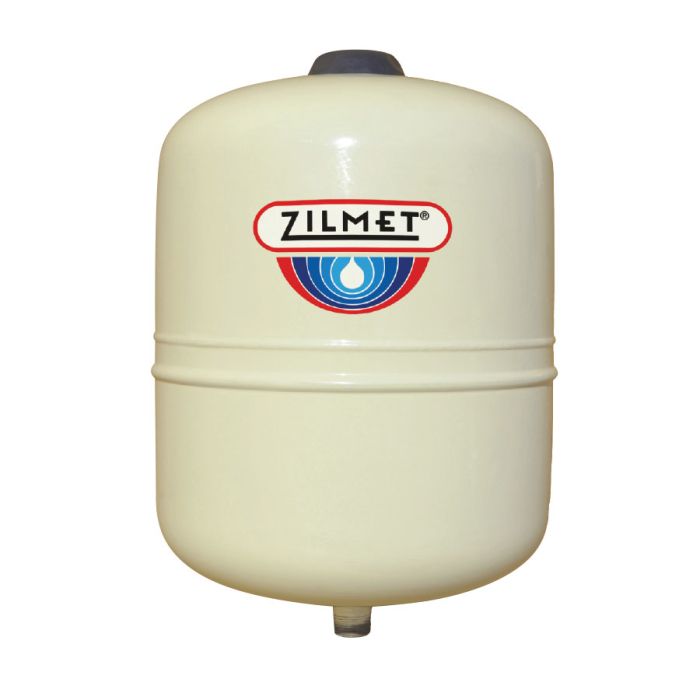

Cornerstone ZEP5 Zilmet In-Line Thermal Expansion Tank 150 psi 2.1 gal Tank

Product Description

The Cornerstone ZEP5 is an In-Line Thermal Expansion Tank designed for plumbing systems. With a volume of two point one gallons and an acceptance of one point four gallons, this tank operates efficiently under a pressure rating of one hundred fifty psi. Its dimensions are seven point nine inches in diameter and eleven inches in height. The ZEP5 is ideal for residential and commercial water heating systems.

• Factory leak tested for integrity.
• MIG welded construction for smooth internal surfaces.
• Exclusive polypropylene liner for corrosion resistance.

Product Highlights

This thermal expansion tank helps manage pressure build-up in water heating systems. Its durable construction ensures long-lasting performance and reliability.

Product Information

Standard Information

• Warranty: 5 Years
• Type: In-Line

Technical Specifications

• Tank Volume: 2.1 gal
• Acceptance Volume: 1.4 gal
• Pressure Rating: 150 psi
• Diameter: 7.9 in
• Height: 11 in
• Material: Carbon Steel
• Connection Type: NPT
• Connection Size: 3/4 in
• Maximum Temperature: 210 deg F
• Domestic/Import: Import
