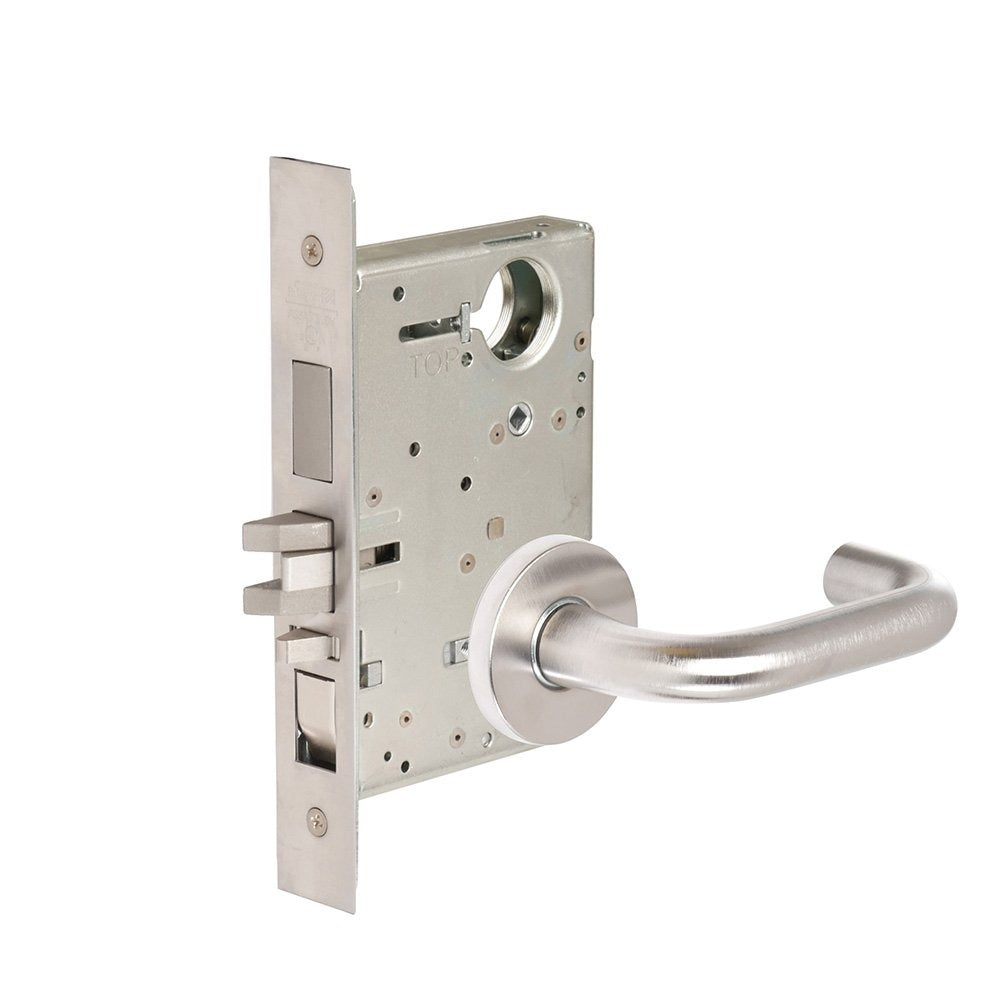

Corbin Russwin ML2067 Lwa 626 Lc Grade 1 Mortise Lock

Product Description

The CORBIN RUSSWIN ML2067 LWA 626 LC is a Grade 1 mortise lockset built for high-traffic commercial, institutional, industrial, and government applications. The heavy-gauge steel lock case measures 5-7/8 inches by 4 inches by 15/16 inches and features a patented Quick Reversible latch bolt that allows re-handing without disassembling the lock case. The front plate is 8 inches by 1-1/4 inches. Finished in 626 Satin Chrome and fitted with the LWA Lustra lever, this lockset is suited for apartment and dormitory functions requiring both latch and deadbolt control. A 10-year warranty covers the unit. Cylinder, keys, and cylinder hardware are not furnished.

The ML2067 LWA 626 LC is designed for apartment and dormitory (F20) function installations in offices, schools, hospitals, hotels, and similar high-use facilities. Standard door thickness is 1-3/4 inches, with a backset of 2-3/4 inches. The lock accommodates flat doors and doors beveled 1/8 inches in 2 inches. It is appropriate for commercial and institutional settings where reliable latch and deadbolt operation with interior thumb-turn control is required.

Key Features

• Grade 1 mortise construction rated for heavy commercial and institutional use
• Patented Quick Reversible latch bolt allows re-handing without disassembling the lock case
• Apartment or dormitory F20 function: latch bolt operated by grip from either side unless outside grip is locked by toggle-action stop or deadbolt projection
• Deadbolt thrown or retracted by key outside or thumb-turn inside; inside grip simultaneously retracts both latch bolt and deadbolt
• Auxiliary latch deadlocks the latch bolt to prevent loiding
• Armored front available in wrought brass, bronze, or stainless steel, attached by machine screws
• 10-year warranty

Compatibility

Designed as an OEM-style replacement or new-installation mortise lock for doors prepped to ANSI mortise standards, with a frame strike plate sized for an ANSI 4-7/8 inch frame strike, an 8 inch by 1-1/4 inch door lock faceplate, and a 2-3/4 inch backset. Standard cylinder referenced as part 1000-118-a01-l4-626, sold separately.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Power down any access control or electrified hardware integrated with the door before servicing. Verify door thickness and backset dimensions before ordering, and confirm mortise pocket dimensions match the lock case. Cylinder, keys, and all cylinder hardware must be sourced and installed separately.
