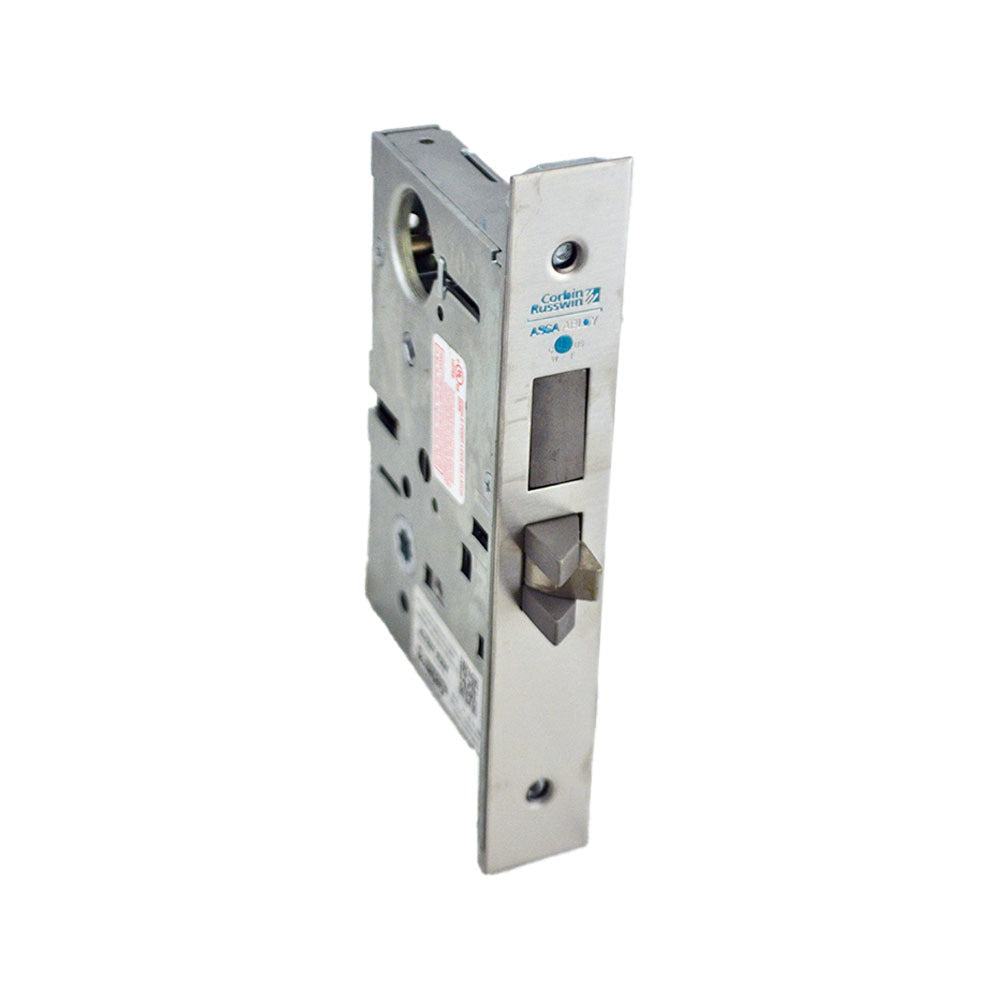

Corbin Russwin ML2065LL630 Dormitory Mortise Lock

Product Description

The CORBIN RUSSWIN ML2065LL630 is a single cylinder dormitory mortise lock designed for commercial and institutional door hardware applications. The lock body mounts inside the door edge and operates with a lever-by-lever trim configuration, making it well suited for dormitory-style locking functions where the outside lever locks by key and the inside lever remains free for egress. This unit ships as a complete assembly including the lock body, strike plate, front plate, and mounting screws. The satin stainless steel finish (630) provides corrosion resistance in high-traffic environments. Installation is performed by licensed locksmiths or door hardware specialists following ANSI and local building code requirements.

This mortise lock is intended for commercial and institutional facilities including dormitories, residence halls, hotels, and similar multi-occupancy buildings where a keyed outside lever with free inside egress is the required locking function. The dormitory function is a common specification in education and hospitality projects governed by IBC and local fire and life safety codes. The complete kit format reduces field assembly time and ensures all mating components are matched from the factory.

Key Features

• Single cylinder dormitory mortise lock function with lever-by-lever trim
• Satin stainless steel finish (630) for durability in high-traffic and institutional settings
• Complete kit includes lock body, strike, front plate, and screws
• Front plate measures 1.5 inches by 9 inches for standard mortise pocket fitment
• Sold as individual unit (EA); available in case quantities of 6

Compatibility

Designed as an OEM-style replacement or new-installation mortise lock body for commercial and institutional doors requiring a dormitory locking function with standard mortise pocket dimensions.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with ANSI mortise lock standards and applicable building codes. De-latch and confirm the door is not in an active egress path before removing any existing hardware. Verify the mortise pocket dimensions and backset of the door before installation. Follow local fire and life safety code requirements for dormitory-function locks in occupied residential or institutional buildings.
