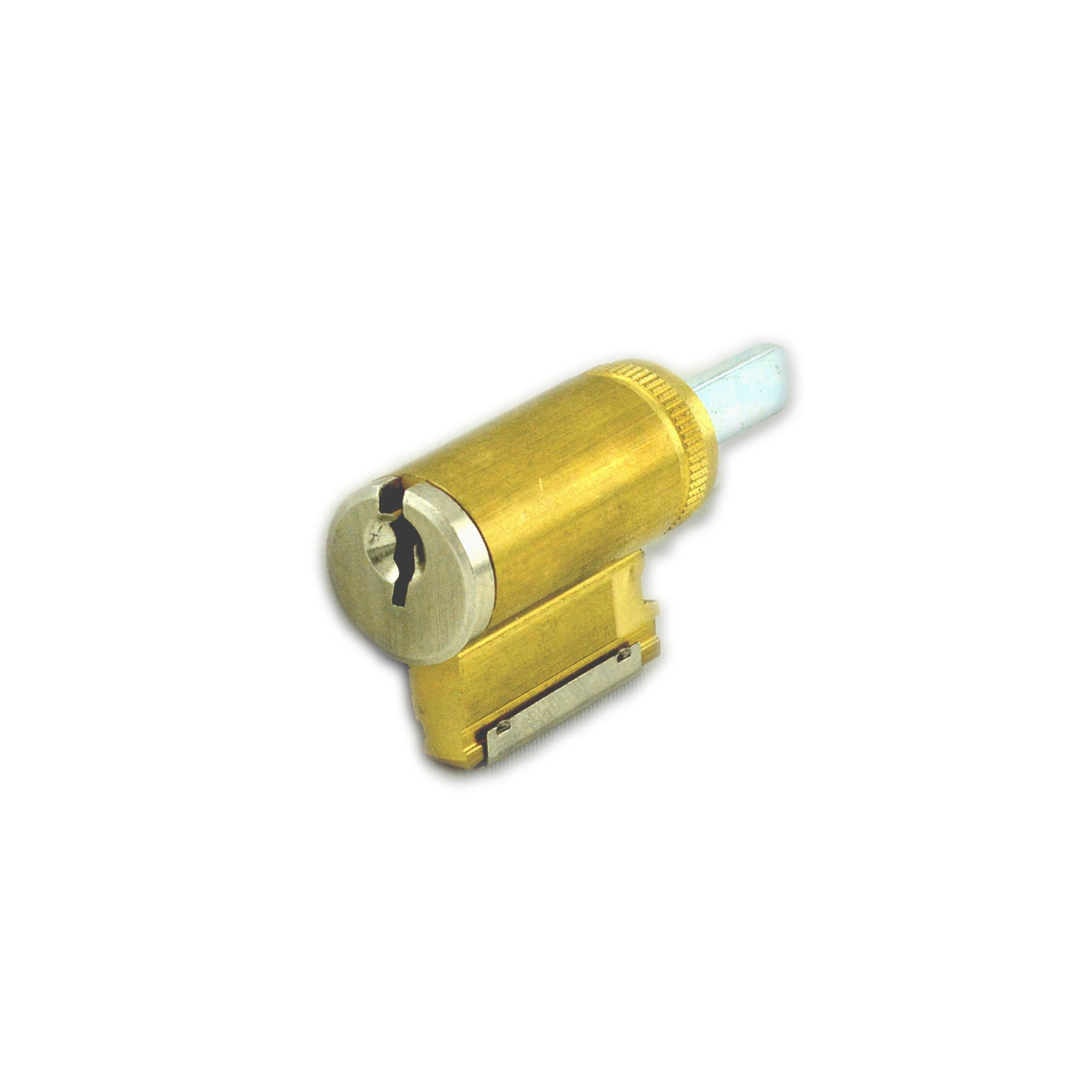

Corbin Russwin CR2000033626L4 Key in Lever Cylinder

Product Description

The CORBIN RUSSWIN CR2000033626L4 is a standard key-in-lever cylinder designed for use in commercial and institutional door hardware applications. This cylinder features a 6-pin configuration with an L4 keyway and a satin chrome finish. It is engineered to integrate directly into compatible Corbin Russwin lever locksets, providing a keyed entry function within the lock body. The unit weighs 0.2 pounds and has overall dimensions of 2.68 inches in length, 2.52 inches in width, and 2.05 inches in height. Installation is typically performed by a licensed locksmith or commercial door hardware technician.

This cylinder is suited for commercial and institutional environments where controlled access and key system management are required. It is sold individually and designed to replace or supplement the cylinder core within compatible Corbin Russwin 3300, 3500, 3600, and 3800 series lever locksets. The L4 keyway designation is part of Corbin Russwin's restricted keyway program, making it appropriate for facilities requiring organized key control across multiple openings.

Key Features

• 6-pin cylinder configuration for enhanced key control
• L4 keyway designation for use within Corbin Russwin key systems
• Satin chrome finish for consistent hardware aesthetics
• Compact form factor: 2.68 inches long, 2.52 inches wide, 2.05 inches tall
• Sold as single unit, compatible with multiple lock series

Compatibility

Designed for use with Corbin Russwin 3300, 3500, 3600, and 3800 series lever locksets requiring a standard key-in-lever cylinder with an L4 keyway.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Remove all keying components and ensure the lock chassis is secured before cylinder replacement. Follow the applicable building and fire code requirements for hardware on rated door assemblies. Do not force the cylinder during installation, as improper seating can damage the cam and prevent proper latch operation.
