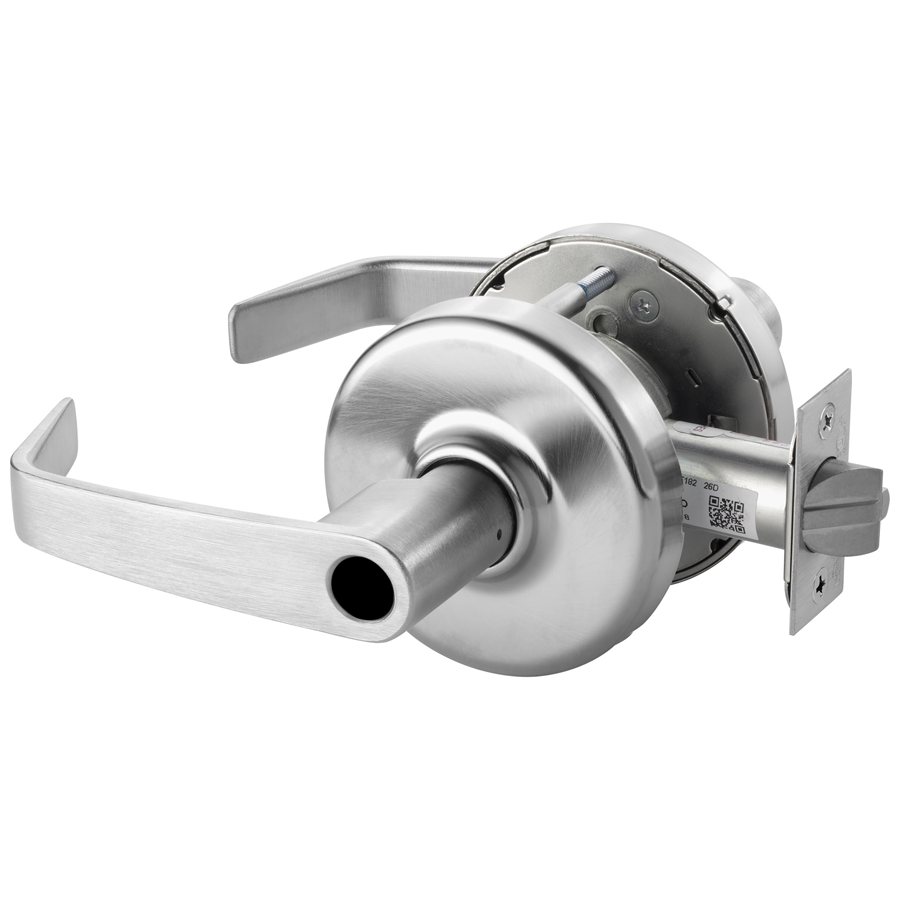

Corbin Russwin CLX3361-NZD-626-L4 Newport Cylindrical Lever 2-3/4 inches Backset 194400

Product Description

Corbin Russwin CLX3361-NZD-626-L4 is a Grade 1 Newport cylindrical lever for office and entrance use with an L4 privacy function, 6-pin 0-bit cylinder provision, and a standard 2-3/4" backset with ANSI strike SA114. The inside push-button locks the outside lever and requires a key to unlock; turning the inside lever releases the outside lever. The non-handed cast zinc lever mounts on a D rose and fits 1-3/4"–2" doors.

• L4 office/entrance function with push-button inside that locks outside lever; outside requires key to unlock
• Grade 1 construction with deadlocking latchbolt, non-handed Newport lever in cast zinc; ADA-compliant and UL/cUL 3-hour fire listed
• Standard 2-3/4" backset, D rose, fits 1-3/4"–2" door thickness; supplied with two nickel silver change keys

Product Highlights

Grade 1 Newport cylindrical lever, L4 privacy function, 6-pin 0-bit cylinder, 2-3/4" backset, ANSI Strike SA114

Product Information

Standard Information

• Brand: CORBIN RUSSWIN
• Manufacturer Part Number: CLX3361-NZD-626-L4

Technical Specifications

• Brand: Corbin Russwin
• Manufacturer Part Number: CLX3361-NZD-626-L4
• Alternate Part Number: 194400
• Series: CLX (CLX3300 Series)
• Model Name: Newport cylindrical lever
• Grade: Grade 1
• Function: Office/Entrance (L4)
• Cylinder Type: 0-Bit provision
• Cylinder Pins: 6-pin
• Number of Keys: Two nickel silver change keys per lock standard
• Backset: 2-3/4"
• Backset (mm): 70 mm
• Door Thickness: 1-3/4" - 2" (44 mm - 51 mm)
• Minimum Stile: 4-1/2" (114 mm)
• Handing: Non-handed
• Lever Design: Newport
• Material: Cast zinc
• Rose/Escutcheon: D Rose
• Strike: ANSI Strike SA114 (curved lip ANSI standard)
• Strike Lip Length: 1-1/4"
• Latchbolt Throw: Stainless steel, 1/2" (13 mm)
• Finish Code: 626
• Finish: 626/US26D Satin Chrome
• Door Application: Office/Entrance commercial doors
• Certifications: Exceeds ANSI/BHMA Grade 1; UL/cUL listed for 3-hour fire doors; ADA compliant lever design
