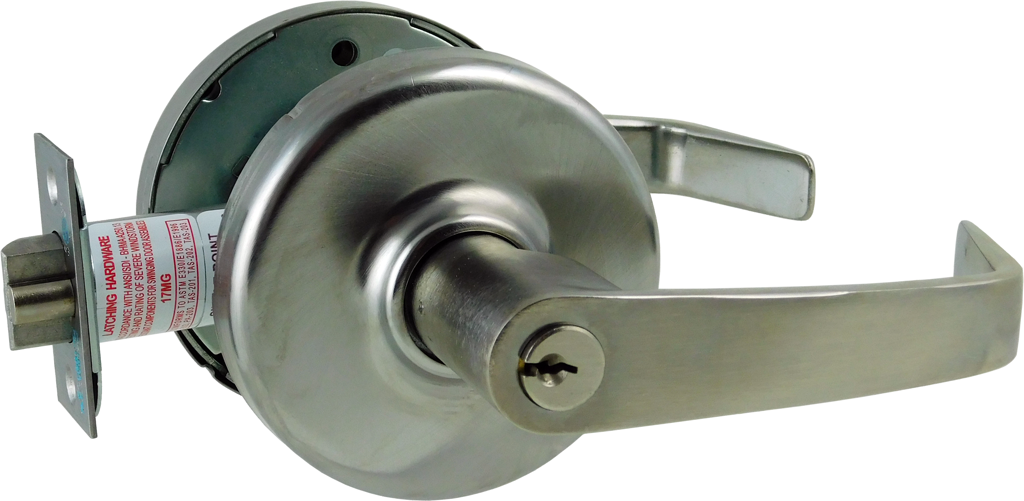

Corbin Russwin CLX3351-NZD-626-L4 Grade 1 Cylindrical Lock

Product Description

The CORBIN RUSSWIN CLX3351-NZD-626-L4 is a Grade 1 entrance cylindrical lock featuring the Newport lever style in a satin chrome (626) finish. Built for high-traffic commercial doors, it meets ANSI/BHMA Grade 1 standards and exceeds rigorous abuse testing — withstanding over 3,100 inch-pounds of torque and 1,600 pounds of offset lever pull. The lock body accepts all standard cylinder formats, and the non-handed design works on any door swing. A 2-3/4 inch backset and adjustable push/turn button accommodate a range of door thicknesses. Licensed locksmiths, door hardware installers, and commercial general contractors typically handle this product.

This lock is suited for commercial and institutional environments where security, durability, and code compliance are required — office buildings, healthcare facilities, schools, and other high-use applications. The L4 designation indicates a 6-pin cylinder configuration. The satin chrome finish provides a neutral aesthetic that integrates with a wide range of commercial door hardware standards. The non-handed body simplifies stocking and field installation, reducing the chance of ordering errors on large projects.

Key Features

• ANSI/BHMA Grade 1 certified for commercial, high-traffic applications
• Withstands over 3,100 inch-pounds of abusive torque and 1,600 pounds of offset lever pull
• Patented adjustable push/turn button accommodates varying door thicknesses
• Accepts all cylinder formats — compatible with new construction and retrofit installations
• Non-handed design simplifies ordering and installation
• UL-listed with a 10-year limited warranty
• Cast zinc construction with satin chrome (626) finish

Compatibility

Designed as an OEM-style Grade 1 cylindrical entrance lock for commercial door applications requiring a 2-3/4 inch backset and 6-pin cylinder configuration. Accepts all standard cylinder formats for use in new construction and retrofit installations.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician in accordance with applicable building codes. Confirm door prep dimensions — bore diameter, cross-bore spacing, and backset — match the lock specifications before installation. Ensure the door is held open or properly blocked and that access control power is disconnected before servicing any integrated hardware. Do not force the adjustable push/turn button beyond its designed range of adjustment.

Technical Specifications

• Grade: ANSI/BHMA Grade 1
• Function: Entrance
• Lever Style: Newport
• Finish: Satin Chrome (626)
• Backset: 2-3/4 inches
• Cylinder: L4 6-Pin
• Material: Cast Zinc
• Handing: Non-Handed
• Torque Rating: Over 3,100 inch-pounds abusive torque
• Offset Lever Pull Rating: 1,600 pounds
• Listing: UL Listed
• Warranty: 10-Year Limited

Standard Information

• Brand: CORBIN RUSSWIN
• Manufacturer Part Number: CLX3351-NZD-626-L4
