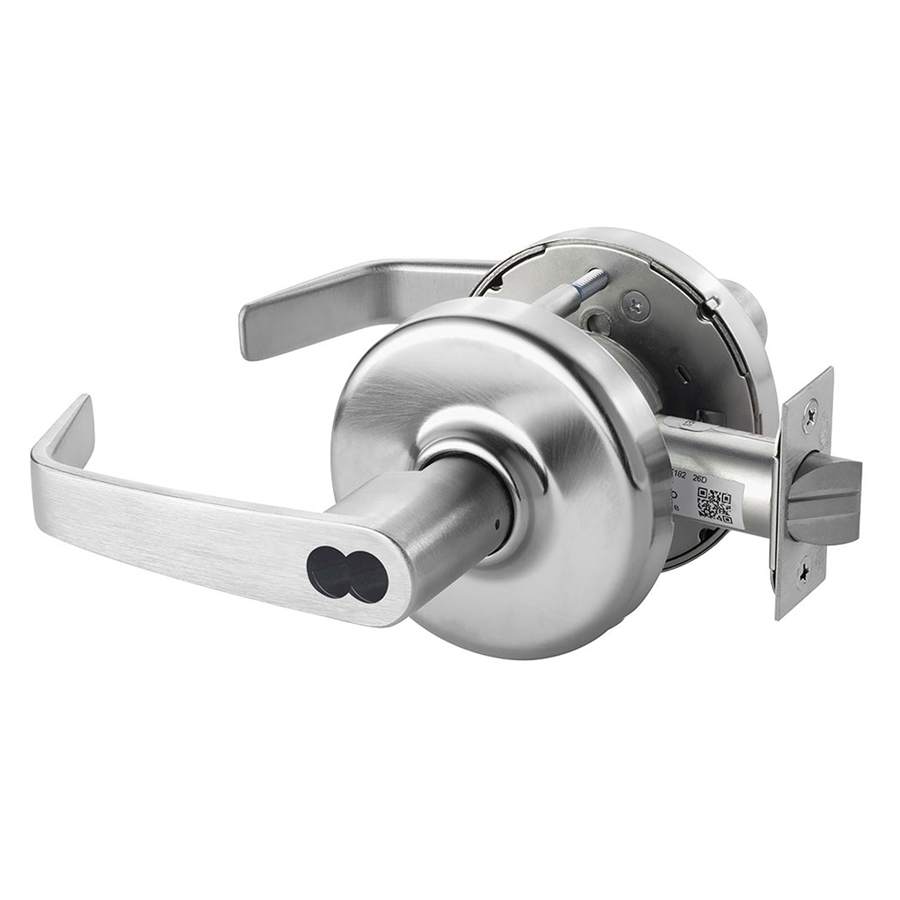

Corbin Russwin CLX3332-NZD-626-CT6D-LFIC double cylinder institutional Newport cylindrical lever 2-3/4 backset

Product Description

The Corbin Russwin CLX3332-NZD-626-CT6D-LFIC is a double cylinder institutional Newport cylindrical lever with LFIC large format interchangeable core 6-pin prep for commercial doors. It features a 2-3/4" backset, non-handed design, and fits 1-3/4" to 2" door thickness. The lock meets ANSI/BHMA Grade 1, is UL/cUL listed for 3-hour fire doors, includes a stainless steel 1/2" latchbolt, and provides ADA-compliant lever operation.

• Large format interchangeable core (LFIC) 6-pin prep compatible with disposable cores; two CR8000 cores (less) noted in specifications
• ANSI/BHMA Grade 1 construction, UL/cUL listed for 3-hour fire doors, and ADA-compliant lever design
• Non-handed cylindrical lock with 2-3/4" backset, stainless steel 1/2" latchbolt throw, and ANSI curved lip strike

Product Highlights

Grade 1 commercial double-cylinder cylindrical lever with LFIC 6-pin prep, 2-3/4" backset, ADA-compliant lever, and UL/cUL 3-hour fire listing.

Product Information

Standard Information

• Brand: CORBIN RUSSWIN
• Manufacturer Part Number: CLX3332-NZD-626-CT6D-LFIC

Technical Specifications

• Manufacturer: Corbin Russwin
• Manufacturer Part Number: CLX3332-NZD-626-CT6D-LFIC
• Series: CLX
• Function: Institutional (Double Cylinder) - ANSI F87
• Backset: 2-3/4" (2.75 in / 70 mm)
• Cylinder Type: Large format interchangeable core (LFIC) - 6-Pin, Disposable Core
• Cylinder Pins: 6
• Door Thickness: 1-3/4" - 2" (1.75 - 2.00 in / 44 mm - 51 mm)
• Handing: Non-handed
• Material: Cast zinc
• Lever Design: Newport
• Rose/Escutcheon: D Rose
• Strike Type: Curved lip strike (ANSI curved lip standard)
• Strike Lip Length: 1-1/4" (1.25 in)
• ANSI/BHMA Standard: A156.2
• Grade: ANSI/BHMA Grade 1
• Fire Rating: UL/cUL listed for 3-hour fire doors
• ADA Compliance: ADA compliant levers
• Minimum Stile: 4-1/2" (4.5 in / 114 mm)
• Latchbolt Throw: 1/2" (0.5 in / 13 mm), stainless steel
• Faceplate Dimensions: 2-1/4" x 1-1/8" (2.25 in x 1.125 in)
• Number of Keys: Two nickel silver change keys per lock standard
• Finish Code: 626
• Finish: Brushed Chrome / Satin Chrome
• Category: Commercial Locks; Cylindrical Levers; Lock Sets
• Door Application: Commercial doors
• Cores: Two CR8000 cores (less)
• Alternate Part Numbers: CLX3332-NZD-626-CT6D, CLX3332NZD626CT6D, CLX3332-NZD-626-CT6D-LFIC, CLX3332NZD626CT6DLFIC, CORCLX3332-NZD-626-CT6D
