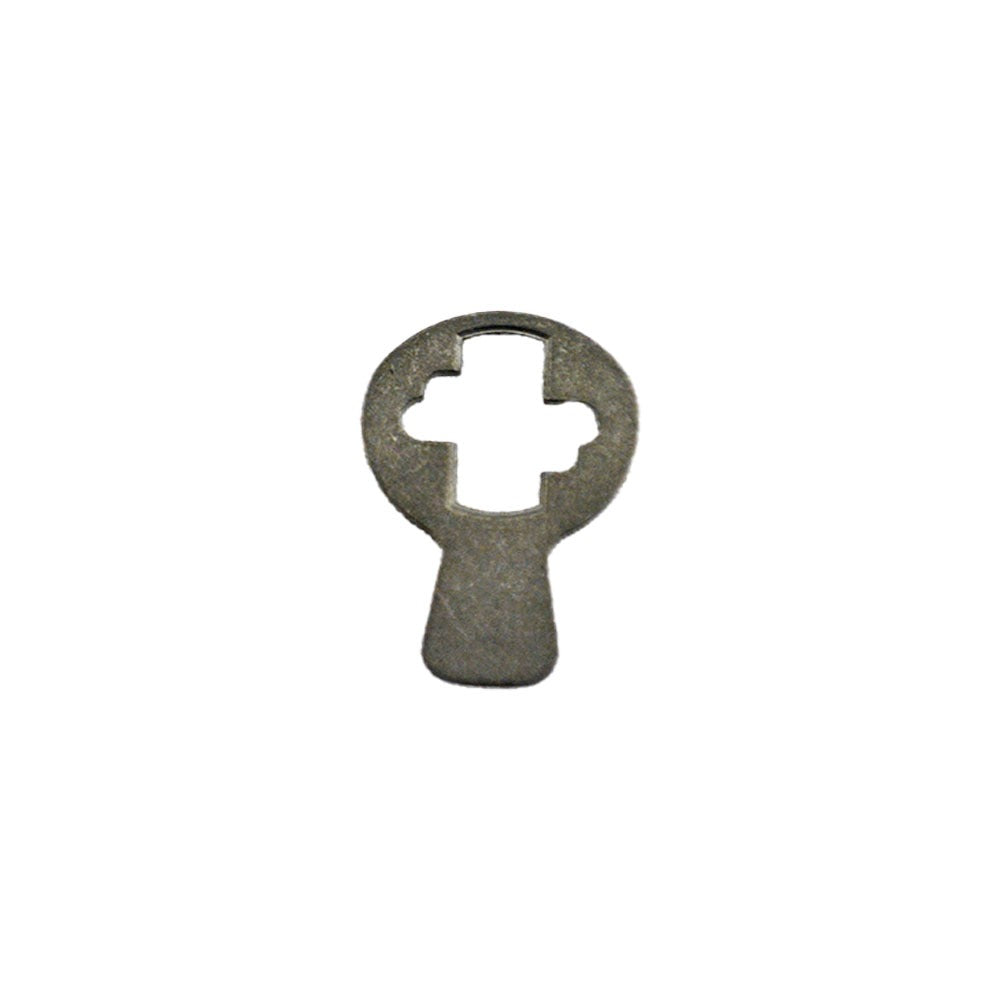

Corbin Russwin 756F517 Straight Steel Ic Cam A02

Product Description

The CORBIN RUSSWIN 756F517 is a straight steel interchangeable core (IC) cam designed for use in commercial and institutional door hardware applications. This small but critical component serves as the actuating element within an IC cylinder, translating key rotation into lock or latch operation. Built from steel for durability, it is intended for installation by licensed locksmiths or security hardware technicians working on commercial door hardware systems. At 0.1 pounds and compact in size, it is a direct-fit replacement component for keying and hardware maintenance applications.

This IC cam is suited for commercial and institutional facilities where interchangeable core cylinder hardware is in service. The A02 designation identifies the specific cam style, which determines fitment within a compatible cylinder body. It is typically installed during cylinder rekeying, core replacement, or hardware repair service calls on mortise locks, cylindrical locksets, or other IC-compatible door hardware assemblies.

Key Features

• Straight cam geometry for IC cylinder actuation
• Steel construction for long-term durability in commercial use
• Lightweight at 0.1 pounds for easy handling during service
• Compact profile: 1.1 inches long, 0.7 inches wide, 0.1 inches tall
• Sold individually (each) for targeted replacement needs

Compatibility

Designed as an OEM-style replacement cam for CORBIN RUSSWIN interchangeable core cylinder systems. The A02 cam style designation should be verified against the specific cylinder model before ordering.

Installation Notes

Installation should be performed by a qualified locksmith or commercial door hardware technician familiar with IC cylinder disassembly. Ensure the door is secured and the locking mechanism is fully relieved before disassembling the cylinder. Verify that the cam style and orientation are correct for the specific cylinder body before reassembly. Refer to the cylinder manufacturer documentation for proper cam seating and core insertion procedures.
