Copperfit 9012 Copper Street 90 Elbow 3/4 Inch

Product Description

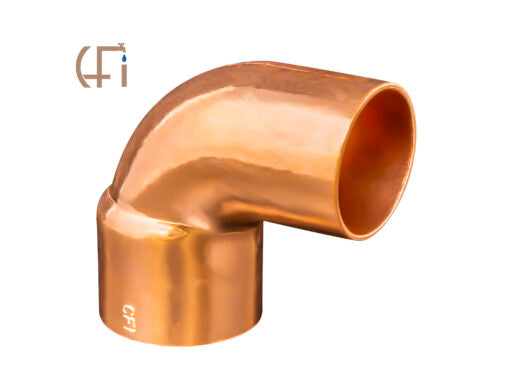

The COPPERFIT 9012 is a 3/4-inch copper street 90-degree elbow used to make a 90-degree directional change in copper water supply and drain lines. Street fittings accept a copper tube on one end and a sweat socket on the other, eliminating the need for an additional coupling when connecting to an existing fitting. This elbow is sized for 3/4-inch nominal copper tubing and is installed by licensed plumbers and experienced pipefitters working on residential and light commercial water distribution systems.

This fitting is suited for potable water supply lines, hydronic heating distribution piping, and general copper plumbing applications where a 90-degree turn is required. The street configuration makes it especially useful in tight spaces where back-to-back fittings would add unwanted length to the assembly. It is commonly used during new construction rough-in and retrofit service work.

Key Features

• Street by sweat socket end configuration eliminates the need for an extra coupling at direction changes
• 90-degree turn for routing pipe around corners and obstructions
• Sized for 3/4-inch nominal copper tubing
• Lightweight at 0.1 pounds, easy to handle in confined spaces
• Compatible with standard sweat soldering installation methods

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 3/4-inch nominal copper plumbing systems using sweat solder connections.

Installation Notes

Installation is performed by a licensed plumber following local plumbing codes and IPC guidelines. Shut off the water supply and fully drain the line before cutting or fitting. Clean all mating surfaces with emery cloth and apply flux before soldering to ensure a leak-free joint. Do not apply heat to a fitting that still contains moisture, as this will prevent proper solder flow.

Technical Specifications

• Size: 3/4 inches
• Type: Street 90-Degree Elbow
• Material: Copper
• Weight: 0.1 pounds
• UPC: 812042040216

Standard Information

• Brand: COPPERFIT
• Manufacturer Part Number: 9012
