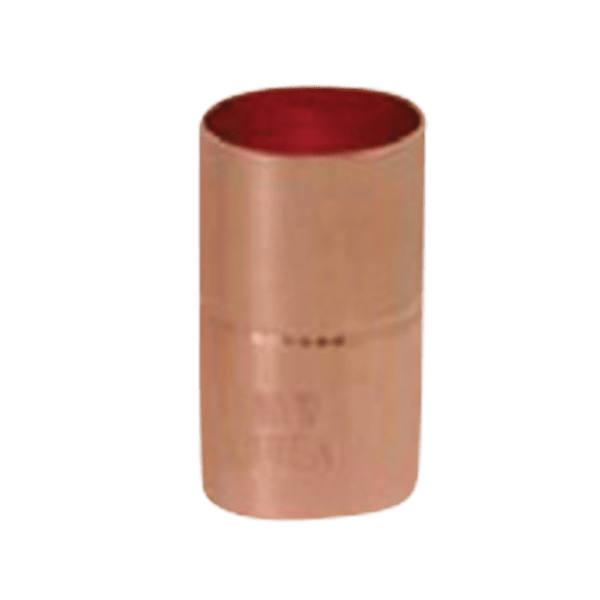

Copperfit 2024 Copper Coupling Dimple Stop 1-1/4 in

Product Description

The COPPERFIT 2024 is a 1-1/4 inch copper coupling with a dimple stop, designed for use in residential and light commercial plumbing systems. The dimple stop is an internal ridge machined into the fitting body that positions the pipe at the correct insertion depth, ensuring consistent solder joint geometry and reducing the chance of under-insertion. This coupling is a standard sweat-solder fitting installed by licensed plumbers and pipefitters working on potable water, hydronic heating, or general fluid distribution lines.

This fitting is suited for copper tubing installations where a full-length coupling with a centering stop is required. Common applications include water supply lines, in-wall rough-in work, and repair sections where a damaged pipe segment must be replaced. The dimple stop design makes it appropriate for standard sweat connections in both new construction and remodel work.

Key Features

• 1-1/4 inch nominal size for direct connection to standard copper tubing
• Dimple stop centers pipe at correct insertion depth for consistent solder joints
• Copper construction compatible with sweat-solder installation methods
• Lightweight at 0.14 pounds, suitable for overhead and tight-space installations

Compatibility

Designed as an OEM-style replacement and standard fitment for 1-1/4 inch copper tubing sweat-solder plumbing applications.

Installation Notes

Installation is performed by a licensed plumber using standard sweat-soldering tools including a torch, flux, and lead-free solder in compliance with applicable plumbing codes such as the IPC. Shut off the water supply and fully drain the line before cutting and fitting the coupling. Clean and flux both the pipe ends and the fitting socket thoroughly before applying heat to ensure a leak-free joint. Do not overheat the fitting, as excessive heat can damage the dimple stop or cause flux burnout.

Technical Specifications

• Nominal Size: 1-1/4 inches
• Connection Type: Sweat solder (dimple stop)
• Material: Copper
• Weight: 0.14 pounds
• UPC: 812042031344

Standard Information

• Brand: COPPERFIT
• Manufacturer Part Number: 2024
