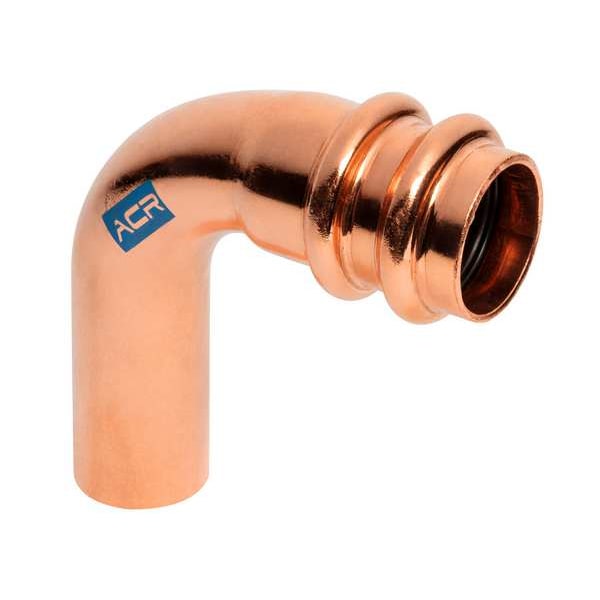

Copper RP02828 ACR press 3/4 inch 90 degree long radius street elbow

Product Description

The COPPER RP02828 ACR Press 3/4 Inch 90 Degree Long Radius Street Elbow is designed for joining copper tubing using press technology. This crimp elbow fitting offers a flameless, mechanical press joining solution for professionals. It is suitable for climate control and refrigeration applications, providing a secure 90-degree connection. Constructed from C12200 copper with an HNBR O-ring, it ensures durability and performance in demanding environments.

• Flameless, mechanical press joining for secure copper tubing connections.
• Designed for climate control and refrigeration applications.
• Constructed from C12200 copper with an HNBR O-ring for durability.

Product Highlights

This 90-degree street elbow adapter facilitates efficient and reliable copper pipe installations without the need for soldering.

Product Information

Standard Information

• Brand: COPPER
• Manufacturer Part Number: RP02828
• Country of Origin: Korea, Republic of

Technical Specifications

• Inventory SKU: ACRP34X90STELL
• Manufacturer Part Number: RP02828
• UPC: 685768448921
• Country of Origin: Korea, Republic of
• Overall Length: 2 23/32 in
• Tube Outer Diameter: 3/4 in
• Copper Tube Size: 3/4 in
• Pipe Size: 3/4 in
• Product Type: Crimp Elbow Fitting
• Standards: ASHRAE 15, ASME B31.5, CSA C22.2, IMC, IRC, ISO 14903, ISO 5149-2, UL 109, UL 1963, UL 207, UMC
• Fitting Shape: 90 Degrees Street Elbow Adapter
• Material Grade: C12200
• Connection Type Side A: FTG
• Compatible Tube Material: Copper
• O-Ring Material: HNBR
• Operating Temperature Maximum: 250 Degrees F
• Connection Type Side B: Press-Fit
• Fitting Material: Copper
• Application: Climate Control, Refrigeration
• Operating Temperature Minimum: -40 Degrees F
• Operating Pressure Maximum: 700 psi
• Connector Type: Adapter
• Center Stop Type: No Center Stop
• For Media Type: Solvents, Non-Potable Water
• Flange Outside Diameter: Not Applicable
