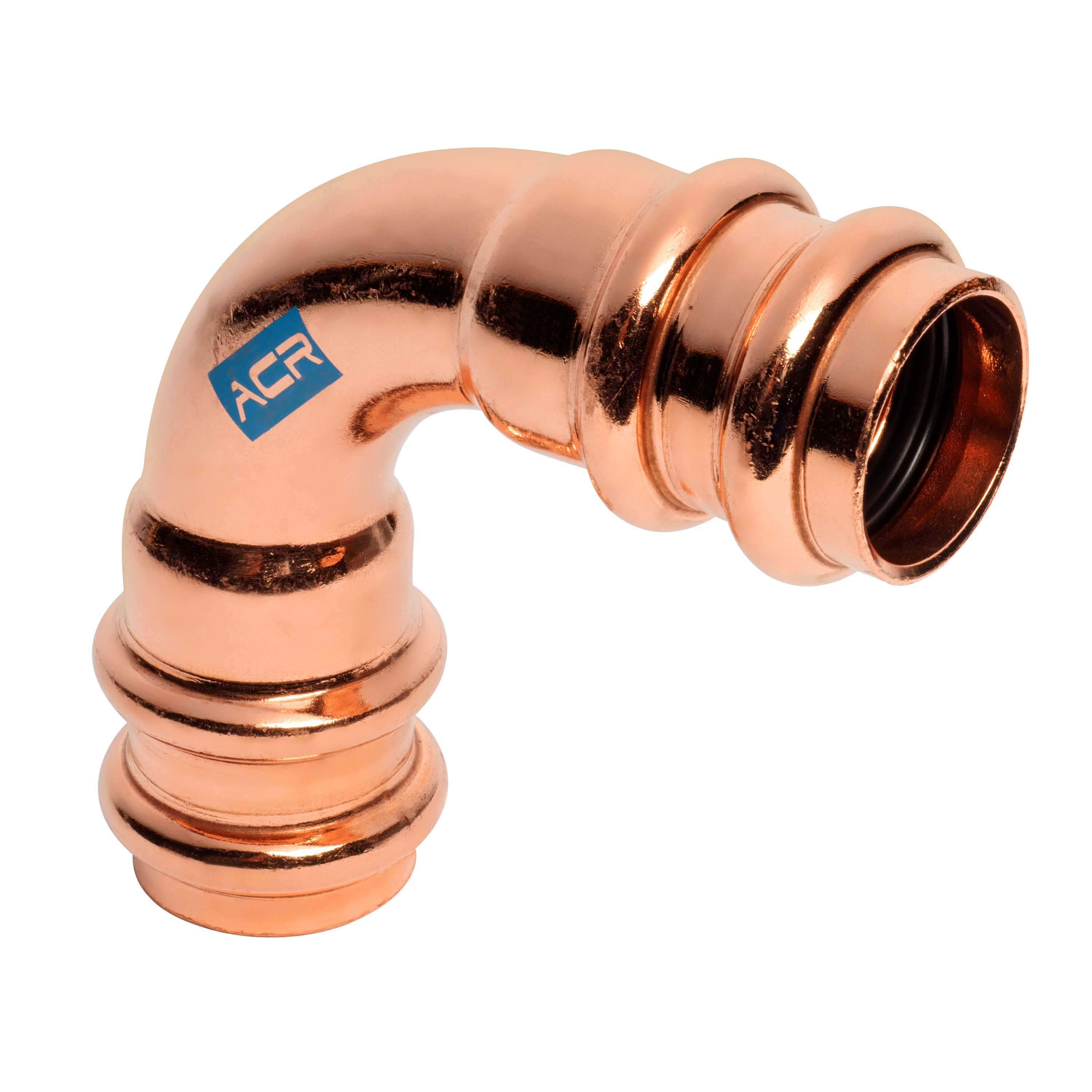

Copper RP02716 acr press long radius elbow 3/8 inches 90 degree

Product Description

The COPPER RP02716 is an ACR Press Long Radius Elbow, a crimp elbow fitting designed for climate control and refrigeration applications. This 90-degree elbow features press-fit connections for 3/8 inch copper tubing, ensuring secure and efficient installations. Constructed from C12200 grade copper with an HNBR O-ring, it offers a maximum operating pressure of 700 psi and operates within a temperature range of -40 to 250 degrees F. It is compatible with R410A tools and suitable for solvents and non-potable water.

• Specific Fitting Shape: 90 Degrees Elbow
• Maximum Operating Temperature: 250 Degrees F
• Maximum Operating Pressure: 700 psi

Product Highlights

Durable copper press-fit elbow for 3/8 inch tubing, suitable for climate control and refrigeration systems.

Product Information

Standard Information

• Brand: COPPER
• Manufacturer Part Number: RP02716
• Country of Origin: Korea, Republic of

Technical Specifications

• MPN: RP02716
• Brand: COPPER
• Inventory SKU: ACRP38X90ELL
• UPC: 685768444121
• Country of Origin: Korea, Republic of
• Copper Tube Size: 3/8 in
• Tube Outer Diameter: 3/8 in
• Item Type: Crimp Elbow Fitting
• Fitting Shape: 90 Degrees Elbow
• Standards: ASHRAE 15, ASME B31.5, CSA C22.2, IMC, IRC, ISO 14903, ISO 5149-2, UL 109, UL 1963, UL 207, UMC
• Maximum Operating Temperature: 250 Degrees F
• Compatible Tube Material: Copper
• Maximum Operating Pressure: 700 psi
• Connection Type: Press-Fit
• O-Ring Material: HNBR
• Compatible Tool Brand: R410A
• Material Grade: C12200
• Application: Climate Control, Refrigeration
• Fitting Material: Copper
• Minimum Operating Temperature: -40 Degrees F
• Center Stop Type: No Center Stop
• For Media Type: Solvents, Non-Potable Water
