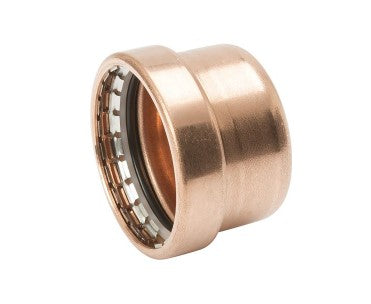

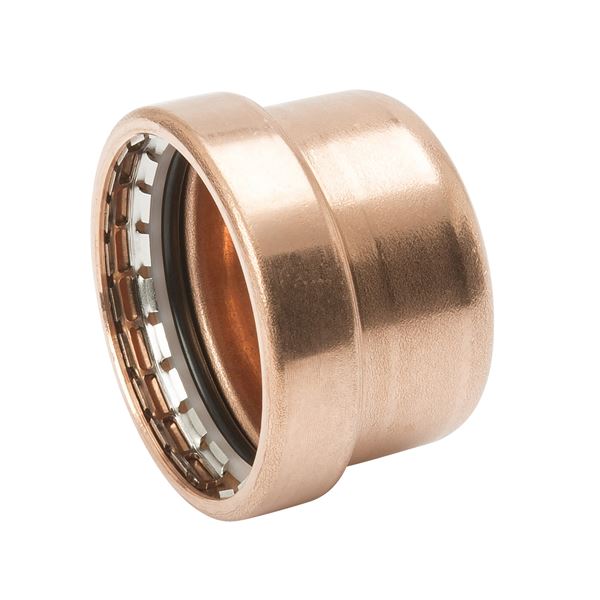

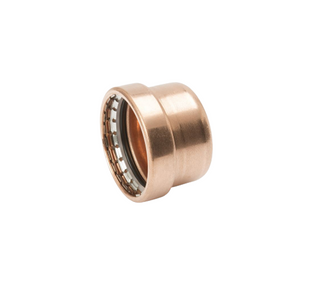

Copper Press Fittings PF07018 4-in Copper Press Cap

Product Description

The Copper Press Fittings PF07018 is a four-inch copper cap made for plumbing and mechanical uses. This fitting is made from wrought copper and meets local code requirements for both above and below ground applications. It is ideal for systems involving potable water, chilled water, hydronic heating, and compressed air.

• Fitting Size: 4 inches
• End Connection Type: Press
• Maximum Operating Pressure: 200 psi

Product Highlights

This cap provides a reliable press end connection for secure fittings in plumbing jobs.

Product Information

Standard Information

• Brand: Copper Press Fittings
• MPN: PF07018

Technical Specifications

• Material: Wrought Copper
• Fitting Type: Cap
• Overall Length: 2.56 inches
• Overall Height: 4.68 inches
• Overall Width: 4.68 inches
• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• Application: Potable Water, Hydronic Heating, Compressed Air
• Temperature Rating: -20 to 250 °F
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Lead Law Compliance: Compliant and Certified
• UL Listed: No
• FM Approved: No
