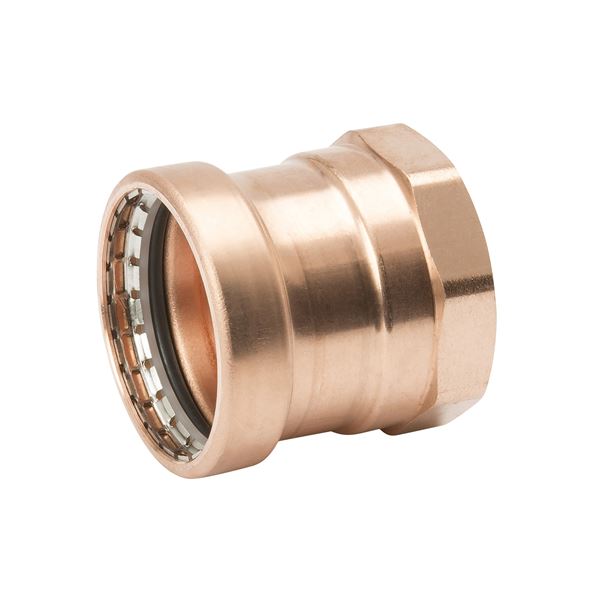

Copper Press Fittings PF01296 Copper Press Female Adapter 2-1/2

Product Description

The Copper Press Fittings PF01296 is a practical copper female adapter used in plumbing and mechanical applications. This fitting has a press connection on one end and a female National Pipe Thread connection on the opposite end. It is ideal for potable water systems, hydronic heating, and other applications.

• Dual connection types: press and FNPT.
• Constructed from durable copper material.
• Meets industry standards for reliability.

Product Highlights

This adapter is designed to join ASTM B88 copper tubes of various types, ensuring compatibility and ease of installation.

Product Information

Standard Information

• Material: Wrot Copper
• Fitting Type: Female Adapter

Technical Specifications

• End Type: Press
• End Size: 2-1/2 inches
• Second End Type: FNPT
• Second End Size: 2-1/2 inches
• Operating Temperature Range: -20 to 250 °F
• Operating Pressure (Max): 300 psi
• Overall Length: 2.99 inches
• Overall Height: 3.18 inches
• Overall Width: 3.18 inches
• Standards: ASME B16.51, NSF/ANSI 61, CSA TIL-MSE-13
