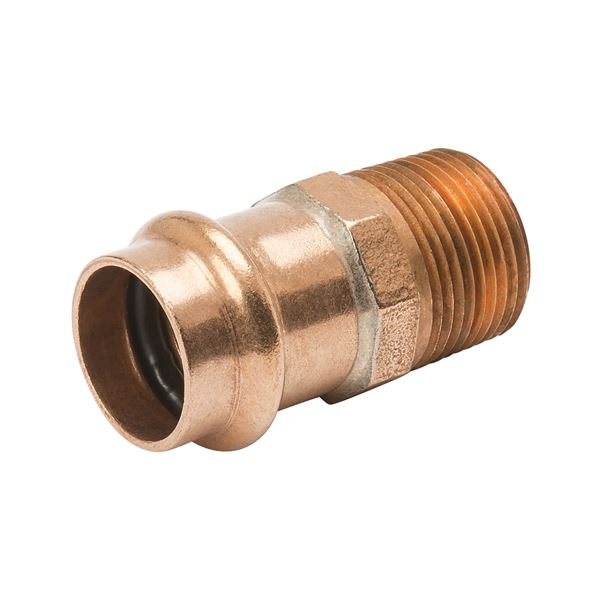

Copper Press Fittings PF 01188 Copper Male Reducing Adapter Press x MNPT 2 in x 1-1/2 in

Product Description

Copper Press Fittings PF 01188 is a press-fitting male reducing adapter that transitions a 2 in press connection to a 1-1/2 in male NPT thread. It is lead-free, rated to 300 psi, and designed for plumbing and mechanical applications including domestic water and hydronic piping. The adapter meets ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, and CSA TIL-MSE-13 standards and is compatible with PRS copper-press fittings.

• Press connection to male NPT reducing adapter; connects 2 in press to 1-1/2 in MNPT
• Lead-free construction; compatible with PRS copper-press fittings; meets ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Operating range -20 F to 250 F; maximum operating pressure 300 psi; overall length 3.15 in

Product Highlights

Lead-free copper press male reducing adapter (2 in press to 1-1/2 in MNPT) rated 300 psi, -20 F to 250 F, compliant with major plumbing standards.

Product Information

Standard Information

• Brand: COPPER PRESS FITTINGS
• Manufacturer Part Number: PF 01188

Technical Specifications

• Manufacturer Part Number: PF 01188
• Brand: Copper Press Fittings
• Product Type: Male reducing adapter
• Connection 1 Type: Press
• Connection 1 Size: 2 in
• Connection 2 Type: Male NPT
• Connection 2 Size: 1-1/2 in
• Material: Lead-free copper
• Compatibility: Compatible with PRS copper-press fittings
• Maximum Operating Pressure: 300 psi
• Operating Temperature Min: -20 F
• Operating Temperature Max: 250 F
• Standards: ASME B16.51; IAPMO PS-117; NSF/ANSI 61; NSF/ANSI 372; CSA TIL-MSE-13
• Overall Length: 3.15 in
• Overall Height: 2.38 in
• Overall Width: 2.38 in
• Dimension A: 1.42 in
• Weight: 0.92 lb
