Copper Press Fittings PF 01145 male reducing adapter 3/4 feet' x 1 feet'

Product Description

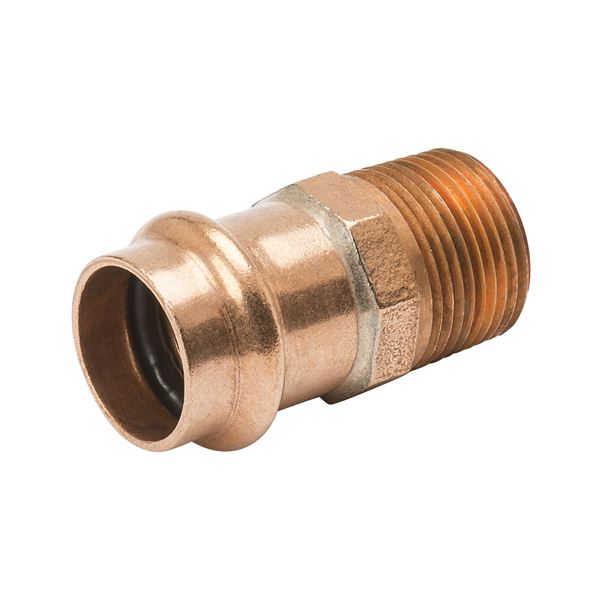

The COPPER PRESS FITTINGS PF 01145 male reducing adapter is a copper male adapter with press and MNPT end types. It is suitable for plumbing or mechanical applications, offering a flameless joining alternative. The adapter is LEAD FREE and adheres to ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, and CSA TIL-MSE-13 standards.

• Flameless joining alternative for plumbing or mechanical applications.
• Available sizes ranging from 1/2 to 4 in diameter.
• Operating temperature range from -20 F to 250 F with a maximum operating pressure of 300 psi.

Product Highlights

This copper male adapter ensures secure connections in plumbing and mechanical systems, offering a reliable, flameless joining solution.

Product Information

Standard Information

• Brand: COPPER PRESS FITTINGS
• Manufacturer Part Number: PF 01145

Technical Specifications

• Material: LEAD FREE
• Operating Temperature [Min]: -20 F
• Operating Temperature [Max]: 250 F
• Operating Pressure [Max]: 300 psi
• End Type: Press
• End Size: 3/4 in
• Second End Type: MNPT
• Second End Size: 1 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 2.24 in
• Overall Height: 1.32 in
• Overall Width: 1.32 in
