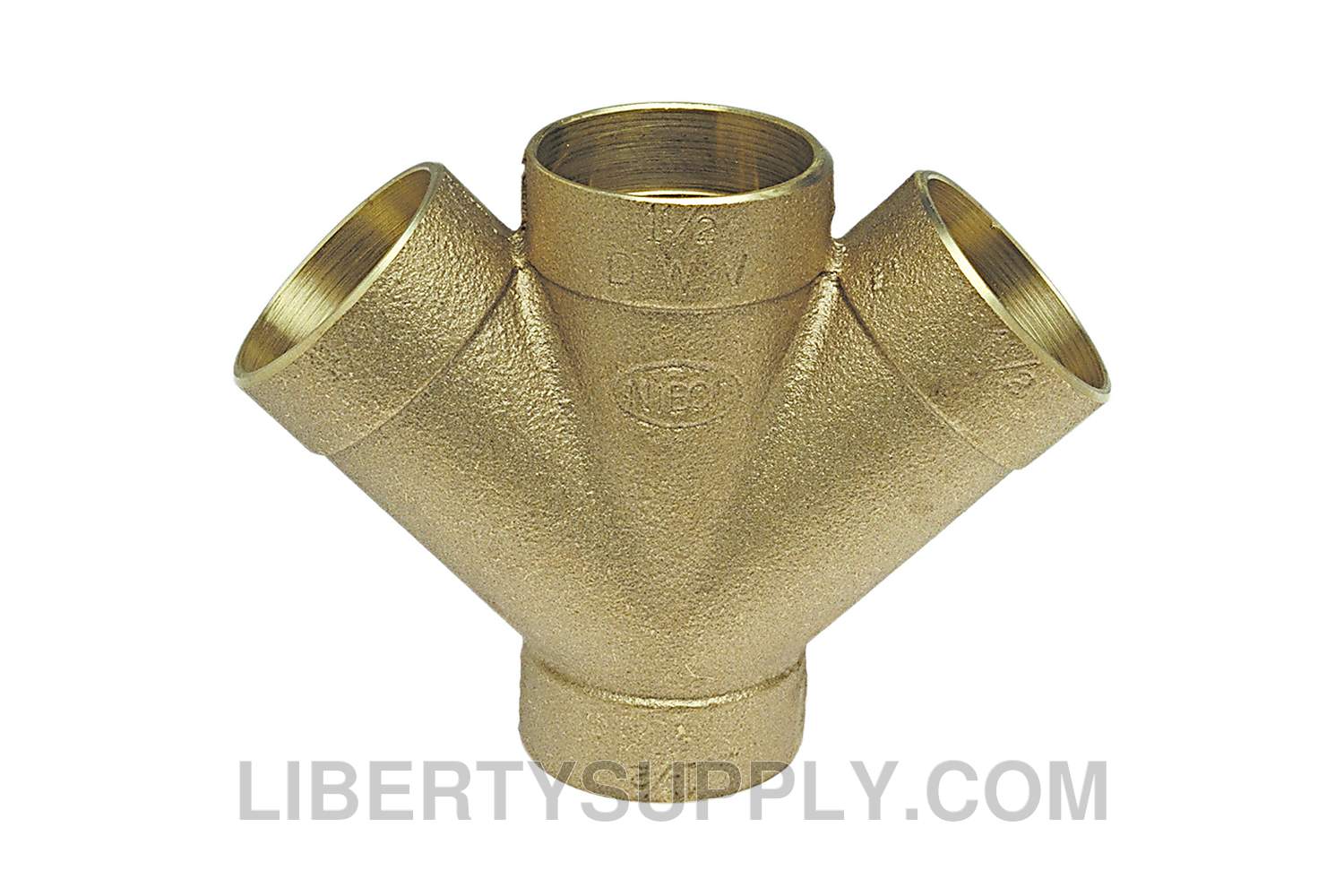

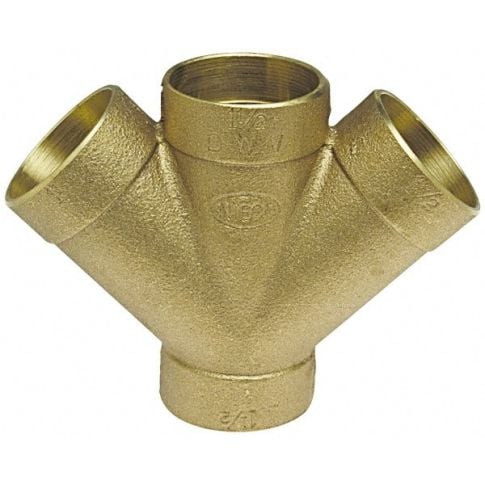

Copper Fitting E265450 Copper Fitting 2-in Cast Bronze DWV 45-degree Double Wye C x C x C

Product Description

The Copper Fitting E265450 is a cast bronze DWV 45-degree double wye fitting with solder cups. This fitting is suitable for use in both residential and commercial drain, waste, and vent systems. It enables a connection in a continuous pipeline while branching out in two directions.

• Bend angle of 45 degrees for effective drainage.
• Connection type is C x C x C.
• Constructed from durable cast bronze material.

Product Highlights

The Copper Fitting E265450 is designed for efficient drainage in plumbing systems, ensuring reliability in both residential and commercial applications.

Product Information

Standard Information

• Manufacturer: NIBCO
• Part Number: E265450

Technical Specifications

• Fitting Type: Y (Wye)
• Wye Type: Straight
• Nominal Pipe Size: Two inches
• Bend Angle: 45 degrees (1/8 bend)
• Material: Bronze
• UPC Code: 039923511942
• Length: Six point five six inches
• Width: Four point six six inches
• Height: Two point four inches
• Application: DWV Drain / Waste / Vent
• Connection Type: C x C x C
• Weight: Two point two six three pounds
• End Connections: C x C x C x C
