Product Description

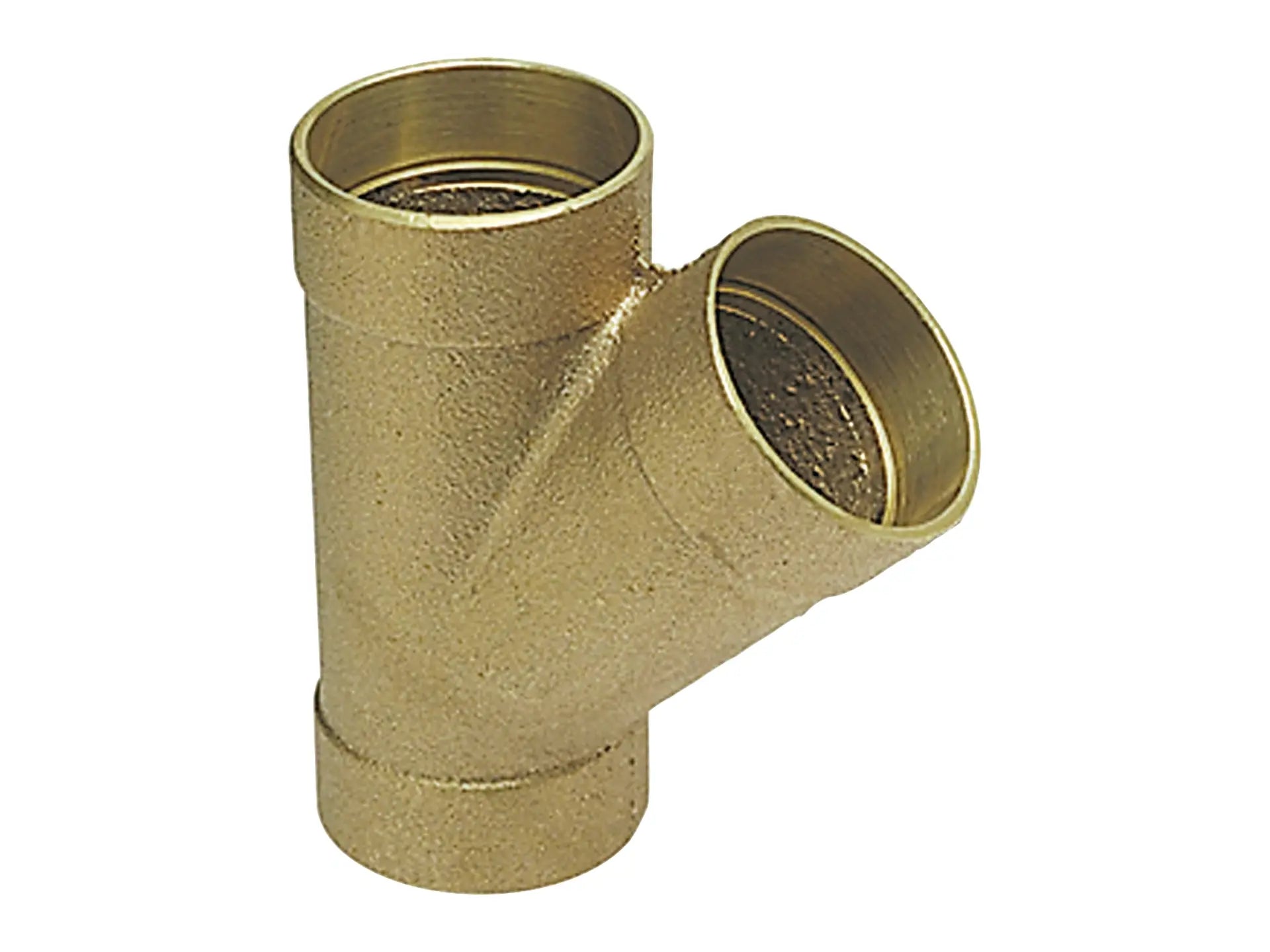

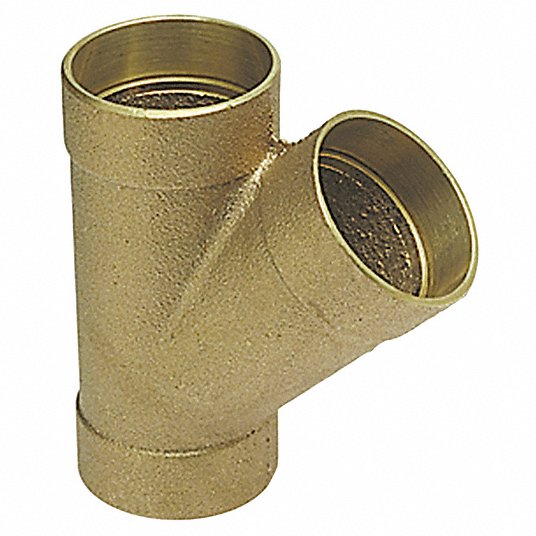

The Copper Fitting E090700 is a copper wye with 3 X 3 X 2 DWV connections. This fitting is used in residential and commercial drain, waste, and vent systems, allowing for connections in continuous pipelines and branching out in different directions. It connects to copper tubing or other fittings by heating or soldering for a permanent, leaktight connection.
- Dezincification resistant
- ASTM B584 Alloy C84400
- Material and workmanship per ASME B16.23
Product Highlights
This copper wye fitting is ideal for drain, waste, and vent systems, providing a durable and reliable connection.
Product Information
Standard Information
-
Brand: COPPER FITTING
-
Manufacturer Part Number: E090700
-
Country of Origin: US
Technical Specifications
-
Category: Wye
-
Brand: COPPER FITTING
-
Manufacturer: NIBCO
-
Part Number: E090700
-
Model: 810
-
Type of Fitting: Y (Wye)
-
Type of Wye: Reducing
-
Nominal Pipe Size: 3" x 3" x 2"
-
Fitting Bend Angle: 45° (1/8 Bend)
-
Material: Bronze
-
UPC Code: 039923507860
-
Length: 5.41"
-
Width: 4.94"
-
Height: 3.31"
-
Country of Origin: US
-
Fitting Shape: Wye
-
Fitting Material: C84400 Bronze
-
Temperature Range: -20 °F to 400 °F
-
Compatible Tube Material: Copper
-
Side A Connection: Cup
-
Side A Compatible Tube Outer Diameter: 3-3/8 in
-
Side A Copper Tube Size: 3 in
-
Side B Connection: Cup
-
Side C Compatible Tube Outer Diameter: 3-3/8 in
-
Side B Copper Tube Size: 3 in
-
Side C Connection: Cup
-
Side C Copper Tube Size: 2 in
-
Application: Drainage; Product Waste
-
Standards: ASME/ANSI B16.22; MSS SP-104; NSF/ANSI/CAN-61
