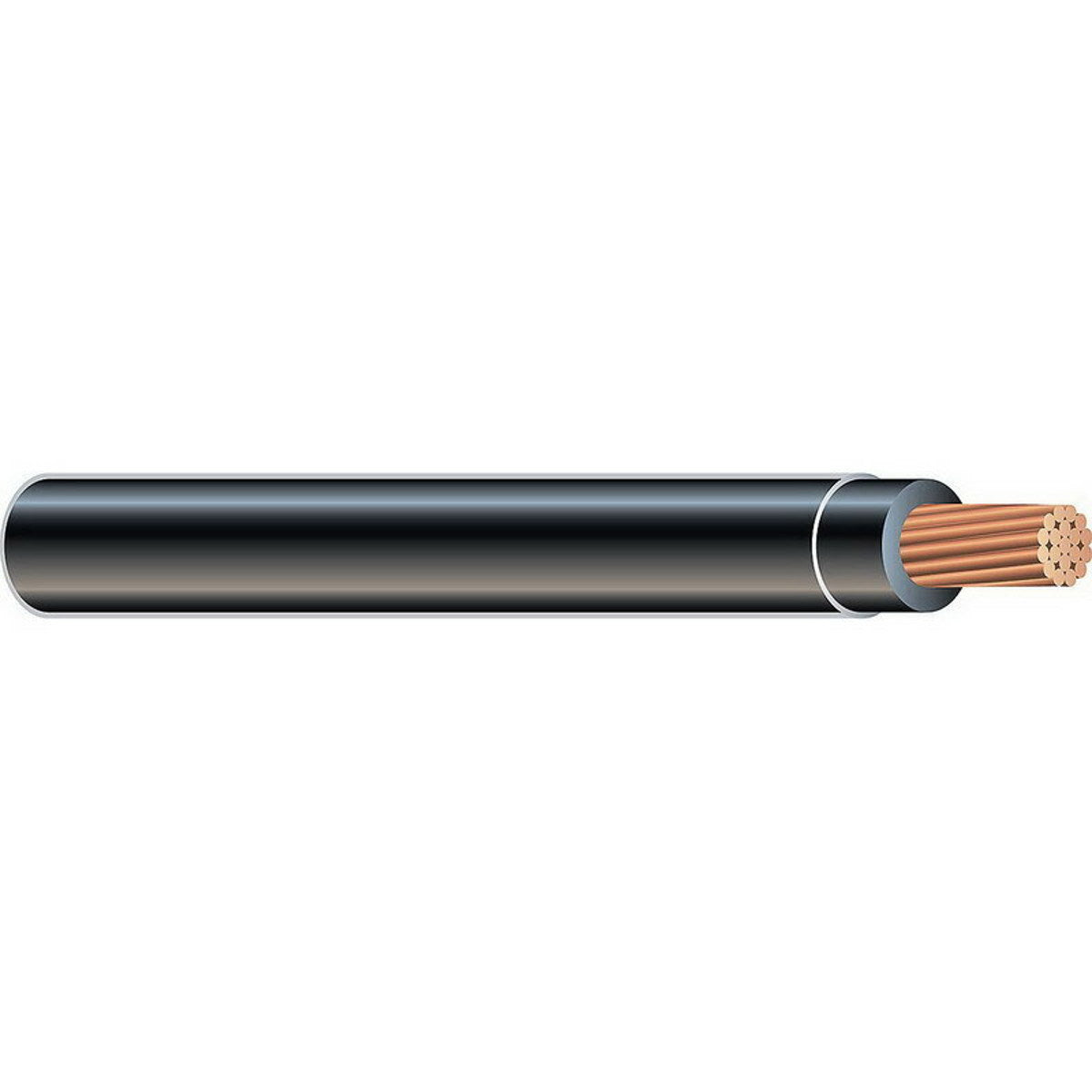

Copper Building Wire THHN-3/0-BLK-19STR-CU-1000R

Product Description

The Copper Building Wire THHN-3/0-BLK-19STR-CU-1000R is a sturdy cable designed for various electrical applications. This wire is made from copper with a stranded configuration, offering flexibility and increased conductivity. It is ideal for both residential and commercial projects, providing reliable performance in wiring setups.

• Conductor is made of copper, ensuring high conductivity.
• Jacket made of nylon offers protection against abrasion.
• Insulation made of PVC enhances durability and resistance to chemicals.

Product Highlights

This THHN cable is suitable for high amperage applications and is rated for voltage up to six hundred volts. It can withstand temperatures up to ninety degrees Celsius, making it ideal for a variety of environments.

Product Information

Standard Information

• Catalog Number: THHN-3/0-BLK-19STR-CU-1000R
• Manufacturer: Non-Specific Manufacturer

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 3/0 AWG
• Insulation Material: PVC
• Jacket Material: Nylon
• Number of Conductors: 19 Strands
• Stranding: Stranded
• RoHS Indicator: Yes
• Length: 1000 Feet
• Weight: 0.5670 Pounds
• Voltage Rating: 600V
• Temperature Rating: 90 Degrees C
• Cable Diameter: 0.579 Inches
• Outside Diameter: 0.579 Inches
