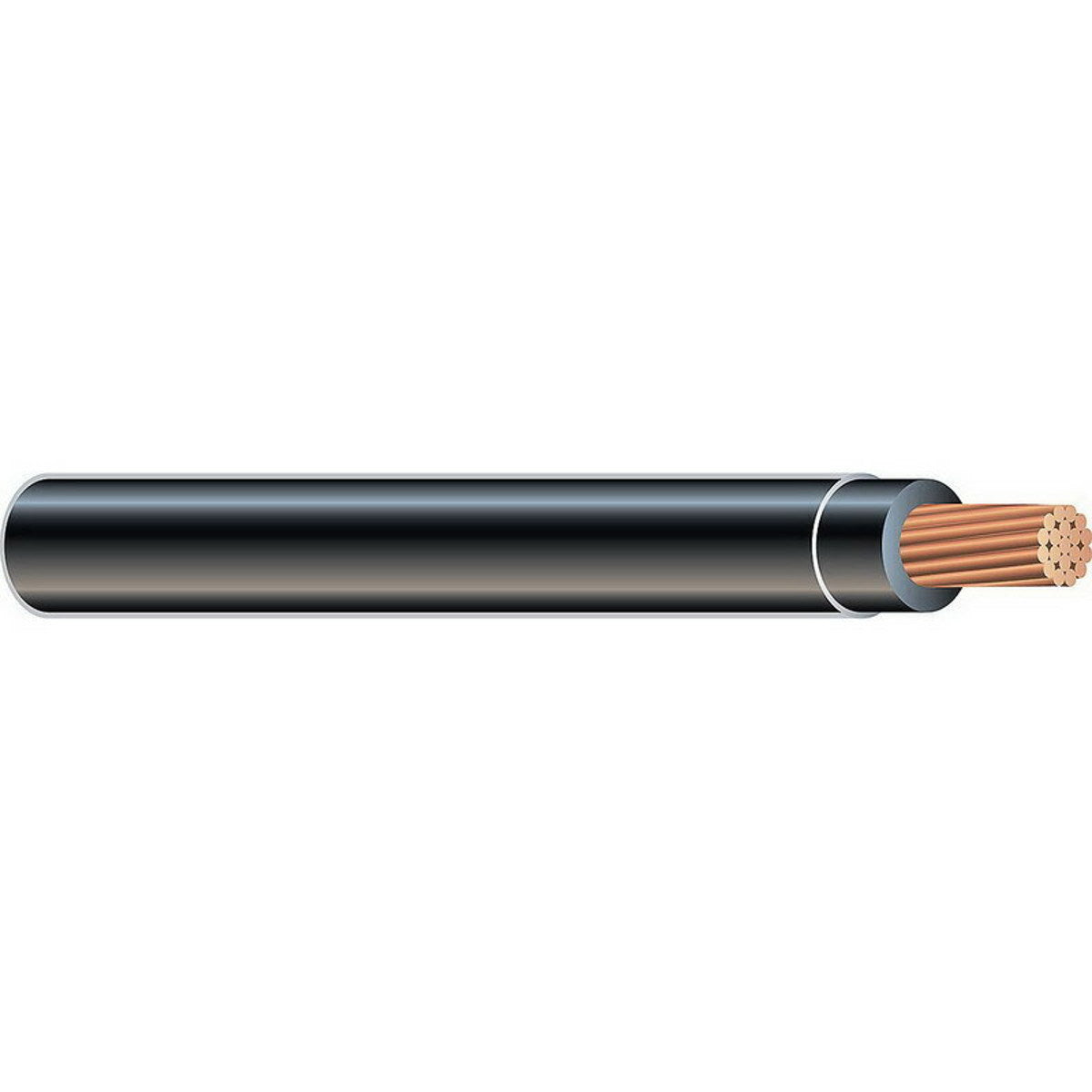

Copper Building Wire THHN-2-BLK-19STR-CU-1000R

Product Description

The Copper Building Wire THHN-2-BLK-19STR-CU-1000R is designed for a variety of electrical applications. This wire features a two AWG size and consists of nineteen strands of copper conductors. Its PVC insulation provides protection, while the nylon jacket adds durability. Ideal for use in residential, commercial, and industrial settings, this wire supports reliable electrical connections.

• Stranded copper conductor with nineteen strands
• Rated for up to 600 volts
• Temperature rating of ninety degrees Celsius

Product Highlights

The THHN wire is suitable for building wiring and is compliant with safety standards, making it a preferred choice among electricians.

Product Information

Standard Information

• Catalog Number: THHN-2-BLK-19STR-CU-1000R
• Manufacturer: Non-Specific Manufacturer

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 2 AWG
• Stranding: Stranded
• Number of Conductors: 19 Strands
• Insulation Material: PVC
• Jacket Material: Nylon
• Cable Diameter: 0.528 inches
• Outside Diameter: 0.528 inches
• Voltage Rating: 600V
• Amperage Rating: 110
• Temperature Rating: 90 Degrees C
• UPC: 980100233013
• Weight: 0.2320 pounds
• Length: 1000 feet
