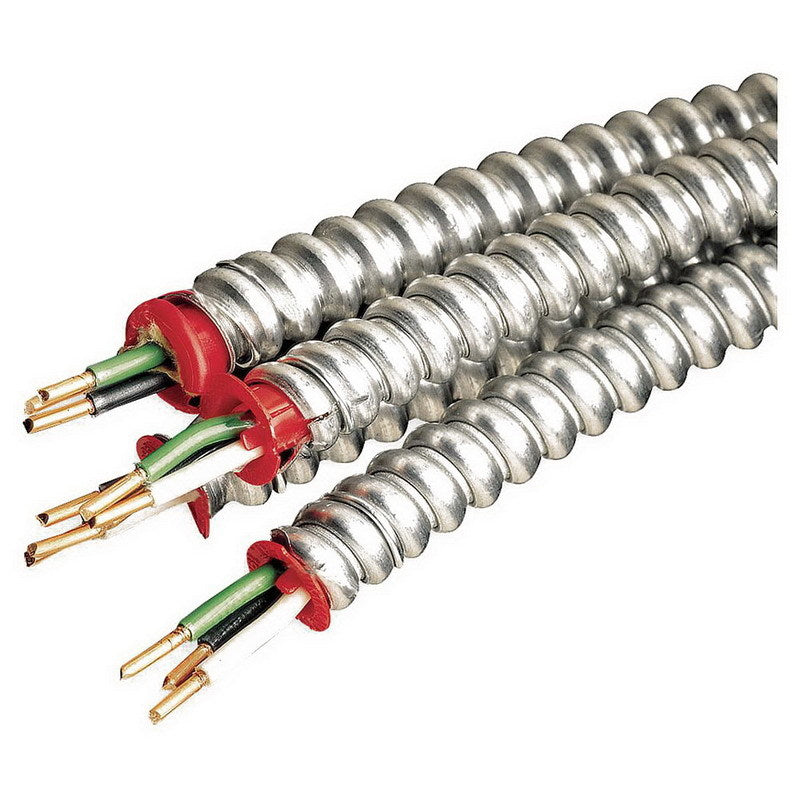

Copper Building Wire MC-AL-10/2-SOL-CU-250CL Type MC Aluminum Armored Cable With Grounding Wire, 600 V, (2) 10 AWG Solid Copper Conductor, 250 ft Coil

Product Description

The Copper Building Wire MC-AL-10/2-SOL-CU-250CL is a type MC aluminum armored cable that includes a grounding wire. This cable has a voltage rating of 600 volts and is constructed with two solid copper conductors of 10 AWG size. The cable comes in a coil length of two hundred fifty feet. It is suitable for use in various electrical applications.

• Voltage Rating: 600 V
• Conductor Size: 10 AWG, Solid
• Length: 250 ft

Product Highlights

This cable is ideal for power distribution and can be used in multiple settings such as branch circuits, feeders, and service installations.

Product Information

Standard Information

• Brand: Copper Building Wire
• UPC: 980100447069

Technical Specifications

• Type: Type MC
• Amperage Rating: 30 A
• Application: Branch, Feeder and Service Power Distribution, Power, Lighting, Control and Signal Circuits, Fished or Embedded in Plaster, Concealed or Exposed Installations as Aerial Cable on a Messenger, Installation in Cable Tray and Approved Raceways
• Conductor Size: 10 AWG
• Conductor Type: Solid
• Country of Origin: UU
• Insulation Material: THHN/THWN
• Jacket Material: Aluminum/PVC
• Number of Conductors: 2
• Outside Diameter: 0.58 in
• Temperature Rating: 90 deg C
• Mfg Standards/Approvals: NEC Certified|UL 83/1569/1063
• Length: 250 ft
