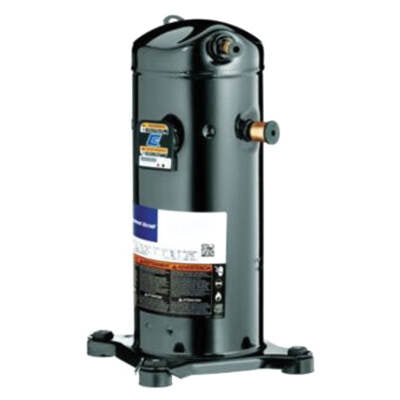

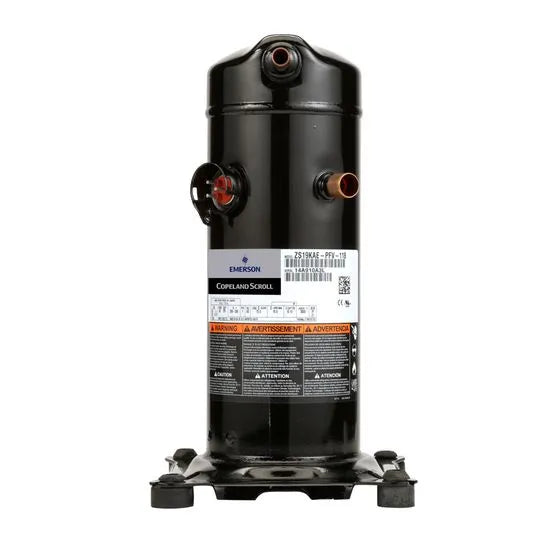

Copeland ZS19KAE-TF5-818 Scroll Compressor 3 Ton 19,000 BTU/hr 208/230/3 POE Oil

Product Description

The Copeland ZS19KAE-TF5-818 is a scroll compressor designed for refrigeration applications. This unit operates on 200 to 230 volts, three-phase power, making it suitable for various cooling systems. It has a cooling capacity of 19,000 BTU per hour. The compressor is compatible with multiple refrigerants including R-22, R-134a, R-404A, and R-407C.

• Voltage range: 208-230V, 3-phase
• Medium to high temperature usage
• Discharge line size: 1/2 inches

Product Highlights

Reliable performance for refrigeration needs with efficient operation and low sound levels.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZS19KAE-TF5-818

Technical Specifications

• Cooling Capacity: 19,000 BTU/hr
• Refrigerant Compatibility: R-22, R-134a, R-404A, R-407C
• Voltage: 208-230V
• Phase: Three
• Frequency: 60Hz
• Liquid Line Size: 1/2 inches
• Suction Line Size: 3/4 inches
• Mounting Dimensions: 7.5 inches x 7.5 inches
• Dimensions: 9.69 inches x 9.69 inches x 15.72 inches
• Weight: 50 lbs
