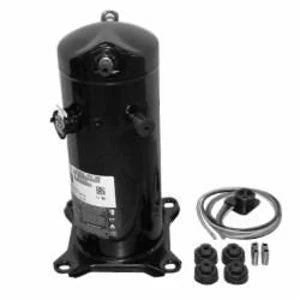

Copeland ZS09KAE-PFV-818 Scroll Compressor 1-1/2 Ton 9000 BTU/hr R404A

Product Description

The Copeland ZS09KAE-PFV-818 is a 230V, single-phase scroll compressor. This unit is suitable for refrigeration applications and works with various refrigerants, including R-22, R-404A, and R-407C. It delivers a cooling capacity of 8920 BTU/hr and has dimensions of seven and a half inches by seven and a half inches for mounting. The compressor weighs fifty pounds and features a thermal overload protector and a vibration isolation system for quieter operation.

• Compatible with multiple refrigerants including R-404A, R-22, and R-134a.
• Cooling capacity rated at 8920 BTU/hr.
• Compact design with mounting dimensions of 7.5 inches x 7.5 inches.

Product Highlights

This compressor is engineered for reliable operation in medium to high temperatures. It is built to start under any load and operates with lower sound and vibration levels.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZS09KAE-PFV-818
• Weight: 50 lbs

Technical Specifications

• Cooling Capacity: 8920 BTU/hr
• Power Rating: 1 hp
• Voltage Rating: 208-230/1/60
• Refrigerant Types: R-22, R-404A, R-407C, R-134a, R-507
• Mounting Dimensions: 7.5 inches x 7.5 inches
• Weight: 50 lbs
• Suction Line Size: 3/4 inches
• Discharge Line Size: 1/2 inches
