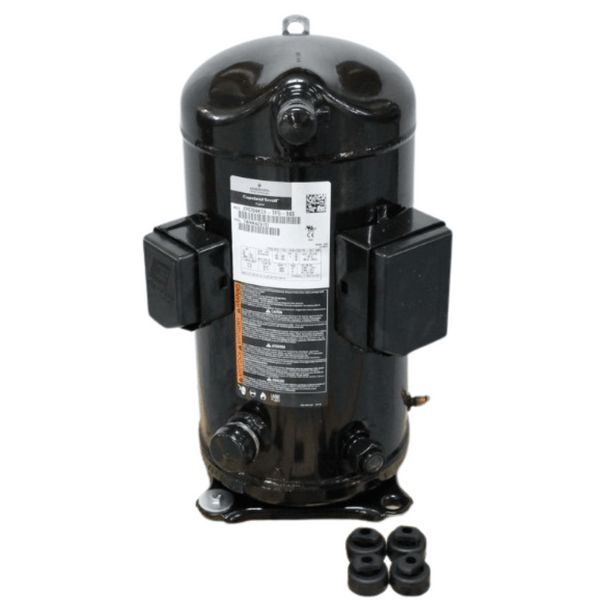

Copeland ZRD94KCE-TF5-965 Digital Scroll Compressor

Product Description

The Copeland ZRD94KCE-TF5-965 is a digital scroll compressor with variable capacity modulation down to ten percent of full load. This compressor is ideal for various HVAC applications, including VAV systems and dedicated outside air units. It provides precise control over temperature and humidity, making it suitable for environments where accuracy is essential.

• Variable capacity modulation down to ten percent of full load.
• Designed for R407C refrigerant use.
• Suitable for systems where modulation and precise control are required.

Product Highlights

This compressor is built for efficiency and reliability, supporting systems with multiple compressors while minimizing the need for frequent starts and stops.

Product Information

Standard Information

• Brand: Copeland
• Application: A/C

Technical Specifications

• MPN: ZRD94KCE-TF5-965
• Refrigerant: R407C
• Voltage: 208-240/3
• Rated Load Amps: 32.1
• Oil: Polyol Ester
• Oil Recharge (Oz.): 81
• Connection Discharge (In.): 7/8 S
• Connection Suction (In.): 1.125 S
• Mount (In.): 7.5 x 7.5
• Height (In.): 18.75
• Shipping Weight (Lbs.): 127.00
• BTU: 94,000
