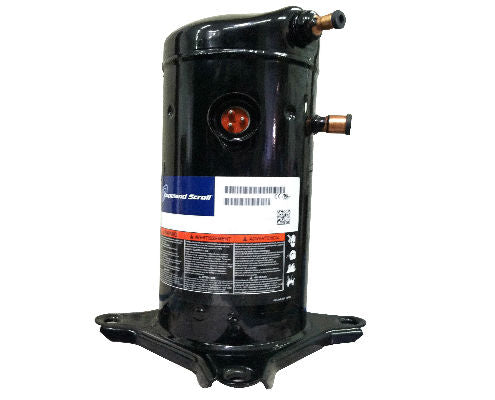

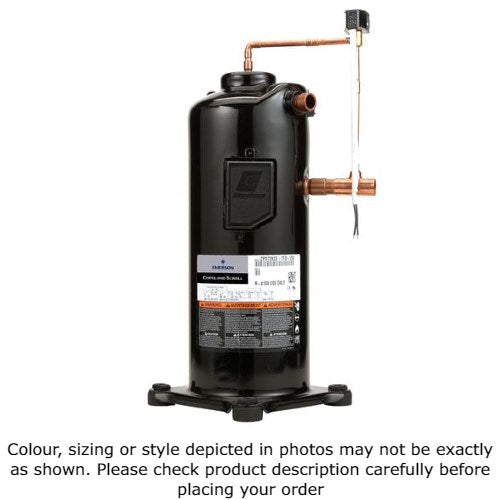

Copeland ZRD61KCE-TFD-950 Scroll Compressor

Product Description

The Copeland ZRD61KCE-TFD-950 is a scroll compressor suitable for air conditioning and comfort cooling applications. It is compatible with R407C and R134a refrigerants. This product features advanced scroll technology that offers both axial and radial compliance, ensuring efficient operation.

• Designed for air conditioning use
• Utilizes scroll technology for better efficiency
• Hermetic design with motor protection

Product Highlights

This compressor is built for variable capacity applications, allowing modulation capabilities to optimize performance.

Product Information

Standard Information

• Brand: Copeland
• Manufacturer Part Number: ZRD61KCE-TFD-950

Technical Specifications

• Refrigerant: R22, R407C, R404A, R410
• Voltage: 380-420V, 50 Hz, 3pH; 460V, 60Hz, 3pH
• Application: Air Conditioning
• Horsepower: 5
• Cooling System: Air Cooling
• Structure Type: Closed Type
• Compress Level: Single-Stage
• Capacity: 14950W
• Power Input: 4550
• Current: 8.1
• Displacement (CFH): 612.5
• Displacement (In³/Rev): 5.04
• Oil Type: Polyolester (POE)
• Oil Recharge (Oz.): 60
• Rated Load Amps: 10.0
• Connection Discharge (In.): 1/2 S
• Connection Suction (In.): 7/8 S
• Height (In.): 19.46
• Length (In.): 9.69
• Width (In.): 9.69
• Weight (lbs): 84
• RPM: 3,500
• Electrical Connection Type: Terminal Block
• Motor Design: 3 Phase
• Motor Overload Protection: Internal Inherent
• Mounting Length (In.): 7.5
• Mounting Width (In.): 7.5
• Liquid Line Size (In.): 1/2 Sweat Stub
• Suction Line Size (In.): 7/8 Sweat Stub
