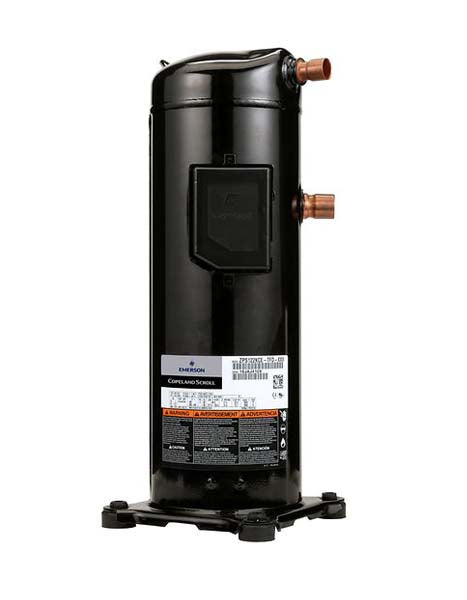

Copeland ZR94KCETFD Copeland Scroll 380-420V 50Hz

Product Description

The COPELAND ZR94KCETFD is a Copeland Scroll compressor engineered for air conditioning systems. This 3-phase unit operates on 380-420V at 50Hz and utilizes R407C refrigerant. It delivers a cooling efficiency (EER) of 11.4 and a robust capacity of 78,600 BTU. With a nominal horsepower of 7.8 and an input power of 6,950 W, it provides effective and consistent cooling performance for various HVAC applications.

• Designed for air conditioning applications, compatible with R407C refrigerant.
• Operates on 3-phase 380-420V, 50Hz power supply with a nominal 7.8 HP.
• Achieves a cooling efficiency (EER) of 11.4 and a capacity of 78,600 BTU.

Product Highlights

Efficient 3-phase scroll compressor for air conditioning, featuring R407C compatibility and 78,600 BTU capacity.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR94KCETFD

Technical Specifications

• Refrigeration Type: R407C
• Cooling Efficiency (EER): 11.4
• Capacity (BTU): 78,600
• Voltage: 380-420V 50Hz
• Phase: 3
• Application: Airconditioning
• Nominal Horsepower: 7.8 HP
• Capacity (W): 23,000 W
• Input Power: 6,950 W
• Current: 12.9 A
• COP: 3.34 W/W
• Displacement: 127.2 cc/Rev
• Oil Quantity: 2.51 liters
• Net Weight: 57.2 kg
• Locked Rotor Amps (LRA): 95.0 A
• Sound Pressure: 63.0 dBA @1m
