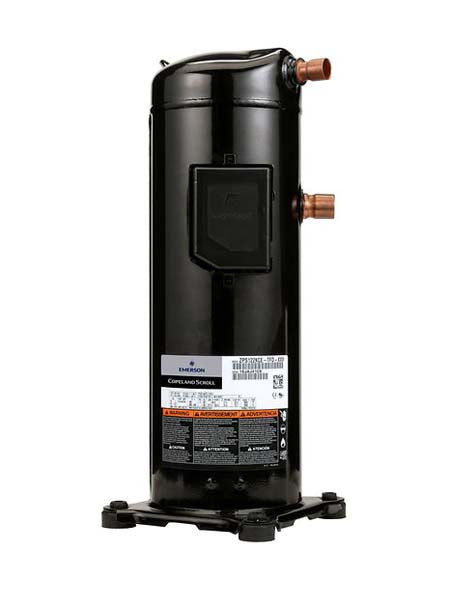

Copeland ZR81KCETFD Scroll ZR81KCE TFD 6.8 HP

Product Description

The COPELAND ZR81KCETFD Scroll Compressor is designed for air conditioning applications, operating efficiently with R407C refrigerant. This 6.8 nominal horsepower unit delivers a cooling capacity of 63,500 BTU/h (18,600 W) and operates on a 380-420V, 3-phase, 50Hz power supply. It features a displacement of 107.8 cc/Rev. and an EER of 10.8 Btu/Wh, ensuring effective cooling performance for various systems.

• Optimized for R407C refrigerant in air conditioning systems.
• Operates on 380-420V, 3-phase, 50Hz power with 6.8 nominal HP.
• Provides a cooling capacity of 63,500 BTU/h (18,600 W).

Product Highlights

Efficient 6.8 HP scroll compressor for 3-phase air conditioning systems using R407C refrigerant.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR81KCETFD

Technical Specifications

• Refrigerant Type: R407C
• EER: 10.8 Btu/Wh
• Cooling Capacity (BTU/h): 63,500
• Input Voltage: 380-420V 50Hz
• Phase: 3
• Application: Air conditioning
• Nominal Horsepower: 6.8 HP
• Cooling Capacity (W): 18,600
• Input Power: 5,900 W
• Input Current: 10.9 A
• COP: 3.17 W/W
• Displacement: 107.8 cc/Rev
• Oil Quantity: 1.77 l
• Locked Rotor Amps (LRA): 101.0 A
• Sound Pressure Level: 61.0 dBA
