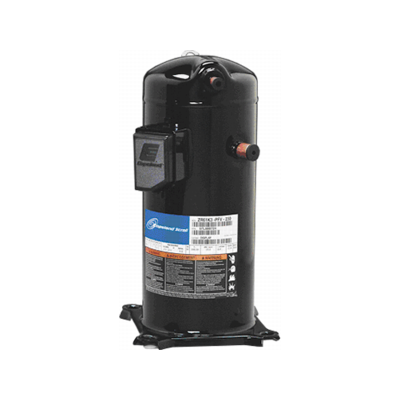

Copeland zr72kcetf5 r22 scroll compressor 73,500 btu 6.1 ton zr72kce-tf5-965

Product Description

The COPELAND ZR72KCETF5 is an R22 scroll compressor designed for HVAC/R applications, offering higher efficiency and lower sound levels. This 6.1-ton unit provides 73,500 BTU/HR capacity and operates on 208/230V 3-phase power. It features 7/8" ODF suction and 1/2" ODF discharge connections, with a 7-1/2" x 7-1/2" mounting base. Engineered for superior durability and reliability, it is a cost-effective solution for systems requiring a broad range of evaporating capability.

• Higher efficiency and lower sound levels for optimal performance
• Superior durability and unsurpassed reliability in operation
• Cost-effective solution for various HVAC/R applications

Product Highlights

Engineered for high efficiency and durability in HVAC/R systems.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR72KCETF5

Technical Specifications

• Input Voltage: 208/230V
• Application: HVAC/R Applications
• Power Source: Corded Electric
• Capacity (Tons): 6.13
• Capacity (BTU/HR): 73,500
• Refrigerant: R-22, R-134a, R-407C
• Phase: 3
• Connection Size: 7/8" ODF Suction / 1/2" ODF Discharge
• Mounting Base: 7-1/2" x 7-1/2"
• Model Number: ZR72KCE-TF5-965
• Model Name: ZR72KCE
• Manufacturer: Copeland - Emerson
• Body Type: ZR
• Frequency: 60Hz
• Series: Compliant Scroll
• Temperature Rating: A/C
