Product Description

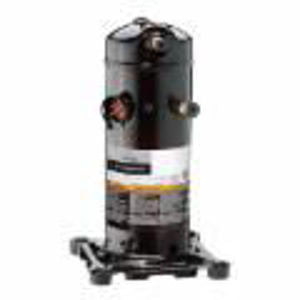

The Copeland Scroll Compressor, model ZR61K3E-TFD-950, offers a cooling capacity of sixty-two thousand BTU per hour. This unit operates efficiently with R-22, R-134A, and R-407C refrigerants. It has a power rating of five thousand three hundred fifty watts, voltage of four hundred sixty volts, and works on a sixty hertz, three-phase power supply. The amperage rating is seven point eight amps.
- Compact design with fewer moving parts for reliability
- Quieter operation due to simplified internal structure
- Designed for efficient use with modern refrigerants
Product Highlights
Designed for air conditioning applications, this compressor ensures easy servicing and maintenance with its lightweight construction. It operates efficiently in various conditions while providing protection against liquid refrigerant damage.
Product Information
Standard Information
-
Manufacturer: Copeland
-
Model Number: ZR61K3E-TFD-950
Technical Specifications
-
Cooling Capacity: 62000 BtuH
-
Power Rating: 5350 W
-
Voltage Rating: 460 V, 60 Hz, 3 Phase
-
Amperage Rating: 7.8 A
-
Sound Level: 74 dBA
-
Suction Line Size: 7/8 Inch Stub
-
Discharge Line Size: 1/2 Inch Stub
-
Compressor Oil: POE
-
EER Rating: 11.6
-
Mounting Type: 7-1/2 Inch L x 7-1/2 Inch W x 17.99 Inch H
-
Dimensions: 9.69 Inch L x 9.69 Inch W x 17.24 Inch H
-
Refrigerant Type: R-22, R-134A, R-407C
-
Start Resistance: 2.75 ohms
