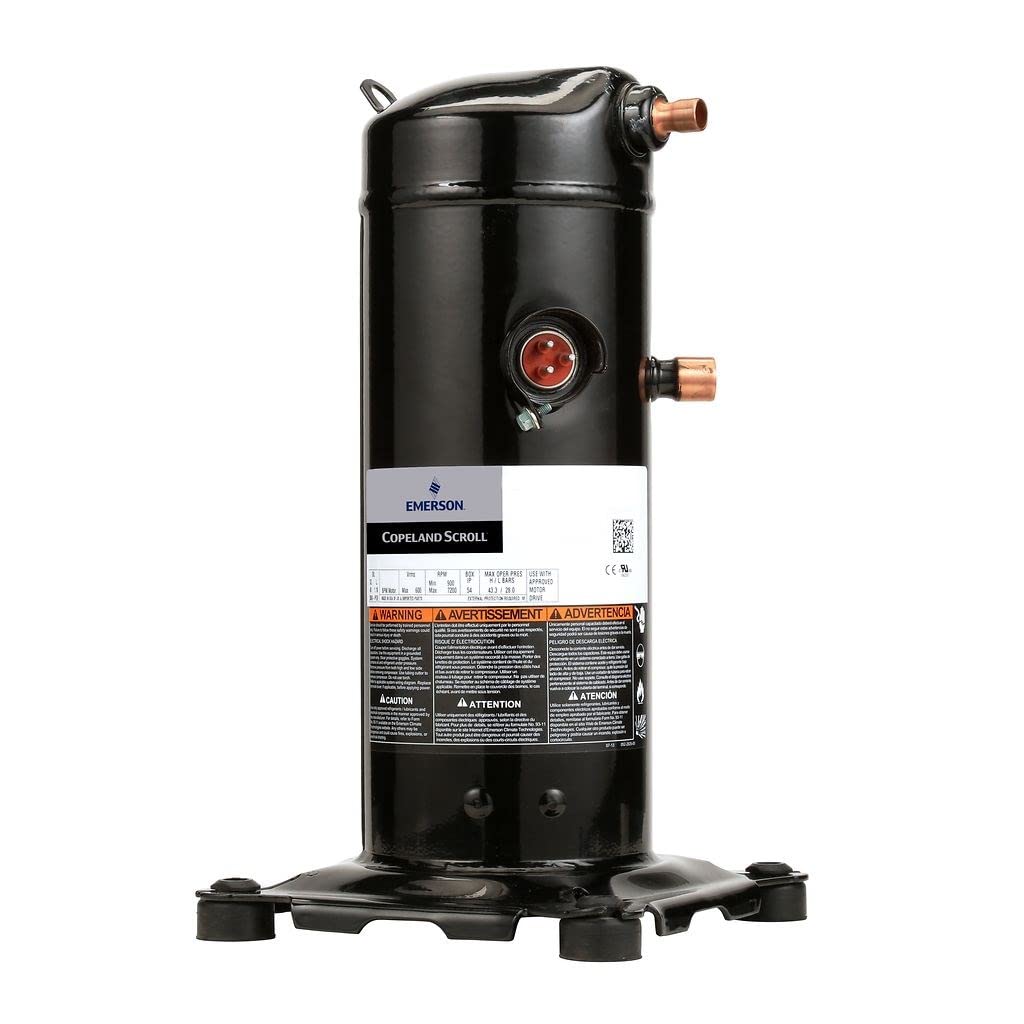

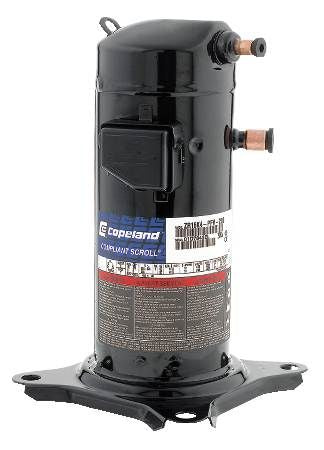

Copeland ZR61K3E-TF5-950 R22 Scroll Compressor 5 Ton (208/230/3 Ph) ZR61K3ETF5950

Product Description

Copeland ZR61K3E-TF5-950 is a 5-ton R22 scroll compressor rated for 208/230 V three-phase operation with an approximate capacity of 62,000 BTU. The unit is a hermetic scroll design intended for heavy-duty HVAC applications and packaged rooftop units, with a robust construction indicated by a listed item weight of 400 pounds and product dimensions of 14.25 x 13.25 x 20 inches.

• 5-ton nominal capacity, approximately 62,000 BTU; designed for R22 service
• Electrical rating 208/230 V, three-phase for commercial HVAC systems
• Scroll hermetic compressor with 7/8" suction and 1/2" discharge connections

Product Highlights

5-ton Copeland R22 scroll compressor; 208/230 V three-phase; ~62,000 BTU capacity; 7/8" suction x 1/2" discharge; model ZR61K3E-TF5-950

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZR61K3E-TF5-950
• Country of Origin: USA

Technical Specifications

• Brand: Copeland
• Manufacturer Part Number: ZR61K3E-TF5-950
• Product Type: Scroll compressor
• Refrigerant: R22
• Capacity (BTU/hr): 62,000
• Tonnage: 5 Ton
• Input Voltage: 208/230 Volts
• Phase: 3 Phase
• Rated Load Current (RLA): 19.3 A
• Locked Rotor Amps (LRA): 137 A
• Oil Type: Polyolester (POE)
• Initial Oil Charge: 66 oz
• Suction Connection Size: 7/8 inch
• Discharge Connection Size: 1/2 inch
• Mounting Dimensions: 7.5 x 7.5 inches
• Dimensions (L x W x H): 14.25 x 13.25 x 20 inches
• Weight: 400 Pounds
• Compressor Housing: Hermetic
• Applications: Commercial and packaged rooftop HVAC units
• Sound Level (dBA): 74-79 dBA
• Country of Origin: USA
• Replacement MPNs / Cross Reference: ZR61K3ETF5950
